Lumineux Leighton 14W Manual

Leighton
Bollards

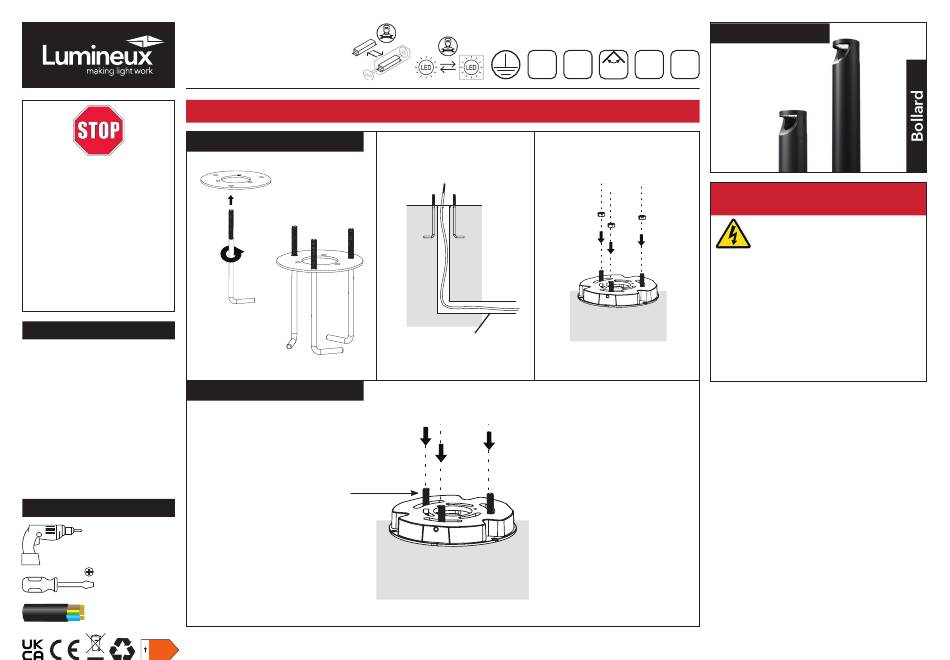

GROUND FIXING - (OPTION 1)
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
BOX CONTENTS
This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
GROUND FIXING - (OPTION 2)
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components.
• Light Head / Post
• Instruction Manual
• Post Mount Kit (with Post)
• Fixing Kit (with Post)
TOOLS REQUIRED
• Drill
• Screwdriver
• Cable
A
F F Manby Business Park, Manby, Lincolnshire, LN11 8UT
Lumineux is a B&T Associates Ltd company.
G
INSTALLATION INSTRUCTIONS
Suggested concrete size:
250mm x 250mm x 300mm
Hole diameter Ø30- 55mm
M8 Anchor bolts
(not supplied)
Technical Helpline: +44 (0)1507 328031
14W & 24W
80 5 YR
IK10
IP66
110º
Lm/W Warranty
Fitting the Head
to the Post - See overleaf
Leighton
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING: Risk of electric shock! Isolate
the mains power before proceeding.
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
Ground Fixing - Option 1
Screw all 3 anchors provided into the base
fi xing plate
Concrete fi xing plate into ground ensuring
supply cable is directed through the
centre hole
Secure the base using M8 nuts provided
Ground Fixing - Option 2
Direct cable through centre hole of base plate
Mark and drill holes as required
Secure using suitable M8 Anchor bolts or resin
fi xings (not supplied)
www.lumineux.co.uk
