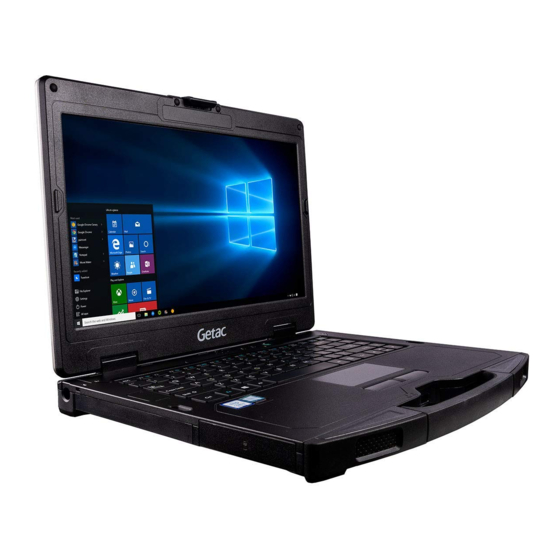

Getac S410-G4
Self-Maintenance Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the S410-G4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Getac S410-G4

Summary of Contents for Getac S410-G4

  • Page 1 Getac S410-G4 Self-Maintenance Manual...

  • Page 2: Table Of Contents

    Content Handle (P/N 344876800018) Side door (P/N 340876800006) Rear door (P/N 340876800007) Main SSD canister (P/N 581191770002) Keyboard (P/N 531091770001) ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

  • Page 3: Handle (P/N 344876800018)

    1. Remove the four screws (342830700019), then remove the cover. 2. Remove the Handle. To install: Reverse the removal procedure to install the new part. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

  • Page 4: Side Door (P/N 340876800006)

    1. Remove the four screws (371102010066) that secure the door to S410G4. 2. Detach the door from S410G4. To install: Reverse the removal procedure to install the new part. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

  • Page 5: Rear Door (P/N 340876800007)

    1. Remove the three screws (371102010066) that secure the door to S410G4. 2. Detach the door from S410G4. To install: Reverse the removal procedure to install the new part. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

  • Page 6: Main Ssd Canister (P/N 581191770002)

    1. Remove one screw (370102010421), and then remove the SSD canister. 2. Remove one screw (371102010432), and then remove the cover., you can find below parts. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 7 Main SSD canister (P/N 581191770002) 3. Paste the Mylar onto the new SSD. 4. Paste the thermal pad onto the other side of the SSD. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 8 5. Insert the SSD into the connector. 6. Assemble the SSD cover and fix the cover using the one screw (371102010432). Attention: The hook needs to be clamped tightly. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 9 Main SSD canister (P/N 581191770002) 7. Paste the Mylar onto the SSD canister. Attention ： You can choose if you want to paste this Mylar or not. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

  • Page 10: Keyboard (P/N 531091770001)

    1. Remove two screws (371102010432) lock the keyboard cover. 2. Remove seven screws (371102010432) lock the keyboard cover and hinge cover. Then remove the keyboard cover and hinge cover. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 11 3. Remove two screws (371102010432) lock the keyboard cover. 4. Remove four screws (370102010416) lock the keyboard bracket cover, then remove the keyboard bracket cover. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 12 Keyboard (P/N 531091770001) 5. Disconnect the keyboard FPC, then remove the keyboard. To install: Reverse the removal procedure to install the new part. ｜ Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
  • Page 13 THANK YOU FOR YOUR ATTENTION THANK YOU FOR YOUR ATTENTION Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
