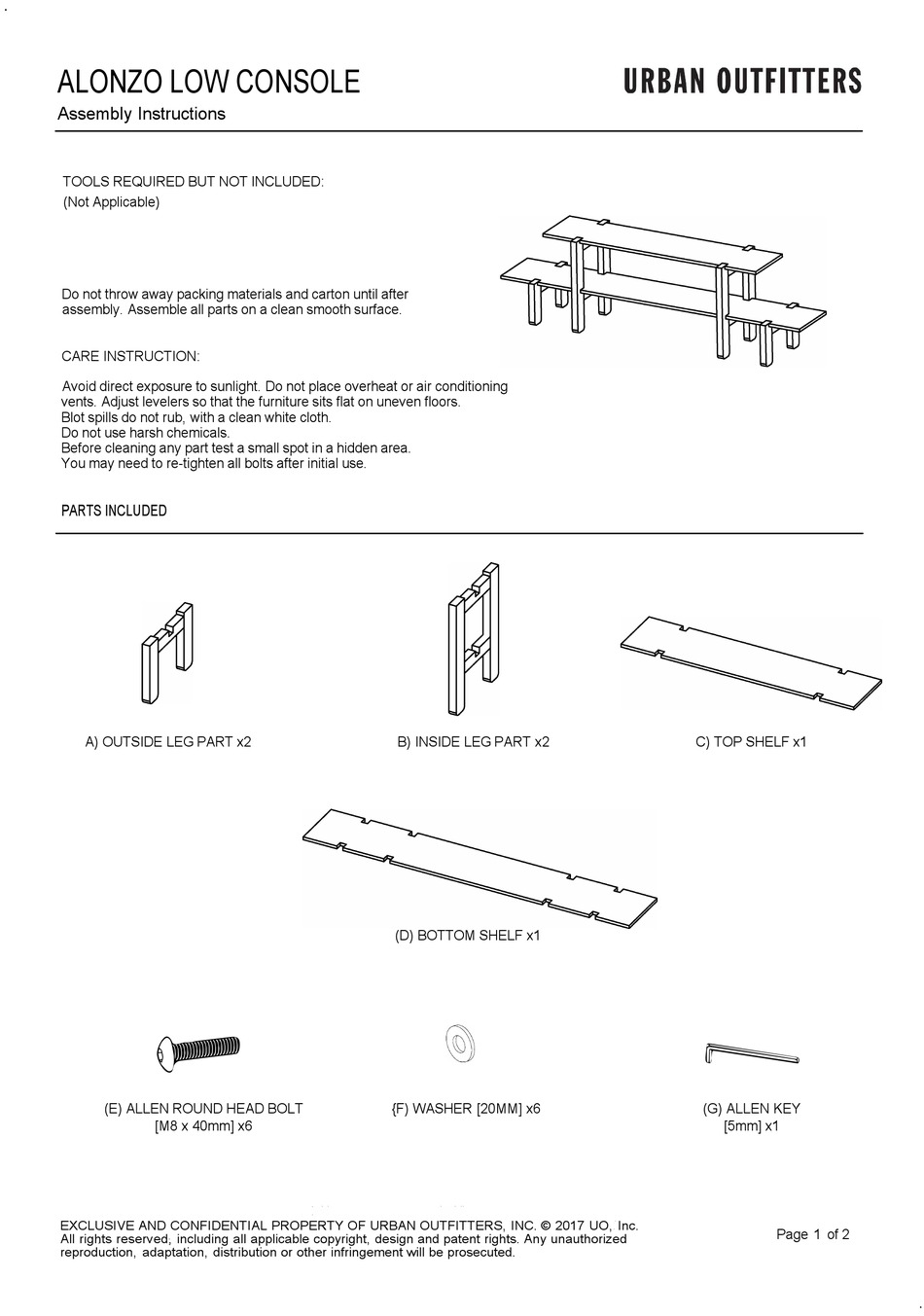

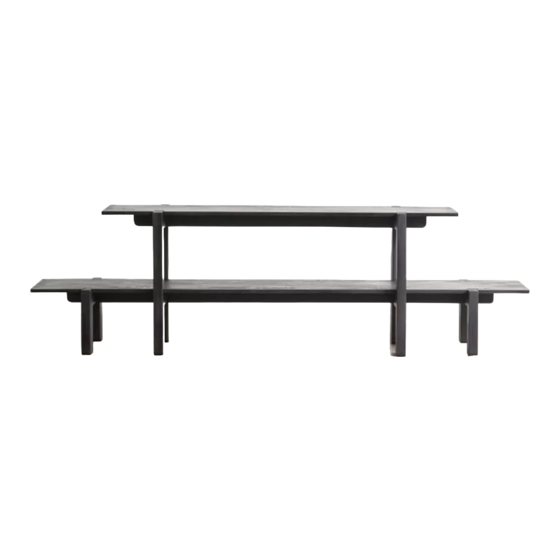

ALONZO LOW CONSOLE
Assembly Instructions
TOOLS REQUIRED BUT NOT INCLUDED:
(Not Applicable)
Do not throw away packing materials and carton until after
assembly. Assemble all parts on a clean smooth surface.
CARE INSTRUCTION:
Avoid direct exposure to sunlight. Do not place overheat or air conditioning
vents. Adjust levelers so that the furniture sits flat on uneven floors.
Blot spills do not rub, with a clean white cloth.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.
PARTS INCLUDED
A) OUTSIDE LEG PART x2
0-
(E) ALLEN R OUND HEAD BOLT
[M8 x 40mm] x6
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc.
All rights reserved, including all applicable copyright, design and patent rights. Any unauthorized
reproduction, adaptation, distribution or other infringement will be prosecuted.
B) INSIDE LEG PART x2
(D) BOTTOM SHELF x1
{F) WASHER [20MM] x6
C) TOP SHELF x1
�
(G) ALLEN KEY
[5mm] x1
Page 1 of 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for URBAN OUTFITTERS ALONZO 69501260
Summary of Contents for URBAN OUTFITTERS ALONZO 69501260
- Page 1 (G) ALLEN KEY [M8 x 40mm] x6 [5mm] x1 EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. Page 1 of 2 All rights reserved, including all applicable copyright, design and patent rights. Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
- Page 2 INTO LEGS. TIGHTEN USING ALLEN KEY(G). REPEAT FOR TOP SHELF. FINAL EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights. Any unauthorized Page 2 of 2...
