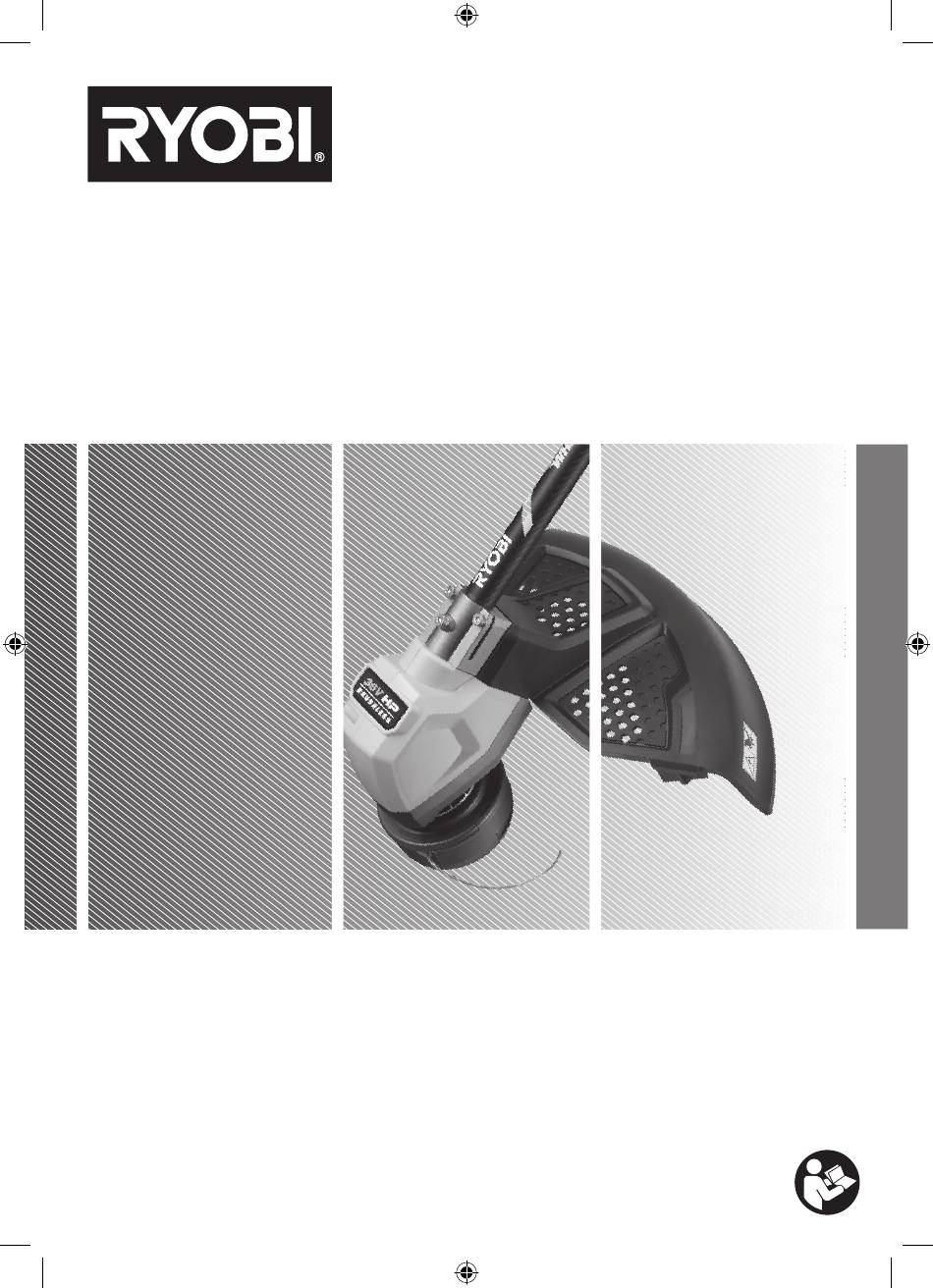

  • Page 1 R36XLTR10 R36XLTR26...

  • Page 2: Intended Use

    ■ When operating a power tool outdoors, use an extension IMPORTANT! cord suitable for outdoor use. Use of a cord suitable for It is essential that you read the instructions in this manual outdoor use reduces the risk of electric shock. before assembling, operating, and maintaining the ■...

  • Page 3: Line Trimmer Safety Warnings

    of parts and any other condition that may affect the ■ Thoroughly inspect the area where the machine is to power tool’s operation. If damaged, have the power be used and remove all stones, sticks, wires, bones, tool repaired before use. Many accidents are caused by and other foreign objects.

  • Page 4: Additional Safety Warnings

    certain industrial chemicals, and bleach or bleach-containing ADDITIONAL SAFETY WARNINGS products, etc., can cause a short circuit. ■ Before use and after any impact, check that there are no ■ Charge the battery pack in a location where the ambient damaged parts on the product.

  • Page 5: Symbols On The Product

    ■ Check all nuts, bolts, and screws before each use and Regulatory Compliance Mark (RCM). at frequent intervals for proper tightness to ensure that Product meets applicable regulatory the product is in safe working condition. Any part that is requirements. damaged should be properly repaired or replaced by an authorised service centre.
  • Page 6 R36XLTR10 Battery port Rear handle On/off trigger Lock-out trigger Speed selector Upper shaft Speed winder Front handle Lower shaft Safety guard Cut-off blade Bolt Hex screw Cutting line String head Operator’s manual R36XLTR26 Lock pin Hex key Battery pack Charger...
  • Page 7 Always wear safety goggles or safety Install the safety guard to the trimmer Install hex screws to hold the safety glasses with side shields when head. guard in place. Turn the hex screws operating the product. Wear non-slip, clockwise to tighten and secure the heavy-duty protective gloves.
  • Page 8 Operating the product Storing the product p.17 Adjusting the Replacing the Cleaning the Replacing the p.12 p.13 p.15 p.16 cutting line product cutting line string head 38 cm 43 cm...

  • Page 9: Operating The Product

    OPERATING THE PRODUCT WARNING: For safety reasons, the product must be adequately controlled by a two- handed operation. Hold the product with the right hand on the rear handle and the left hand on the front handle. WARNING: Consider the environment in which you are working.
  • Page 10 3. Press and hold the lock-out trigger, and squeeze the on/off trigger to turn on the product. 4. Tap the bump knob on the ground to advance the line. The line advances each time the head is tapped. Do not hold the bump knob onto the ground.
  • Page 11 NOTE: Cut tall grass from the top down. This prevents grass from wrapping around the shaft housing and bump head, which may cause damage from overheating. NOTE: Cut grass from the right side to the left side for cutting ease and safety. Operation...

  • Page 12: Adjusting The Cutting Line

    38 cm 43 cm ADJUSTING THE CUTTING LINE 1. Press the battery latch and remove the battery pack. 2. Place the product on a level surface. Position the product with the motor side down and the blade guard side up. 3.

  • Page 13: Replacing The Cutting Line

    REPLACING THE CUTTING LINE 1. Press the battery latch and remove the battery pack. 2. Place the product on a level surface. Position the product with the motor side down and the blade guard side up. 3. Rotate the bump knob on the string head until the line on the centre of the bump knob aligns with the arrows on the outer spool.
  • Page 14 NOTE: Wind the line until approximately 12 cm remains protruding from the trimmer head. 6. Insert the battery pack until the latch clicks into place. 7. Press and hold the lock-out trigger, and squeeze the on/off trigger to turn on the product.
  • Page 15 REPLACING THE STRING HEAD 1. Press the battery latch and remove the battery pack. 2. Place the product on a level surface. Position the product with the motor side down and the blade guard side up. 3. Align the slot on the string head assembly and string head, and insert the lock pin.

  • Page 16: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the battery latch and remove the battery pack. 2. Place the product on a level surface. Position the product with the motor side down and the blade guard side up. WARNING: The small blade fitted to the safety guard is designed to trim the newly extended line to the correct length for safe and optimum performance.

  • Page 17: Storing The Product

    STORING THE PRODUCT NOTE: Clean the product before storing it. 1. Press the battery latch and remove the battery pack. 2. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts.

  • Page 18: Product Specifications

    Compatible battery BPL3612D, R36BTY2, R36BTY4, packs R36BTY5, R36BTY6, R36BTY8, R36BTY12 REPLACEMENT PARTS Replacement head RAC1214 Replacement bump knob 530455002 Replacement 2.4 mm trimming line RLTS3 NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.
  • Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961479074-02...
