Summary of Contents for Ryobi RLT254FCDSN

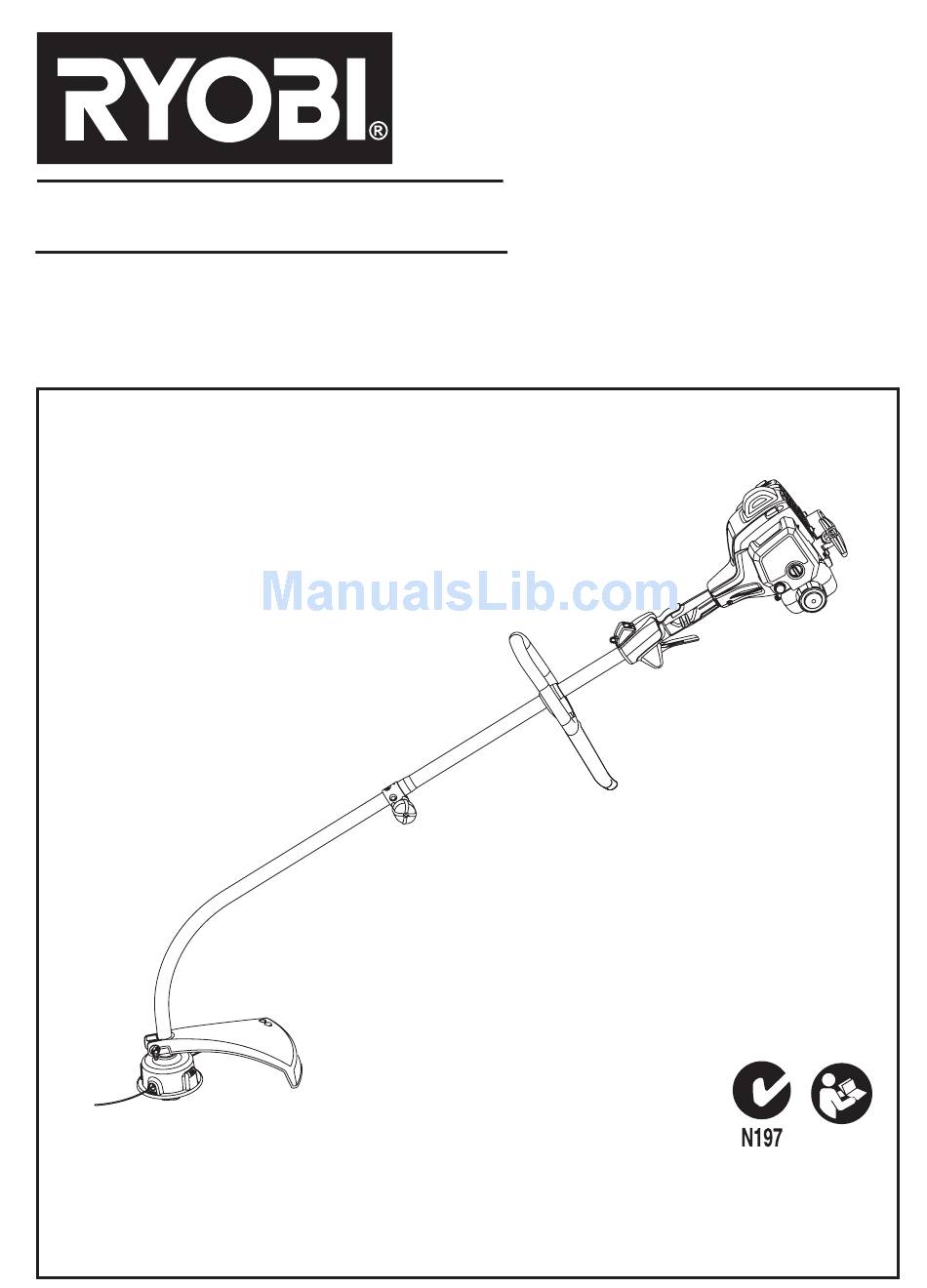

- Page 1 RLT254FCDSN TRIMMER OPERATOR’S MANUAL (Original Instructions) Important! It is essential you read the instructions in this manual before starting, operating and maintaining this machine. Subject to technical modifi cations.
-
Page 2: General Safety Warnings
English (Original Instructions) GENERAL SAFETY WARNINGS engine and the cutting attachment. ■ Dangerous Environments. To avoid falling, do not WARNING use the product in damp or wet locations. ■ Controlling the Product. During choke adjustments Read and understand all instructions. Failure to the cutting attachment may spin. -
Page 3: Specifications
English (Original Instructions) Use unleaded petrol intended for motor Cutting swath 432 mm vehicle use with an octane rating of 91 [(R Diameter of cutting line 2.4 mm and 2.7 mm + M)/2] or higher. This product is powered by a 2-stroke engine and requires pre- Engine displacement 25.4 cc mixing petrol and 2-stroke lubricant. -
Page 4: Attaching Power Head To Trimmer Attachment
English (Original Instructions) 37. 2cm Protruding line - Equivalent 107.5 dB(A) FIGURE 9 Uncertainty 2.5 dB(A) 20. Foam air fi lter 21. Air fi lter cover DESCRIPTION 22. Cover securing knob FIGURE 1 FIGURE 10 1. Upper shaft 23. Spark plug boot 2. -
Page 5: Installing Line Trimmer Head
(image 6) And watch the video; ■ Insert one end of line into eyelet located on the side RYOBI: How to install trimming line on a Pro-Cut II™ head... -
Page 6: Operation
English (Original Instructions) OPERATION Note: It is normal for smoke to be emitted from a new engine during and after fi rst use. FUEL AND REFUELING WARNING Handling the fuel safely Always shut off engine before fueling. Never add fuel to Always handle fuel with care, it is highly flammable. -
Page 7: Maintenance
English (Original Instructions) NOTE: If engine does not start, return to step 4 and repeat OPERATING THE TRIMMER (FIG. 6) the steps. Follow these steps to operate the curved shaft trimmer. NOTE: When the engine starts, let it run for 30 seconds ■... -
Page 8: Cleaning Air Filter/Spark Arrestor
English (Original Instructions) CHECKING THE FUEL CAP WARNING Neglected or poorly conducted maintenance may WARNING create additional hazards. Do not attempt to repair or A leaking fuel cap is a fi re hazard and must be replaced maintain this product if you are not qualifi ed to do so. immediately. - Page 9 English (Original Instructions) ■ Run the engine until it stops. ■ Clean all foreign material from the product. ■ Store the product in a well-ventilated place that is inaccessible to children. Note: Keep the product away from corrosive agents such as garden chemicals. Important: Abide by all local and government regulations for the safe storage and handling of petrol.
-
Page 10: Troubleshooting
English (Original Instructions) TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION 1. Switch set to the O (OFF) position. 1. Set switch to the I (ON) position. 2. No spark. 2. Remove the spark plug. Reattach the spark plug cap and lay the spark plug on the metal cylinder. Pull the starter cord and watch for a spark at the spark plug tip. - Page 11 Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster Road Doncaster, VIC 3108, Australia Techtronic Industries New Zealand Ltd. 18-26 Amelia Earhart Avenue Mangere, Auckland 2022, New Zealand 960710006-01 20130801v1...
