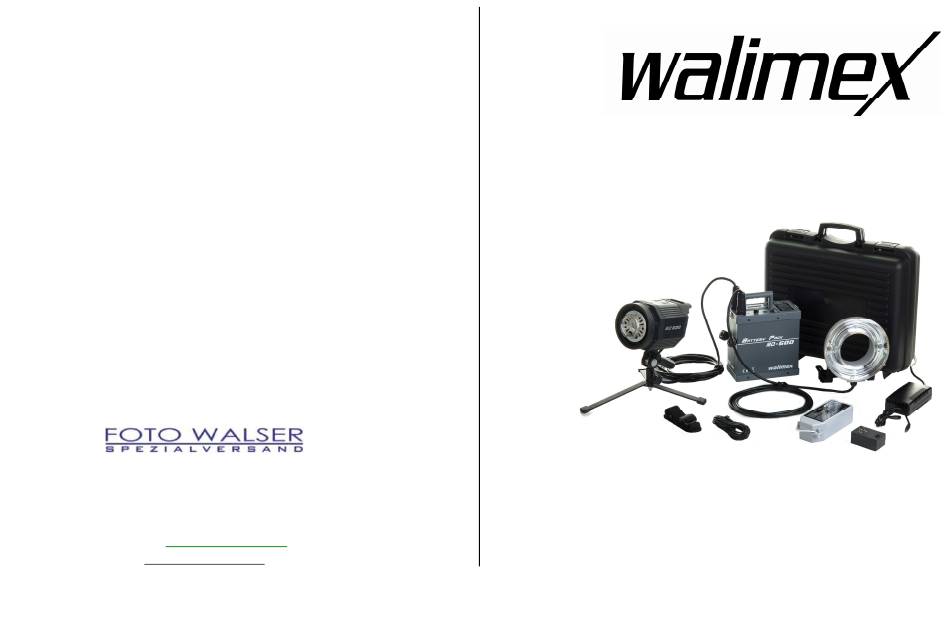

- Page 1 Copy of Instruction Manual Gewerbering 26 86666 Burgheim Tel. +49 84 32 / 9489-0 Battery Pack RD-600, Fax. +49 84 32 / 9489 - 8333 Ring Flash RD-600, Flash Light RD-600 eMail: info@foto-walser.de www.foto-walser.de...
-
Page 2: Table Of Contents
Content Thank you very much for your confidence. We wish you much pleasure and success with your new device. The walimex RD-600 series is especially How to understand this instruction manual ........3 1.1.Markings on the device ..............3 developed for ambitious beginners and professional users. -
Page 3: Markings In This Manual
1.2. Markings in this manual The modeling lamp, the flash tube and the reflector can heat up up to 240°C. Marking Meaning − Make sure, that the device is always positioned tilt and skid resistant and stored securely. Indicates the handling and consequences of safety −... - Page 4 − Don´t operate the device with wet hand or feet. WARNING − Please only follow this instruction manual for cleaning the device. Fire danger through hot parts The modeling lamp and the flash tube can heat up up to 240°C, the reflector −...
-
Page 5: Unpack And Check The Device
• walimex Flash Light RD-600 WARNING o 1 Flash Light The RD-600 includes a rechargeable NI-MH battery. Please follow the o 1 Protection Cap safety notes in the manual and on the battery. o Instruction Manual − Keep Battery Pack away from children. -
Page 6: Overview About The Parts Of Walimex Flash Light Rd-600
Quick-start guide 4.2. Overview about the parts of walimex Flash Light RD-600 ADVICE: The detailed instruction for the following operations can be found in the respective chapters in this instruction manual. Flash light Keep the sequences of the following operation steps when using the device Fuse holder for the first time to avoid damages. -
Page 7: Flash Light Rd-600
6.2. Flash Light RD-600 Battery Mount and demount protection cap/reflector: Battery Pack WARNING Battery Posterior danger of bursting of flash tube Make sure not to touch the flash tube with bare hands accidentally. Adapter for battery WARNING! Danger of burning on reflector, modeling lamp and flash tube. -
Page 8: Ring Flash Rd-600
• Mount the device on the tripod. • Tighten the fastening screw. Connect to power supply 6.3. Ring Flash RD-600 Plug for flash devices Fastening screw for height adjustment Protection cap for plugs Fastening screw for depth adjustment Fastening screw for tripod and camera mounting •... -
Page 9: Switch The Device On And Off
• 9.2. Prepare and adjust flash trigger Insert the connection cable of the device and screw it on. Prepare flash trigger through camera ADVICE: Switch the device on and off Please note the user information from the camera manufacturer concerning flash synchronization. -
Page 10: Solve Problems
• Let the device cool down completely. 13. Maintenance WARNING! Fire danger through hot parts. Let the device cool down 13.1. Continuous inspections completely. • Demount reflector and all connection cables. What you should do? Before every • Clean the device if necessary. See Cleaning. operation •... -
Page 11: Accessories And Options
Remove dirt with microfiber cloth screwdriver clockwise. 14. Accessories and options 13.3. Change micro-fuse You can find extensive accessories for your walimex pro device in our WARNING webshop. Danger of electric shock and fire through short-circuit A micro-fuse, which is not conform with the required specifications, doesn´t protect against the overloading of the device. -
Page 12: Technical Specifications
Operating Voltage DC 24V Inner Diameter approx. 10cm Charging Voltage 220-240V Outer Diameter approx. 19cm Output 1/1 to 1/8 Power Supply through Battery Pack RD-600 Fuse Weight approx. 1100g Connection 4-Pin Material plastic, metal Flash Releases up to approx. 190 Weight approx.
