Bticino 346310 Manual

2 WIRE switchboard
Description

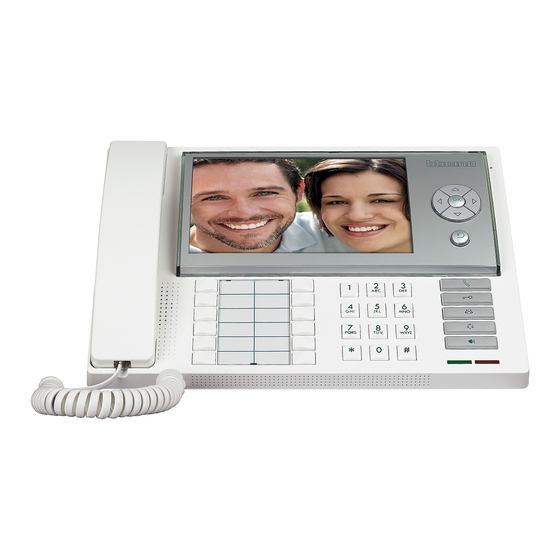

Switchboard for 2 WIRE audio and video systems Allows access to various services
(video door entry functions, door lock/staircase light management and apartment
alarm monitoring) directly from the keypad or via the intuitive icon menu. The
switchboard is supplied with an integrated table supporting frame and also features
a 7" colour LCD display, receiver and speaker phone, dedicated keys for the main
functions and keys which can be configured. The programming can be carried out
directly from the device or via PC with TiSwitchBoardDevice software (supplied). The
device can manage the phonics of the riser EP (i.e. wired downstream of interface
346851); it cannot however manage the apartment EP (i.e. wired downstream of
interface 346850). The use of an additional power supply is recommended.
It is possible to connect up to a max. of 16 switchboards (configured from 0 to 15).
WARNING: the switchboard cannot be used in systems with 2 WIRE-IP interface
346890. The new HIERARCHICAL mode is available only with the entrance panels
of the following series: Sfera New, Linea 100, Minisfera, Linea 300.
Also check that:
351000 production week =/> 16W18
351100, 351200 & 351300 Firmware =/> 01.02.31
346851 production week =/> 16W28
Related items
336982 LIVINGLIGHT white series 8 pole socket for table-top installation of the
switchboard
336803 (8 poles - frayed) cable for table-top installation of the switchboard
346020 2 DIN additional power supply
Technical data
Power supply from SCS BUS:
Absorptions from BUS (without additional supply):
- stand by absorption:
- max. operating absorption:
Absorptions from BUS (with additional supply):
- stand by absorption:
- max. operating absorption:
Operating temperature:
Relay contact output:
Dimensional data
290 mm
170 mm
170 mm
Front view
19 – 27 Vdc
Legend
1. Handset
35 mA
2. 7" colour LCD display for the displaying of the user and programming menu
450 mA
and of the images recorded by the entrance panel or cameras
5 mA
3. Microphone
20 mA
4. Navigation keypad. It enables navigating through the menus, with the pos-
5 - 40 °C
sibility of confirming the selection (OK key)
24 Vac / 24 Vdc
5. Cancel key
3 A, cosφ = 1
6. Direct call key
7. Door lock release key
8. Directory access key
9. Entrance panel and camera cycling activation key
10. Handsfree key
11. Alarm given indication LED
12. Operating status notification LED:
210 mm
LED ON (fixed)= device in stand-by
LED ON (flashing quickly) = call active
LED ON (flashing slowly) = conversation active
13.Alphanumeric keypad
14. Keypad + legend of configurable functions
15. Loudspeaker
BT00680-c- EN 03/10/2016
2 WIRE Video Door Entry system
1 2
15 14
346310
3
4
5
6
7
8
9
10
13 12 11
1
