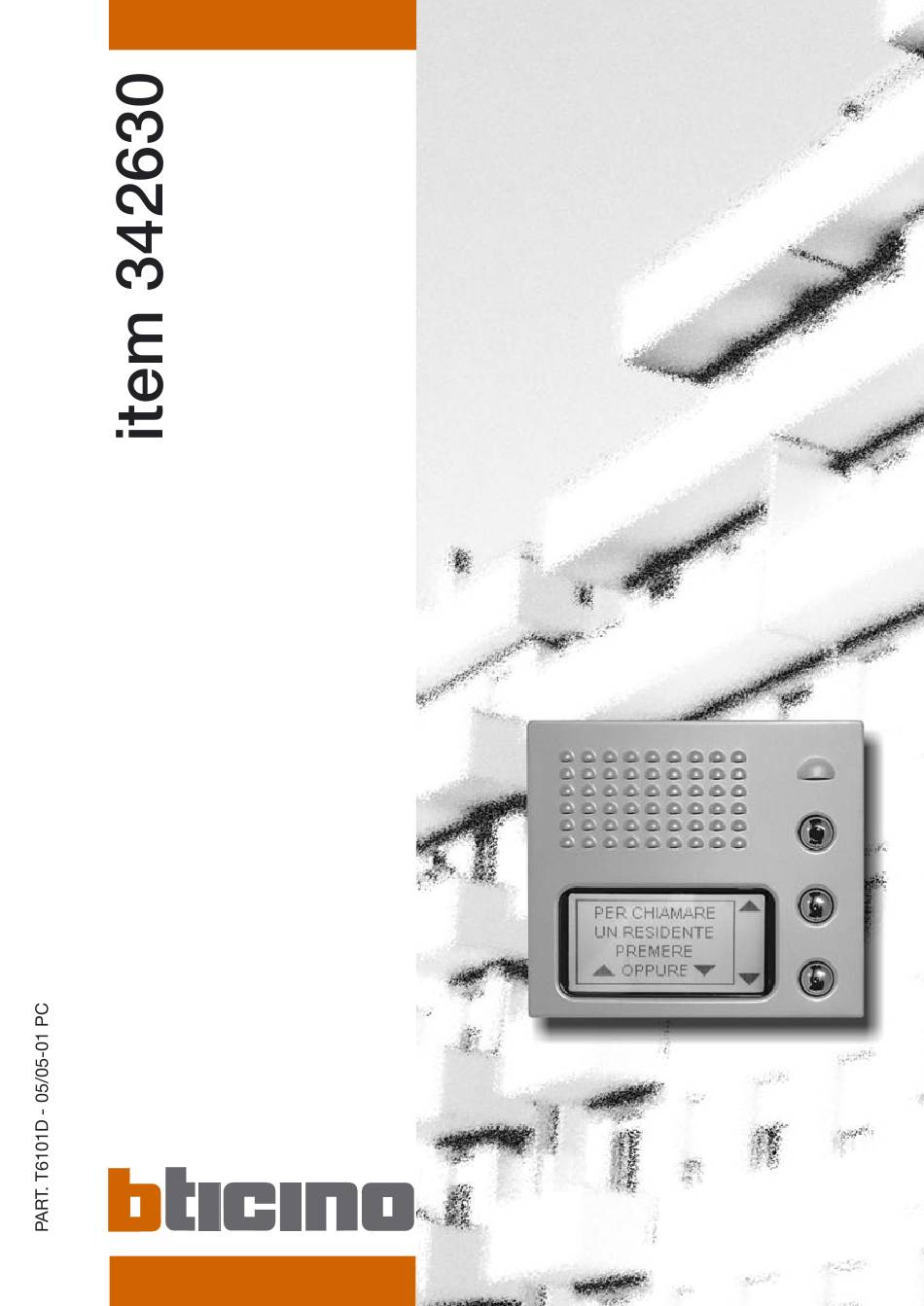

- Page 1 Instruction sheet...
-
Page 3: Table Of Contents
CONTENTS Sommario INTRODUCTION _______________________________________________________________ 4 Warnings and tips ______________________________________________________________ 4 General description _____________________________________________________________ 4 Graphic display _________________________________________________________________ 5 Pushbuttons and their functions __________________________________________________ 5 Factory configuration ____________________________________________________________ 6 Reset factory configuration ______________________________________________________ 6 USE __________________________________________________________________________ 7 Looking for a resident whose name you know ______________________________________ 7 Looking for a resident whose code you know ______________________________________ 8 EXTRA EXTERNAL DEVICES ___________________________________________________ 9 Extra keypad module ___________________________________________________________ 9... -
Page 4: Introduction
342630 INTRODUCTION WARNINGS AND TIPS Read this manual carefully before installing the module. The manufacturer declines all responsibility for any damage due to incorrect use and/or use which does not conform to the instructions in this manual. GENERAL DESCRIPTION The digital speaker module with backlit graphic display can send the call to an internal unit. -
Page 5: Graphic Display
INTRODUCTION GRAPHIC DISPLAY In the rest position the graphic distribution board display shows the screen to call a resident. TO CALL A RESIDENT PRESS When the call to the distribution board and direct screens are enabled, they are shown in succession and every ten seconds, alternating with the rest screen. TO CALL BIANCHI TO CALL... -
Page 6: Factory Configuration
342630 INTRODUCTION FACTORY CONFIGURATION Secret code 1234 Language Italian Address book format Alphanumeric without message Distribution board 4000 Disabled Direct call 0000 and 0001 Disabled Door code 1234, 1235, 1236, 1237 and 1238 Contrast Recall Disabled RESET FACTORY CONFIGURATION To reset the Factory configuration: •... -
Page 7: Use
LOOKING FOR A RESIDENT WHOSE NAME YOU KNOW To call a resident whose name you know: TO CALL A RESIDENT PRESS • Press a pushbutton to access the search; BIANCHI Mario TO CALL • scroll the address book until the name required appears on the display;... -
Page 8: Looking For A Resident Whose Code You Know
342630 LOOKING FOR A RESIDENT WHOSE CODE YOU KNOW To call a resident whose code you know: TO CALL A RESIDENT PRESS • Press a pushbutton to access the search; • Use the pushbuttons to select the Block, Floor... -
Page 9: Extra External Devices
EXTRA EXTERNAL DEVICES EXTRA KEYPAD MODULE TO CALL A RESIDENT PRESS The keypad module (item 342640) can: • Call directly the resident whose name is known (if ALPHANUMERIC has been set as Ad- dress book Format), keying in the MN address on the keypad. •... -
Page 10: Programming
CONFIGURATION 0000 item 342630 TO CONFIRM PROGRAMMING CONFIGURATION ACCESS TO THE PROGRAMMING Access to the Graphic Distribution board programming is protected by a Secret Code 1234 (Factory 1234). TO CONFIRM -CONFIGURATION- CONFIGURATION ADDRESS BOOK EXIT TO CALL Once in Programming mode one can select:... - Page 11 PROGRAMMING To access the programming: TO CALL • press the pushbutton for at least 10 seconds; A RESIDENT PRESS CONFIGURATION 0000 • use the pushbuttons to enter the secret code (e.g.:1234 Factory code); TO CONFIRM CONFIGURATION • press the pushbutton for at least 2 seconds to confirm;...
-
Page 12: Configuration Menu
342630 PROGRAMMING CONFIGURATION MENU -CONFIGURATION- PASSWORD LANGUAGE ADR.BOOK FORMAT SWITCHBOARD DIRECT CALL KEY CODE CONTRAST RECALL EXIT This menu can configure: • SECRET CODE – the secret programming access code. • LANGUAGE – the menu display language. • ADDRESS BOOK FORMAT – the address book format (alphanumeric/code). -
Page 13: Secret Code
PROGRAMMING SECRET CODE To modify the programming access code (Factory 1234): -CONFIGURATION- PASSWORD LANGUAGE • Select Secret Code; ADR.BOOK FORMAT -CONFIGURATION- • press the pushbutton to confirm; PASSWORD LANGUAGE ADR.BOOK FORMAT The secret code in use is shown on the display -PASSWORD- •... -
Page 14: Language
342630 PROGRAMMING LANGUAGE To modify the device language (Factory Italian): -CONFIGURATION- PASSWORD LANGUAGE • Select Language; ADR.BOOK FORMAT -CONFIGURATION- • press the pushbutton to confirm; PASSWORD LANGUAGE ADR.BOOK FORMAT The language in use is shown on the display -LANGUAGE- ITALIANO FRANÇAIS... -
Page 15: Address Book Format
PROGRAMMING ADDRESS BOOK FORMAT To modify the device address book format (Factory alphanumeric without message): -CONFIGURATION- PASSWORD LANGUAGE • Select Address book Format; ADR.BOOK FORMAT -CONFIGURATION- • press the pushbutton to confirm; PASSWORD LANGUAGE ADR.BOOK FORMAT The format in use is shown on the display -ADR.BOOK FORMAT- ALPHANUMERIC CODE... -
Page 16: Distribution Board
342630 PROGRAMMING DISTRIBUTION BOARD To enable the distribution board call screen: -CONFIGURATION- LANGUAGE ADR.BOOK FORMAT • Select Distribution board SWITCHBOARD -CONFIGURATION- • Press the pushbutton to confirm; LANGUAGE ADR.BOOK FORMAT SWITCHBOARD • Use the pushbuttons to select: -SWITCHBOARD- - Screen to enable/disable the distribution board... -
Page 17: Direct Call
PROGRAMMING DIRECT CALL To enable the direct call to two privileged extensions screen: -CONFIGURATION- ADR.BOOK FORMAT SWITCHBOARD • Select Direct call DIRECT CALL -CONFIGURATION- • press the pushbutton to confirm; ADR.BOOK FORMAT SWITCHBOARD DIRECT CALL • use the pushbuttons to select: -DIRECT CALL- - Screen to enable/disable the direct call to two privileged extensions screen (default: disabled) -
Page 18: Door Code
342630 PROGRAMMING DOOR CODE This function can program up to 5 different door-opening codes (Factory 1234, 1235, 1236, 1237 and 1238). To modify the door opening code: -CONFIGURATION- SWITCHBOARD DIRECT CALL • Select Door code; KEY CODE -CONFIGURATION- • press the pushbutton to confirm;... -
Page 19: Contrast
PROGRAMMING CONTRAST To modify the display contrast value (Factory – 70): -CONFIGURATION- DIRECT CALL KEY CODE • Select Contrast; CONTRAST -CONFIGURATION- • press the pushbutton to confirm; DIRECT CALL KEY CODE CONTRAST -CONTRAST- • use the pushbuttons to enter the new value (between 30 and 90);... -
Page 20: Recall
342630 PROGRAMMING RECALL To enable the display recall tone, 10 seconds for four times (Factory – disabled): -CONFIGURATION- KEY CODE CONTRAST • Select Recall; RECALL -CONFIGURATION- • press the pushbutton to confirm; KEY CODE CONTRAST RECALL -RECALL- DISABLE ENABLE •... -
Page 21: Address Book Menu
CONFIGURATION ADDRESS BOOK EXIT PROGRAMMING -CONFIGURATION- ADDRESS BOOK MENU CONFIGURATION ADDRESS BOOK In this menu new residents can be entered in the address book and the data entered can EXIT be modified or cancelled. -ADDRESS BOOK- MODIFY REMOVE The menus vary depending on whether Alphanumeric or Code has been set in the “Address book format”. - Page 22 342630 PROGRAMMING New (Alphanumeric) To enter a new resident in the address book: -ADDRESS BOOK- • Press the pushbutton to confirm; MODIFY REMOVE -NEW- • Use the pushbuttons to enter the new data: SURNAME: - SURNAME - NAME - MESSAGE (if Alphanumeric with message)
- Page 23 PROGRAMMING Modify (Alphanumeric) To modify the data of a resident in the address book: -ADDRESS BOOK- • Press the pushbutton to confirm; MODIFY REMOVE ALDO • use the pushbuttons to select the resident to be modified and confirm: TO CONFIRM •...
- Page 24 342630 PROGRAMMING Cancel (Alphanumeric) To cancel a resident from the address book: -ADDRESS BOOK- • Press the pushbutton to confirm; MODIFY REMOVE ALDO • use the pushbuttons to select the resident to be cancelled from the address book and TO CONFIRM confirm;...
- Page 25 PROGRAMMING New (Code) To enter a new resident in the address book: -ADDRESS BOOK- • Press the pushbutton to confirm; MODIFY REMOVE -NEW- • Use the pushbuttons to enter the new data: - B: Block number B: 00 - F: Floor number - I.U.: Extension number - MN ADDRESS -NEW-...
- Page 26 342630 PROGRAMMING Modify (Code) To modify the data of a new resident in the address book: -ADDRESS BOOK- • Press the pushbutton to confirm; MODIFY REMOVE • use the pushbuttons to select the resident data: B: 01 F: 02...
- Page 27 PROGRAMMING Cancel (Code) To cancel a new resident in the address book: -ADDRESS BOOK- • Press the pushbutton to confirm; MODIFY REMOVE • use the pushbuttons to select the resident data: B: 01 F: 02 - B: Block number - F: Floor number INTERNAL I.U.: 0008 - I.U.: Extension number TO CONFIRM...
-
Page 28: Ticall Software
342630 TICALL SOFTWARE The TiCall software can program all the parameters in the device configuration menu, using a PC with Microsoft operating system. The functions described above can be programmed when the device is already installed, by means of SCS bus, or before installation (just power the speaker module), connecting it to the PC RS232 port by means of the serial interface cable (item 335919). -
Page 29: Installation
INSTALLATION AUDIO 331110 331110 331120 342630 160 - 165 33266... 160 - 165 33121... 331120 VIDEO 342510 342550 33251... 331120 342630 160 - 165 33266... 33122... - Page 30 342630 INSTALLATION 18V/4A A = extra door lock pushbutton 18V/4A A = extra door lock pushbutton...
- Page 31 INSTALLATION 18V/4A A = extra door lock pushbutton...
- Page 32 BTicino s.p.a. Via Messina, 38 20154 Milano - Italia www.bticino.com...
