Installation Instructions

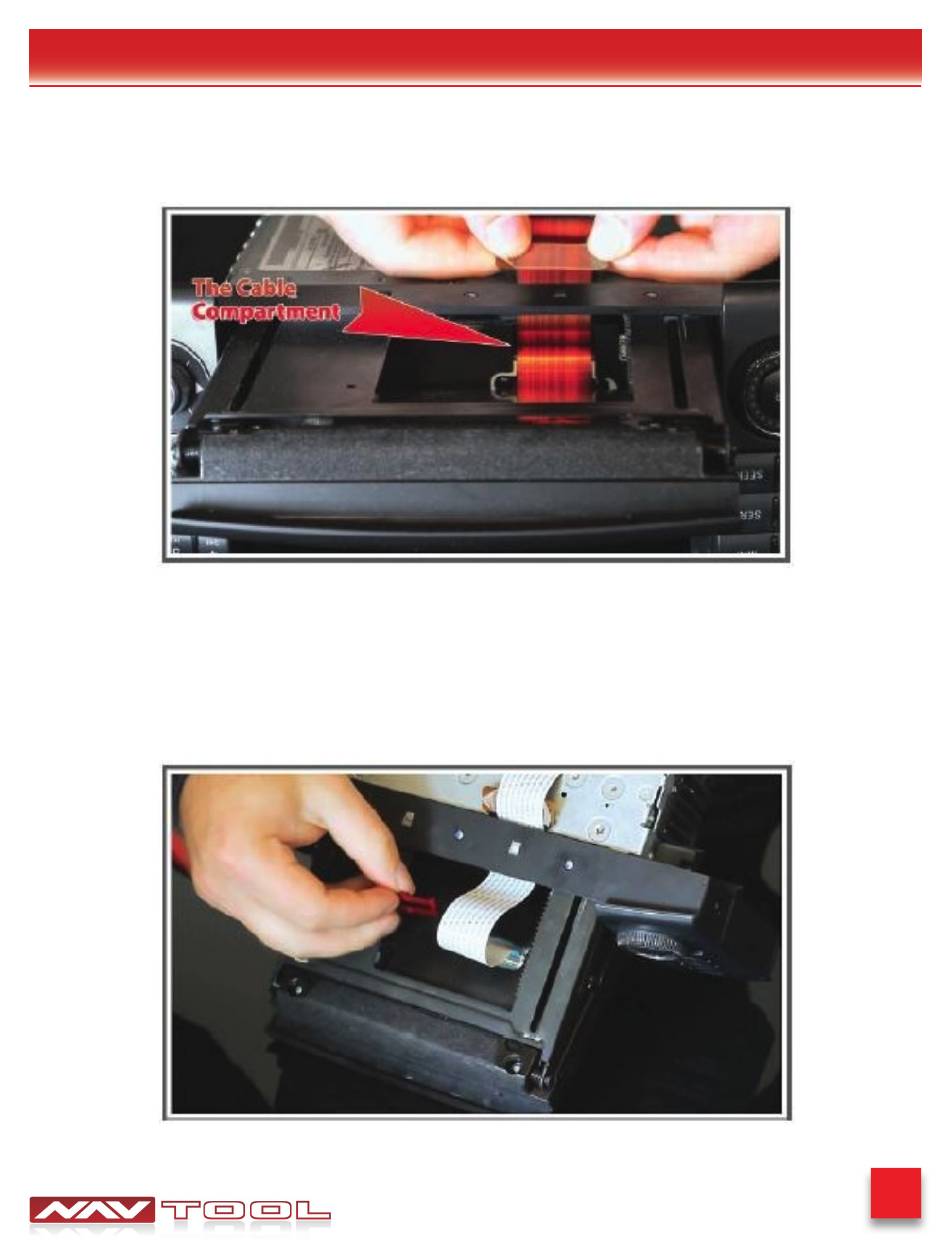

Step 3: Put the disconnected ribbon cable back into the compartment including the plastic arrow shaped
stopper on top of the flex cable, run the loose end through the slot on top, between metal radio case and
plastic trim shroud. Take precautions against piercing or scratching the cable. Do not use sharp objects for this
operation
Step 4: Run the supplied ribbon cable through the same slot as the original cable. Connect supplied flex ribbon
cable to the screen, and close the locks. Carefully reinstall the plastic cover (marked red). Do not use sharp
objects and do not apply force on the locks.
