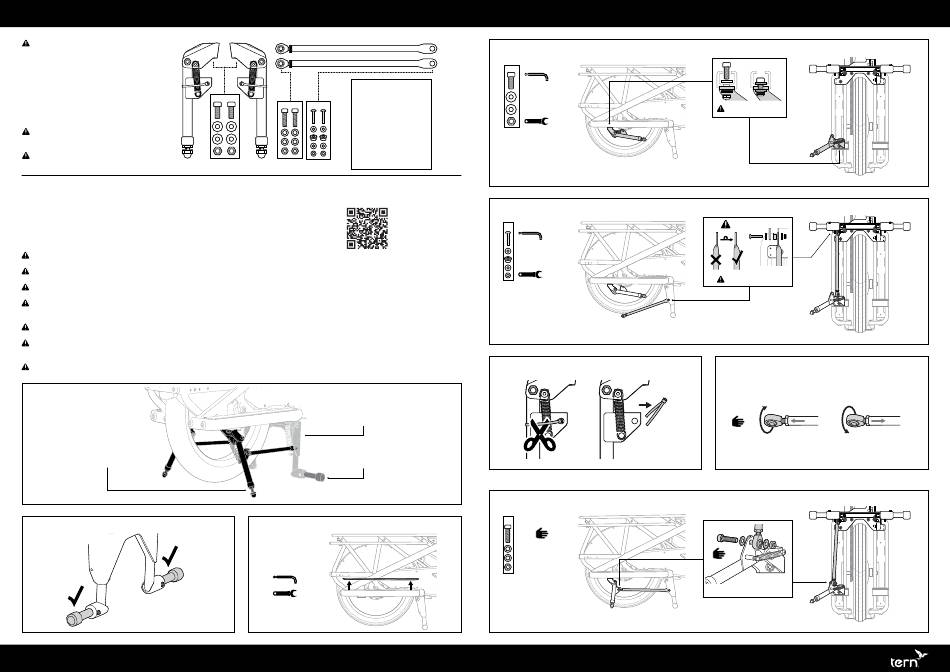

Tern QuadStruts Quick Start Manual

Lockstand QuadStruts ™
The Lockstand QuadStruts can only
be installed on GSD Gen 2 bikes.
What's Included
1. QuadStruts Leg x 2
2. QuadStruts Linkage Rod x 2
3. M6 Bolt Set x 2
4. M8 Bolt Set x 2
5. M10 Bolt Set x 2
If you are unsure how to install this
product, please visit your local dealer.
Please read the instructions
carefully before starting.
Left

How to Install

Tools Required (not included)
• 3 mm, 4 mm, 6 mm and 8 mm Allen Wrenches
• 8 mm, 10 mm, 13 mm and 17 mm Open Wrenches
To ensure a successful installation, please note the following:
All bolts must be tightened to the appropriate torque.
During the installation process, keep the QuadStruts Legs in the folded position and DO NOT CUT THE CABLE TIES on the spring until instructed.
Check that both tires have a pressure between 40-55 psi.
Identify the left and right QuadStruts Legs. The left leg should be attached to the non-drive side and the right leg should be
attached to the drive side of the bike. Make certain that during installation each leg is attached to the proper side.
The Lockstand Extensions should be installed on the Atlas Lockstand before installation of the Lockstand QuadStruts.
Add anti-seize lubricant to the tip of the bolts before securing the nuts. If anti-seize lubricant is not
available, apply any standard lubricant to reduce friction and prevent thread galling.
For installation on GSD Gen 2 bikes equipped with a derailleur, please shift to the lowest gear.
Lockstand QuadStruts
1. Install the Lockstand Extensions (sold separately).
ternbicycles.com
1
2

Hardware Detail

3: M6 x 25 Bolt
5
M6 x 13 x 1 Washer
4 3
M6 Nylon Nut
M6 Custom bushing
4: M8 x 30 Bolt
M8 x 15.9 x 1.5 Washer
M8 Nylon Nut
M10 x 25 Bolt
5:
M10 x 22.2 x 1 Washer
Right M10 Nylon Nut
• Ruler
• Scissors
Atlas Lockstand
Lockstand Extensions
2. Remove the plastic plate from the lower deck on the drive side.
3 mm
8 mm
3. Install the right QuadStruts Leg.
5
8 mm
17 mm
4. Attach the Linkage Rod to the Atlas Lockstand.
Scan to view
3
additional info
4 mm
10 mm
5. Cut the cable tie on the spring.
7. Attach the Linkage Rod to the QuadStruts Leg and tighten the bolt by hand.
4
Torque: 35-40 Nm
Torque: 8-9 Nm
6. Rotate the bearing on the end of the Linkage
Rod to adjust the length of the rod.
