DuoStand
™
Manual Version 04
Make sure you have the latest support resources!
Visit
ternbicycles.com/support
for:
Safety
If you are unsure how to install this product, please visit your local dealer.
Do not exceed the load limit of 60 kg (132 lb). Please remember the max load limit includes the weight of the bike.
Never leave children or pets on a parked bike unattended.

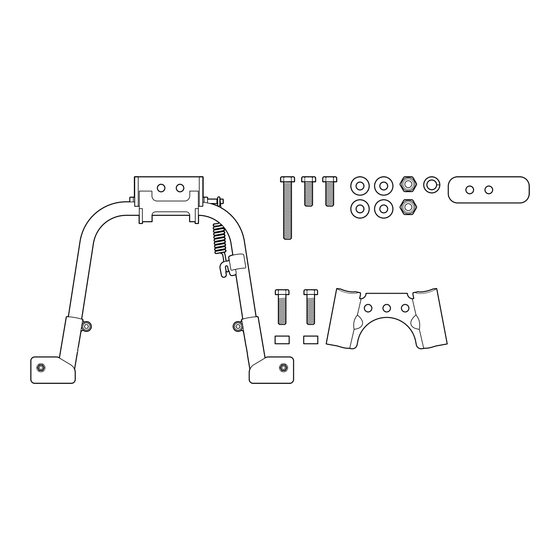

What's Included
• DuoStand
• M10 x 30 Bolt x 2
• M10 x 70 Bolt x 1
**
• M10 Nut x 2
• M10 Washer x 4
• M10 Spring Washer x 1
**
• Flat Plate
DuoStand Ends
**Note: The M10 x 70 Bolt and M10 Spring Washer
are not required to install the DuoStand.
Installation
Tools required (not included)
• 17 mm Wrench x 2
• 3, 4, or 5 mm Allen Wrench
1. Remove the existing kickstand. (Tool may differ depending on your bike.)
DuoStand Gen 2
Additional Kit Required (For HSD Gen 1
Owners Only)
The DuoStand HSD Kit (sold separately) is required to install
the DuoStand on bikes with the HSD Gen 1 frame. Please see the
illustrations on the next page to determine which HSD frame you
have.
* DuoStand HSD Kit
– M10 x 45 Bolt x 2
– Bushing x 2
– Wing-shaped Plate
Add anti-seize lubricant to the tip of the bolts before securing the
nuts. If anti-seize lubricant is not available, apply any standard
lubricant to reduce friction and prevent thread galling.
For HSD Gen 1 Owners
Identify the HSD Frame
Before installation, identify the HSD Gen 1 frame by the kickstand mount located in front of the rear wheel.
HSD Gen 1
2. Install Bolt Sets in the order and arrangement shown below.
HSD Gen 1 Assembly Order
1. Nut
2. Washer
3. Wing-shaped plate*
4. Bushing*
5. Bike frame
6. Flat plate
7. DuoStand
8. Washer
9. Bolt*
* Use parts from
the DuoStand
HSD Kit.
17 mm
17 mm
35 Nm – 40 Nm
HSD Gen 1 only
WARNING: Route cables as shown to
avoid damage from compression.
ternbicycles.com
HSD Gen 1 frame variants
HSD Gen 1A
HSD Gen 1
HSD Gen 1A
HSD Gen 1A Assembly Order
1. Nut
2. Washer
3. Bike frame
4. Flat plate
5. DuoStand
6. Washer
7. M10 x 30 Bolt
17 mm
17 mm
35 Nm – 40 Nm
Mounting Location for HSD Gen 1 and Gen 1A
1
