Tern DuoStand Quick Start Manual

DuoStand
™
Safety
Do not exceed the load limit of 60 kg (132 lb).
Never leave children on a parked bike unattended.
What's Included

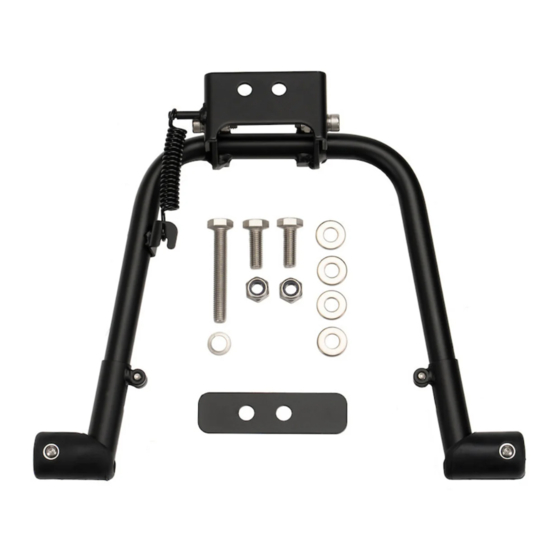

• DuoStand
• M10 x 30 Bolt x 2
• M10 x 70 Bolt x 1
• M10 Nut x 2
• M10 Washer x 4
• M10 Spring Washer x 1
Installation Additional Kit Required (For HSD
Tools required (not included) The DuoStand HSD Kit (sold separately) is required to install the DuoStand on the HSD.
• 17 mm Wrench x 2
• 3, 4 or 5 mm Allen Wrench*
* DuoStand HSD Kit
* Tool for removing the existing
– M10 x 45 Bolt x 2
kickstand may differ depending on
– Bushing x 2
your bike.
– Flat Plate
– Wing-shaped Plate

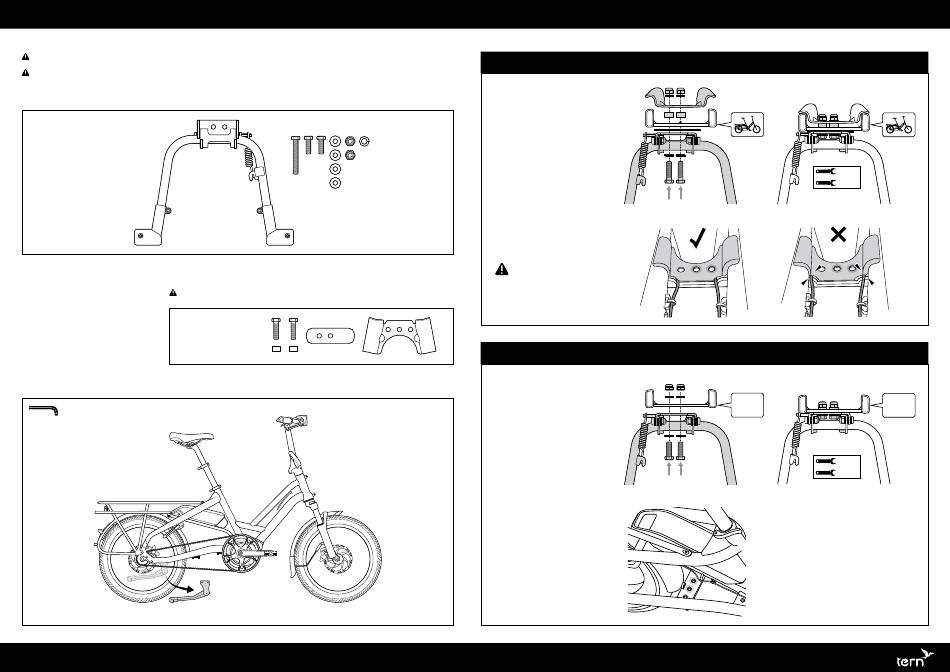

1. Remove the existing kickstand. (Tool may differ depending on your bike.)
2. Install both Bolt Sets in the order and arrangement shown below.
Assembly Order
Nut
Washer
Wing-shaped plate*
Bushing*
Bike
Flat plate*
DuoStand
Washer
Bolt*
* Use parts from the DuoStand HSD Kit.
Mounting Location
Owners Only)
™
Assembly Order
Nut
Washer
Bike
DuoStand
Washer
Bolt
Mounting Location
ternbicycles.com
WARNING: Route cables as shown
to avoid damage from compression.
Other Bikes
HSD
17 mm
17 mm
35 Nm – 40 Nm
Bike
17 mm
17 mm
35 Nm – 40 Nm
Bike
1
