Installation Instructions
Original Instructions
POINT I/O 4 Channel High Density Current Input Modules
Catalog Numbers 1734-IE4C, 1734-IE4CK, Series C
Catalog numbers with the suffix 'K' are conformal coated and their specifications are the same as non-conformal coated catalogs.
Topic
Summary of Changes
This publication contains the following new or updated information. This list includes substantive updates only and is not intended to reflect all changes.
Topic
Updated UK and European Hazardous Location Approval
Updated IEC Hazardous Location Approval
Updated Special Conditions for Safe Use
Updated General Specifications
Updated Environmental Specifications
Updated Certifications
Page
1
5
6
7
7
8
9
10
10
11
Page
4
4
4
12
13
13, 14
Advertisement
Table of Contents
Related Manuals for Rockwell Automation Allen-Bradley POINT I/O C Series
Summary of Contents for Rockwell Automation Allen-Bradley POINT I/O C Series
-
Page 1: Table Of Contents
Installation Instructions Original Instructions POINT I/O 4 Channel High Density Current Input Modules Catalog Numbers 1734-IE4C, 1734-IE4CK, Series C Catalog numbers with the suffix ‘K’ are conformal coated and their specifications are the same as non-conformal coated catalogs. Topic Page Summary of Changes Before You Begin Install the Mounting Base... - Page 2 Indien de apparatuur wordt gebruikt op een wijze die niet is gespecificeerd door de fabrikant, dan bestaat het gevaar dat de beveiliging van de apparatuur niet goed werkt. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022...
- Page 3 ATTENTION: To comply with the CE Low Voltage Directive (LVD), field power and all connected I/O must be powered from a source compliant with the following: Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV). Rockwell Automation Publication 1734-IN032F-EN-P - September 2022...
- Page 4 • May have catalog numbers followed by a “K” to indicate a conformal coating option. WARNING: • This equipment shall be used within its specified ratings defined by Rockwell Automation. • Secure any external connections that mate to this equipment by using screws, sliding latches, threaded connectors, or other means provided with this product.
-
Page 5: Before You Begin

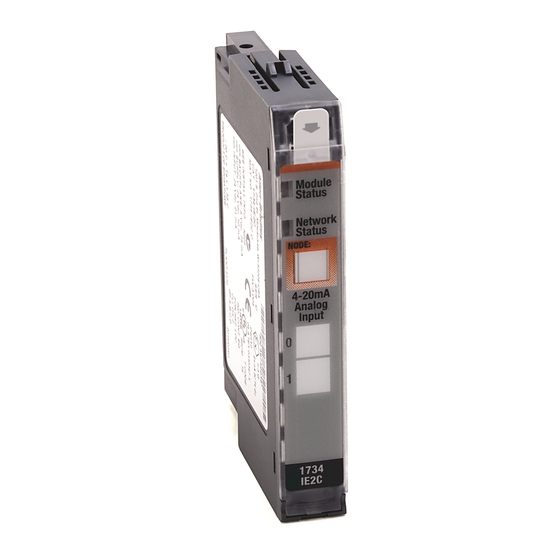

1734-TB, 1734-TBS mounting base Slide-in writable label Interlocking side pieces Insertable I/O module Mechanical keying (orange) Removable terminal block (RTB) handle DIN rail locking screw (orange) RTB with screw or spring clamp Module wiring diagram Rockwell Automation Publication 1734-IN032F-EN-P - September 2022... -
Page 6: Install The Mounting Base
To remove the mounting base from the DIN rail, remove the module, and use a small bladed screwdriver to rotate the base locking screw to a vertical position. This releases the locking mechanism. Then lift straight up to remove. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022... -
Page 7: Install The Module
If an I/O module is installed, snap the RTB handle into place on the module. Insert the module straight down into the mounting base. Hook the RTB end into the mounting base end and rotate until it locks into place. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022... -
Page 8: Remove A Mounting Base
Press firmly to seat the base on the DIN rail until the base snaps into place. Verify that the DIN rail locking screw is in a horizontal, locked position before inserting an I/O module. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022... -
Page 9: Wire The Module
(1) 1734-VTM is optional. Use the 24V DC supply from 1734-VTM module for 2-wire/3-wire devices. Channel Current Input Common Chassis Ground 4 or 5 6 or 7 12/24V DC is provided by the internal power bus. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022... -
Page 10: Communicate With Your Module
Device operating normally. Flashing green Device needs commissioning due to missing, incomplete, or incorrect configuration. Module status Flashing red Recoverable fault. Unrecoverable fault may require device replacement. Flashing red/green Device is in self-test mode. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022... -
Page 11: Specifications
10 ms @ Notch = 300 Hz 7.5 ms @ Notch = 400 Hz 6.25 ms @ Notch = 480 Hz Input impedance/resistance 60 Ω Conversion type Delta Sigma Common mode rejection ratio -120 dB Rockwell Automation Publication 1734-IN032F-EN-P - September 2022... - Page 12 35 g (1.235 oz) North American temp code UKEX/ATEX temp code IECEx temp code (1) Use this conductor category information for planning conductor routing as described in Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022...
- Page 13 IEC 60079-7; Explosive Atmospheres, Protection "e" II 3 G Ex ec IIC T4 Gc IECEx UL 20.0072X Russian Customs Union TR CU 020/2011 EMC Technical Regulation Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions Rockwell Automation Publication 1734-IN032F-EN-P - September 2022...
- Page 14 Arrêté ministériel n° 6404-15 du 29 ramadan 1436 CNCA-C23-01 CNCA-C23-01 CCC Implementation Rule Explosion-Proof Electrical Products CCC: 2020122309111607 (1) See the Product Certification link at rok.auto/certifications for Declaration of Conformity, Certificates, and other certification details. Rockwell Automation Publication 1734-IN032F-EN-P - September 2022...
