This is the only output from this transmitter, representing the process flow measurement, linearized and scaled according to the
configured range of the instrument. This output corresponds to the Primary Variable. HART Communication is supported on this
loop.
A guaranteed linear over-range is provided. Device malfunction can be indicated by the up-scale current of 24mA. Current
values are shown in the table below.
Linear over-range
Device malfunction
indication
Maximum current
Multi-Drop current draw
Lift-off voltage

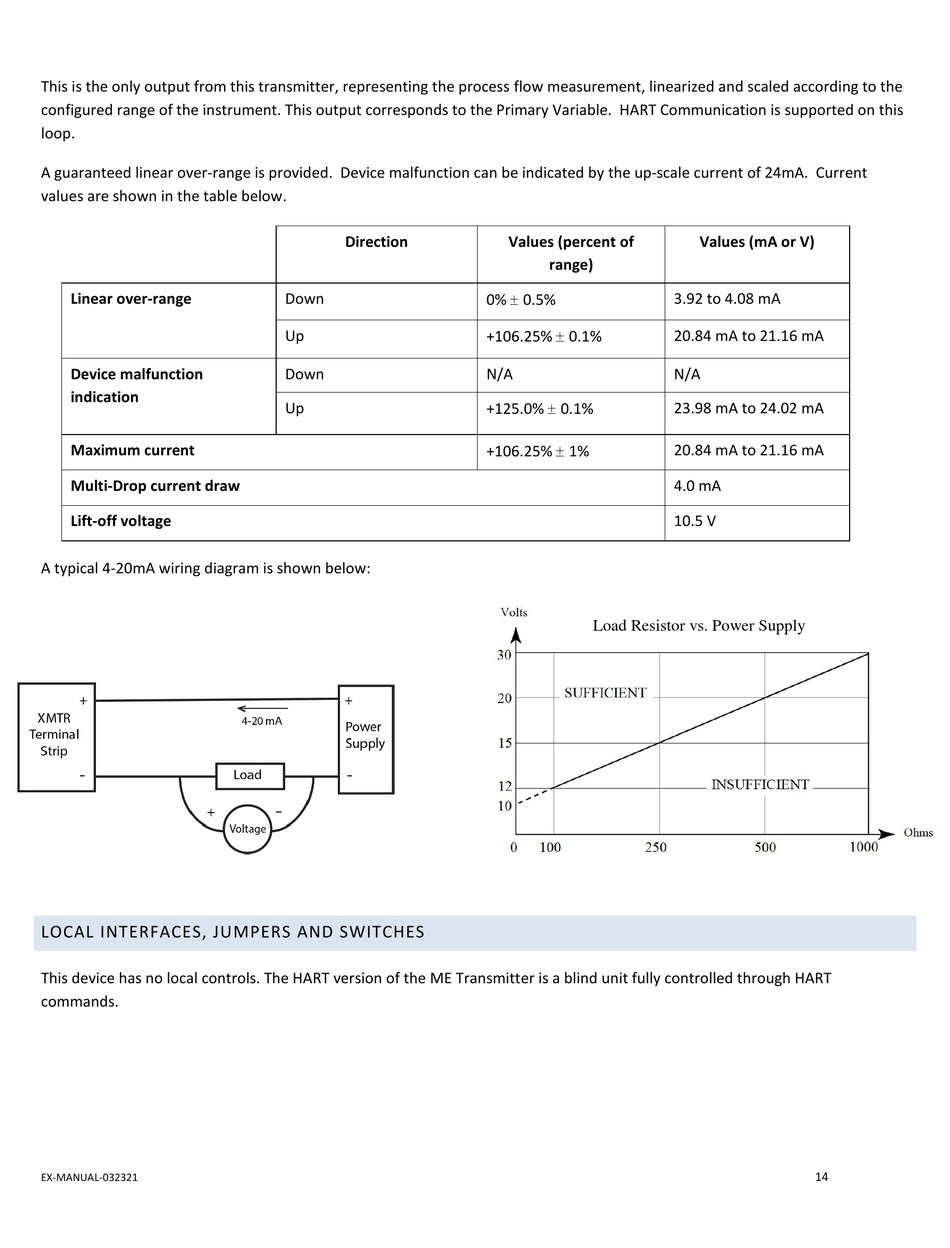

A typical 4-20mA wiring diagram is shown below:

LOCAL INTERFACES, JUMPERS AND SWITCHES

This device has no local controls. The HART version of the ME Transmitter is a blind unit fully controlled through HART
commands.
EX-MANUAL-032321
Direction
Down
Up
Down
Up
Values (percent of
range)
0%  0.5%
+106.25%  0.1%
N/A
+125.0%  0.1%
+106.25%  1%
Load Resistor vs. Power Supply
Values (mA or V)
3.92 to 4.08 mA
20.84 mA to 21.16 mA
N/A
23.98 mA to 24.02 mA
20.84 mA to 21.16 mA
4.0 mA
10.5 V
