HOST INTERFACE
ANALOG OUTPUT 1: PROCESS FLOW

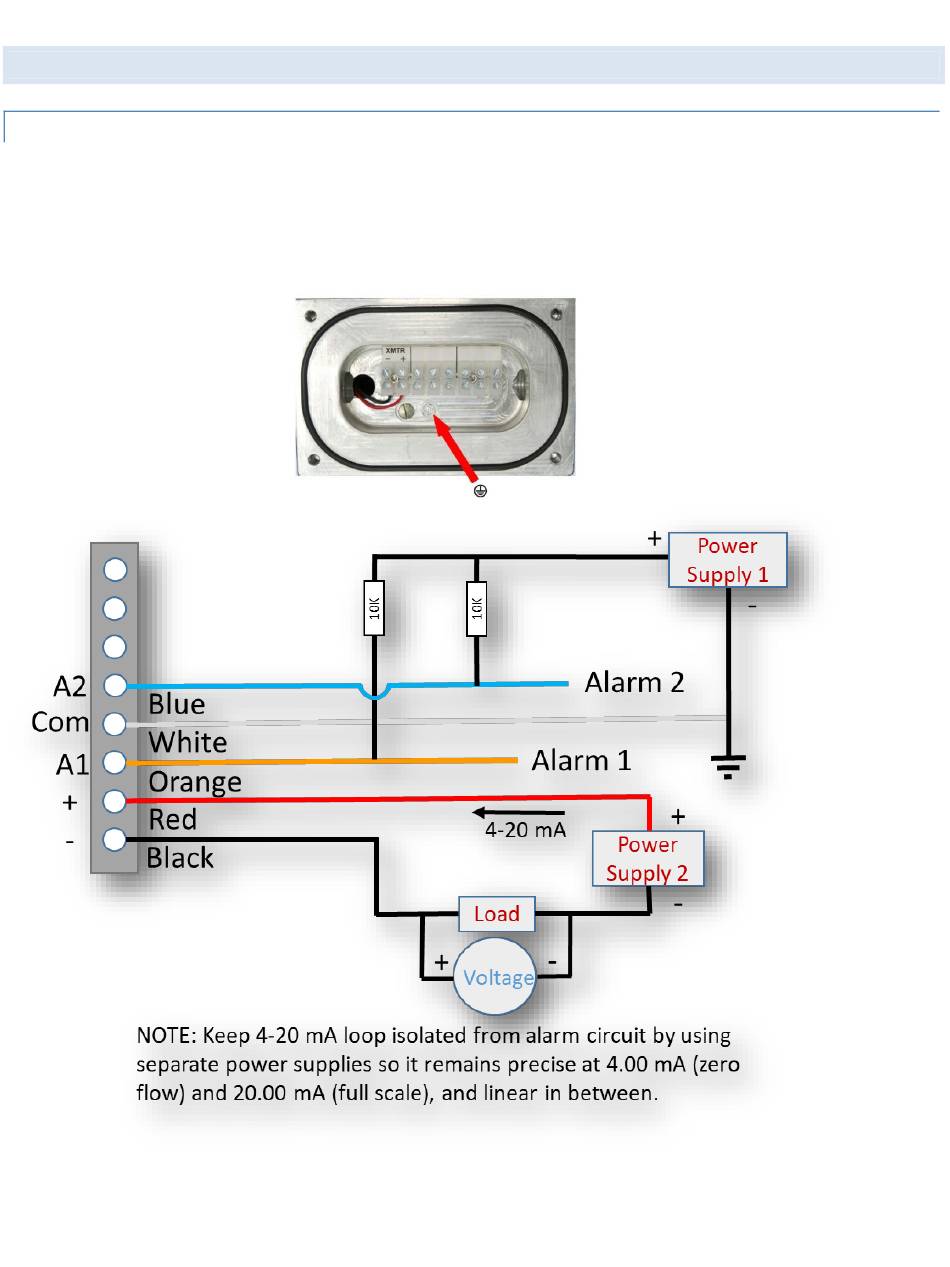

The two-wire 4-20mA current loop is connected to two terminals on the transmitter circuit board. Depending on the product
used, one of the two configurations are offered for field wiring.
A secondary terminal strip away from the PCB (mounted in a separate compartment of the flowmeter) and is marked (+) and (–).
The red wire connects the (+) terminal on the PCB to (+) and the black wire connects the (–) terminal on the PCB to (–).
13
EX-MANUAL-032321
