INSTALLING ThE uNIT IN A vEhICLE

Tools required
1. #2 Phillips Screwdriver
2. #1 Phillips Screwdriver
3. Utility or Razor Knife
4. Wire Strippers
5. Upholstery hook tool (for removal of panels as necessary)
6. Electrical Tape
7. Masking Tape
preparation
Place the unit on a soft surface to avoid damaging the plastic.
Installing the Snap On Covers
The ADVEXL12A is supplied with black, shale and pewter plastics to allow for a custom installation. Choose the desired color and install as
follows.

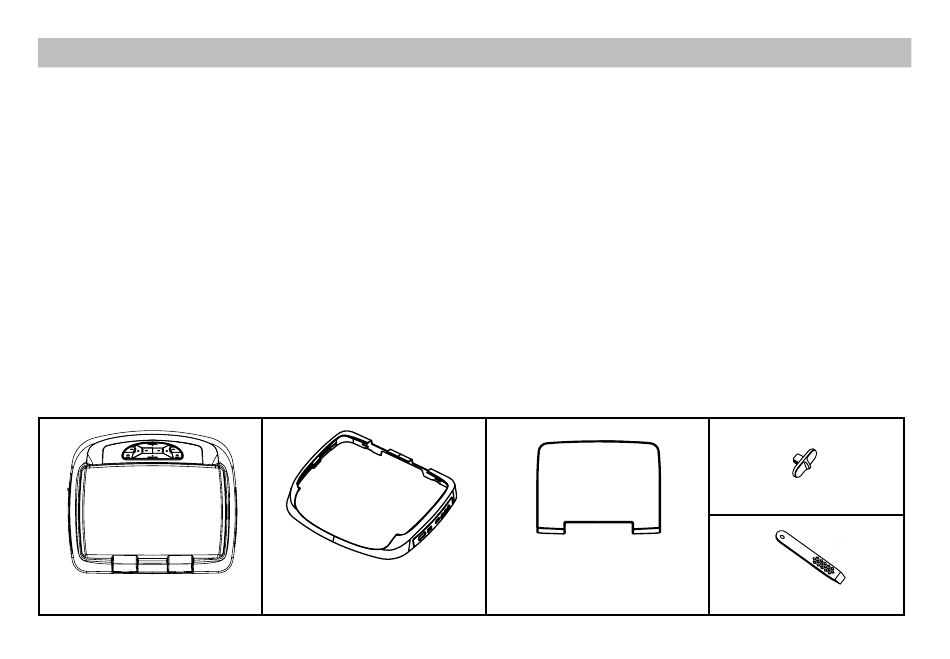

1.
Housing
2.
Snap On Cover (Shroud)
1 Pewter, 1 Shale, 1 Black
8. Multimeter to verify 12 volt DC and continuity (Do not use a test
light or logic probe)
9. Marker pen – to mark headliner, to mark trim ring if used
10. Scribe (to mark trim ring if used)
11. Miscellaneous:
• Electrical Connectors (to connect to vehicle power source,
requirements will vary from vehicle to vehicle)
• DVD Movie (to verify system operation after installation)
3.
Snap On Cover
(Screen Back Cabinet)
1 Pewter, 1 Shale, 1 Black
5
4.
Slide Knob
5.
Pry Tool
