INSTALLING ThE mOuNTING BrACkET

Installing the mounting Bracket
1. Once all the pre-wiring is complete, locate:
• Mounting Bracket
• (4) #4.3 x 10mm Self-Drilling Screws

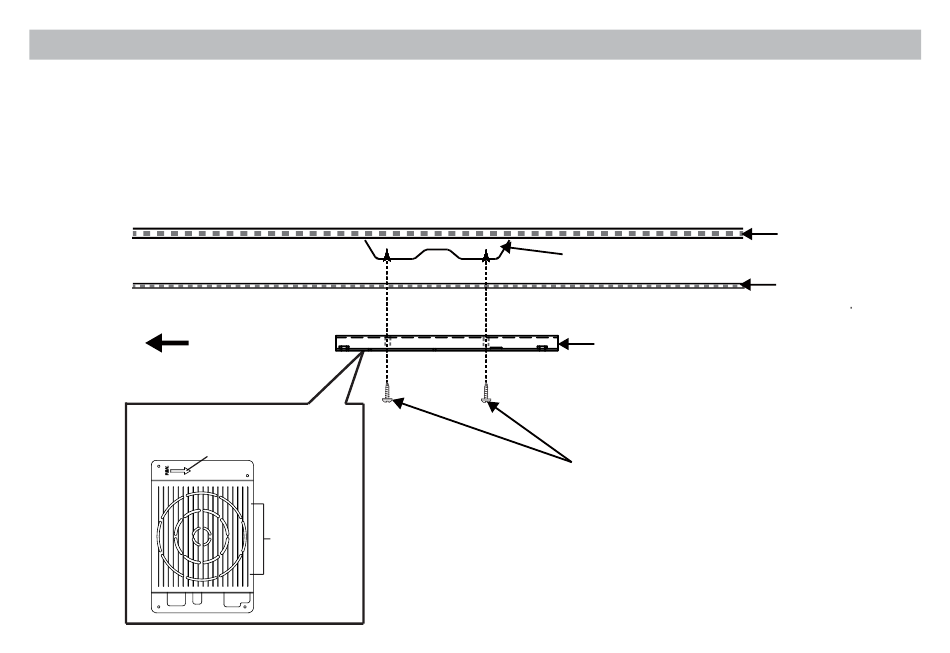

2. Carefully align the Mounting Bracket in the location it is to be
installed with direction arrow facing the front of the vehicle (make
sure there is nothing between the Mounting Bracket and Roof
Cross-Member).
Front
of
Vehicle
Mounting Bracket
(Top view of Bracket)
Direction Arrow
Bracket
Mounting
Holes
*
CAUTION: Use extreme caution when using the
Self-Drilling Screws to avoid damage to vehicle
roof or other components, wiring, etc.
Note: The headliner may need to be cut to install the bracket. When
cutting the headliner, make sure no wires above the headliner are cut.
3. While holding the Mounting Bracket in place, install the
4- #4.3 x 10mm Self-Drilling Screws.
CAuTION: Be sure that the Self-Drilling Screws do not pierce the
outer roof skin when fully fastened to the Roof Cross-Member.
Roof Cross-Member
Mounting Bracket
*
Self-Drilling Screws
(4 x Self-Drilling Screws - #4.3 x 10mm)
12
Roof
Headliner
