INSTALLING ThE AdvEXL12A vIdEO SySTEm - wIrING dIAGrAm

1. Connect the dome light wires as shown on pages 10 and 11 of this
install manual.
2. Connect the input power wires of the 6 pin Power/Dome Light
Harness to the vehicle's electrical system by tapping into an
accessory hot line and a good ground. Note: This connection
must be fused at the vehicle connection point.
3. Plug the 6 pin Power/Dome Light Harness into the unit in the
location shown.

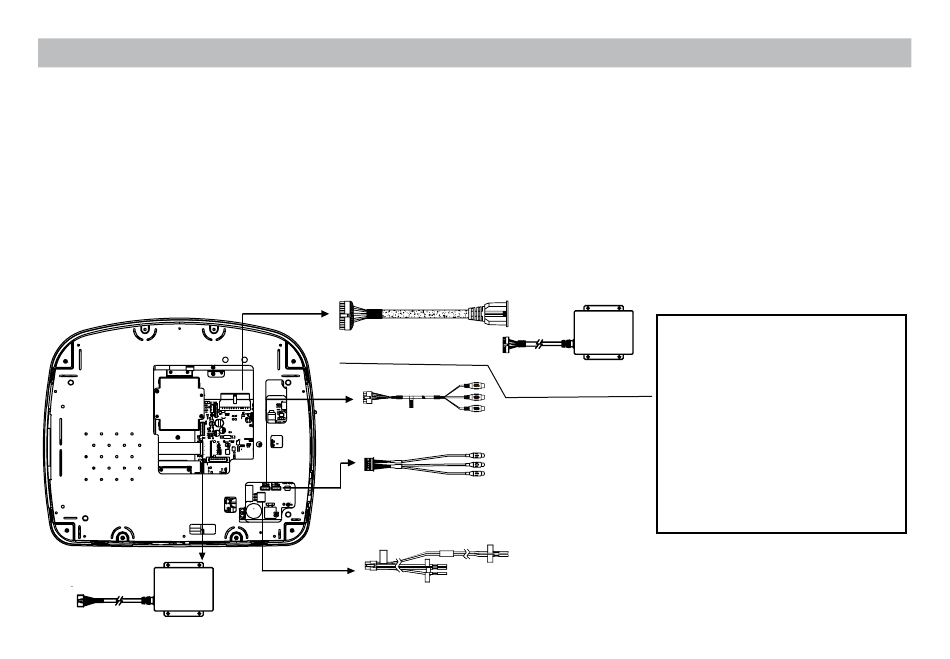

wIrING dIAGrAm
MVGP1(Optional)
4. If connecting to an external source, plug in the 5 pin AV Input
Harness (P/N: 112-4259) in the location shown. Connect RCA
cables (not supplied) to the external source's AV Output.
5. If connecting to a second screen AUX Input or head unit AUX Input,
plug in the 5 pin AV Output Harness in the location shown and
connect RCA cables (not supplied) to the AV Input of the second
screen or head unit.
6. Verify all system functions before permanently mounting the unit.
*Note: The antenna has been designed for optimal performance. When
1.6M HDMI Cable(Optional)
WM1(Optional)
5 Pin AV Input Harness
(P/N: 112-4259)
5 Pin AV Output Harness
(P/N: 112-4260)
6 Pin Power/Dome Light Harness
(P/N: 112-4270)
13
installing the unit, position the antenna for best reception.
A/V Sources:
• DVD / CD
• USB Input
• HDMI1 Input (MHL/HDMI)
• HDMI2 Input (HDMI only)
• Media (e.g. iPod, iPhone, iPad)
• AV - Signal Harness to the 3 RCA
Jack Pigtail is used for AV Input.
• AUX - AUX Input
• Setting
• Game
