INSTALLING AdvEXL12A vIdEO SySTEm - mOuNTING ThE uNIT
Installing the AdvEXL12A System
1. Make all electrical connections.

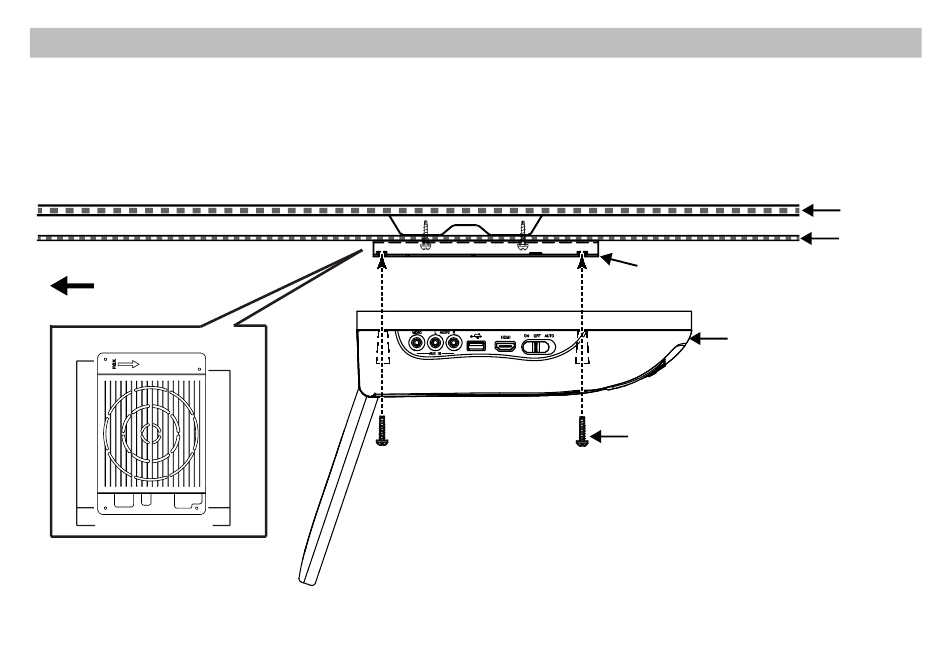

2. Attach the ADVEXL12A unit to the mounting bracket using four M5 screws.
CAUtIoN: The M5 screws are supplied in three different lengths (10mm, 20mm and 40mm) to facilitate proper installation. Use extreme caution
when using these screws to avoid damage to vehicle roof or other components, wiring, etc.
CAUtIoN: Do not trap any wiring between the bracket and the unit.
Front
of
Vehicle
Mounting Bracket
Mounting Holes
Mounting Bracket
4 x M5
Screws
Note: Do not over torque or
over tighten M5 screws.
14
Roof
Headliner
Video Unit
ADVEXL12A
