AppENdIX A - rEmOvING ThE TrIm rING, SNAp-ON ShrOud ANd SCrEEN COvEr
This section is intended for situations where the color of the Shroud, Screen Cover and Trim Ring need to be changed after the unit is setup for
installation. Note: Work on a soft surface to avoid damaging the plastic.

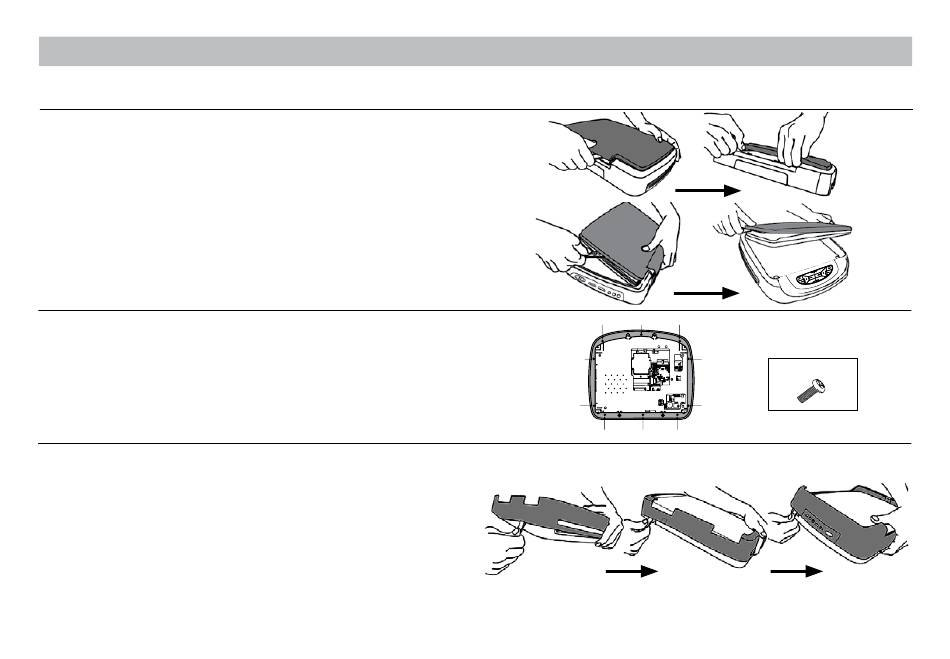

removing the Screen Back Cover
1. Starting from the back of the unit, carefully insert the supplied
pry tool between the Housing and Screen Back Cover
2. Press the pry tool to release the Screen Back Cover.
3. While lifting the Screen Back Cover, slide the pry tool around to
the attaching areas and press the pry tool to release the Screen
Back Cover.
4. Remove the Screen Back Cover and discard.
removing the Trim ring
1. Remove the Trim Ring screws ((10) M3 x 8mm screws).
Note: Do not Discard Screws! These screws are used to attach the
new Trim Ring.
2. Remove the Trim Ring and discard.
removing the Shroud
1. Using the supplied pry tool, remove the slide knob from the
dome light switch located on the side of the DVD player.
Note: Do not Discard knob! The knob is reused.
2. Open the screen and insert the supplied pry tool between the
Housing and Shroud and disengage the tape on the center
section of the shroud.
3. Press the pry tool to disengage the attaching Shroud clips.
4. Continue disengaging the attaching areas around the unit
removing the Shroud and discard.
(1) (2)
(10)
(9)
(8) (7)
15
(3)
TRIM RING SCREW
(4)
(8) M3 X 8mm Screws
(5)
(6)
