Furniture of America Maegan CM3152SC-2PK Assembly Instructions

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

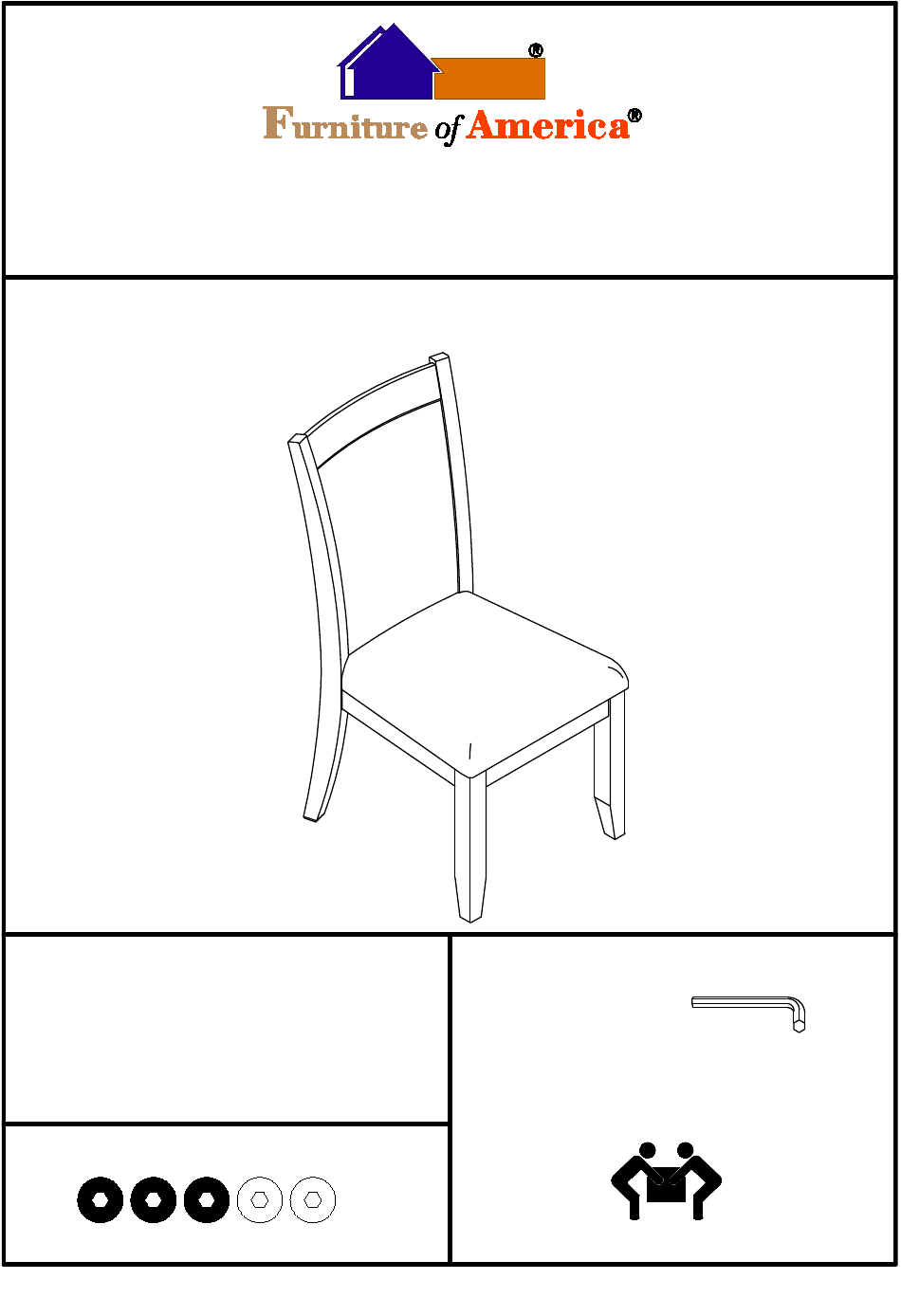

ASSEMBLY RATING

The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
Assembly Instructions
For more information contact our team: service.ec@foagroup.com
CM3152SC-2PK
DIFFICULT
Tools Required For Assembly:
Allen Wrench
2 PERSONS RECOMMENDED
Page 1 of 5
(Included)
Rev:16-12-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maegan CM3152SC-2PK and is the answer not in the manual?

Questions and answers

Related Manuals for Furniture of America Maegan CM3152SC-2PK

Summary of Contents for Furniture of America Maegan CM3152SC-2PK

  • Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3152SC-2PK ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being easy and 5 being difficult).
  • Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
  • Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc x 2 #A x 4pcs x 2 Chair Back Bolt Ø1/4" x 3'' #2 x 1pc x 2 #B x 4pcs x 2 Cushion Seat...
  • Page 4 Prepare 3 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align seat cushion (#2) to the holes of the chair back (#1), then secure with bolts (#C). #C x 3pcs #D x 3pcs #E x 3pcs Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A).
  • Page 5 Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#B). Align front legs (#3) to the holes of the cushion seat (#2). Secure with bolts (#B). #B x 4pcs #D x 4pcs #E x 4pcs ASSEMBLY IS COMPLETED Page 5 of 5...
