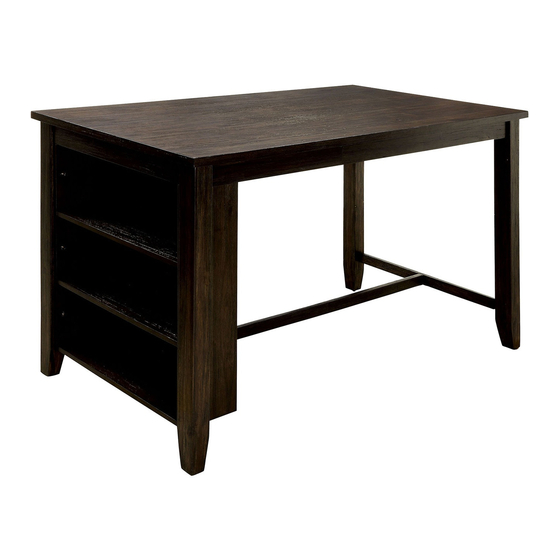

Summary of Contents for Furniture of America CM3153PT
- Page 5 Insert layer board support (#J) to the holes of the side back panel (#2). Align shelf (#3) to the holes of the layer board support (#J). Secure by using screws (#G). Unfold side back panel (#2) Prepare 4 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#B). Align table legs (#4R/L) to the table top (#1).
- Page 6 Align side back panel (#2) to the holes of the table legs (#4,R/L). Secure by using bolts (#A). Prepare 2 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#B). Align leg (#5R) to the holes fo the table top (#1). Secure by using bolts (#B).
- Page 7 2) Align and attach long stretch (#6) to short stretcher (#7). Align T metal bracket (#E) to the middle of the long stretcher (#6) and short stretcher (#7). Secure by using screws (#G). 1) Align L metal bracket (#I) to the holes of the side back panel (#2) and long stretcher (#6), then secure by using screws (#G).
