Plasma Display Stand
Handling Instructions
AS4250
For both 42-inch and 50-inch plasma displays
We greatly appreciate your purchase of this MARANTZ Plasma Display Stand.
Read these instructions carefully to ensure proper usage.
* This plasma display stand is designed specifically for use with MARANTZ plasma displays.
Special skills are required to install the Plasma Display.
Do not attempt to install the Plasma Display on your own.
Attention: Sales Agents and Technicians
To ensure the user's safety, be sure to select a place sufficiently strong to bear the weight of the Plasma Display
and the different units.
Installation should be performed by a minimum of two persons.
Be careful not to lose removed screws, etc.

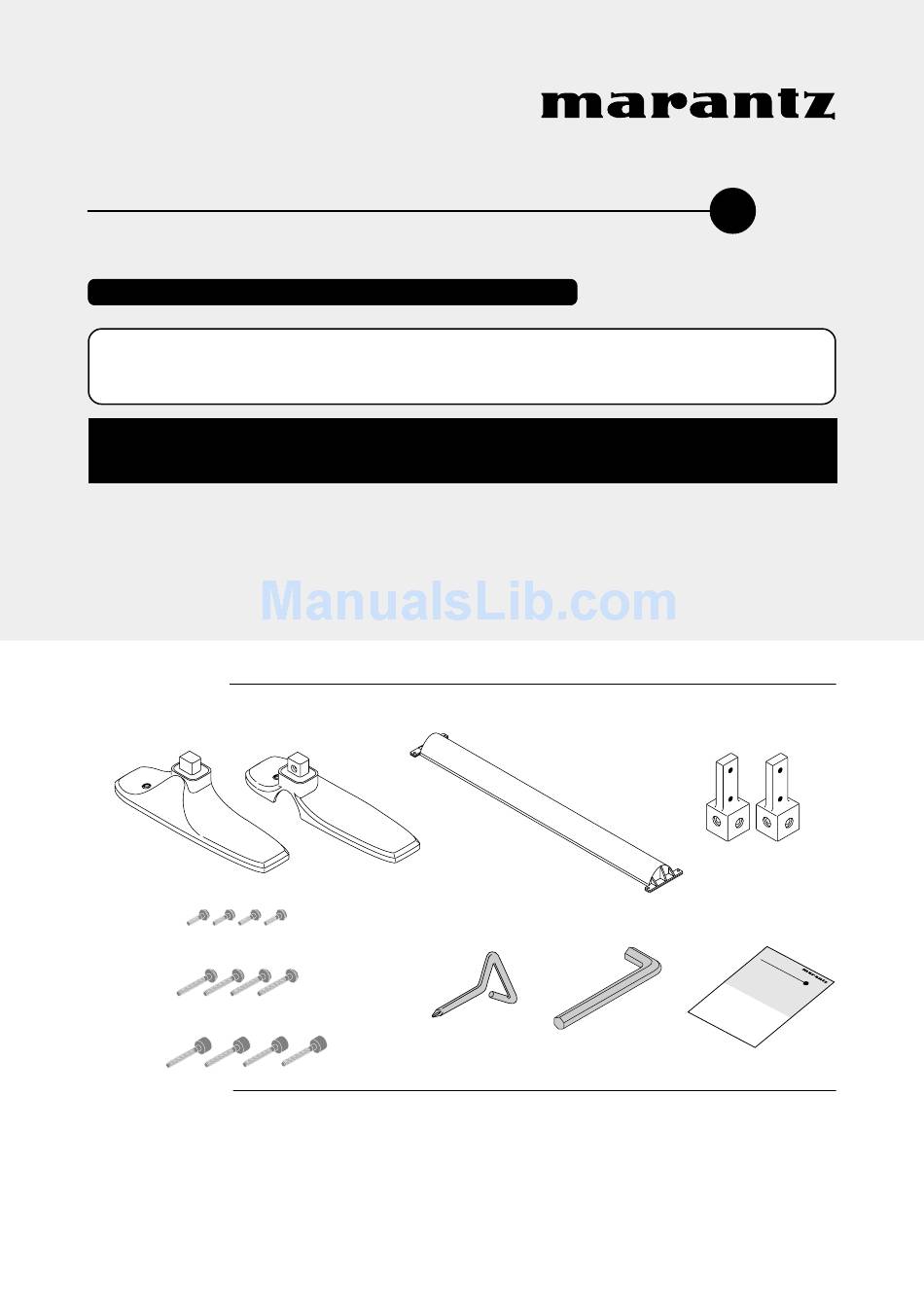

Parts Included
* Feet (2)
(Right)
(Left)
Stand assembly screws M4 (4)
Display mounting screws M6 (4)
Core mounting screws - M6
hexagon socket head cap screws (4)
Specifications
Model: AS4250
External dimensions: (W) 814 x (H) 192x (D) 400 mm
Weight: 3.2 kg
7.3 lbs
* Bar (1)
Screwdriver
(W) 32.0 x (H) 7.6x (D) 15.7 inches
Core (2) (for 50" monitors)
* Handling instructions
Hexagonal wrench
(these instructions)
40AW851010
Advertisement
Related Manuals for Marantz AS4250
Summary of Contents for Marantz AS4250
-
Page 1: Specifications
We greatly appreciate your purchase of this MARANTZ Plasma Display Stand. Read these instructions carefully to ensure proper usage. * This plasma display stand is designed specifically for use with MARANTZ plasma displays. Special skills are required to install the Plasma Display. -
Page 2: Before Use
If a part should be damaged, contact the store of purchase. - Each unit is designed specifically for use with MARANTZ plasma displays. Please do not mount any other equipment with these items. Doing so may cause the item to fall over and result in injury. - Page 3 - Do not obstruct the Plasma Display’s ventilation holes. If the ventilation holes are covered, the heat will build up inside, and this could lead to fire. For example, do not install the Plasma Display in narrow spaces where ventilation is poor, do not place covers over it, etc. - Do not install the Plasma Display near air conditioner air outlets or in places where vibrations are strong.
- Page 4 Installing the Plasma Display on the Stand For both 42-inch and 50-inch plasma displays Preparations 1. Unpack the plasma display. 1. Open the top of the cardboard in which the plasma display is packed and remove the three pieces of styrofoam.
- Page 5 Mounting a 42-inch plasma display on the stand 1. Assembling the stand 1. Turn the bar upside down and place it on the feet, lining it up with the screw holes in the feet. Install with the arrow facing the front. 2.
- Page 6 Mounting a 50-inch plasma display on the stand 1. Assembling the stand 1. Turn the bar upside down and place it on the feet, lining it up with the screw holes in the feet. Install with the arrow facing the front. 2.
