Marantz RMK1501NR Installation Instructions

RMK1501NR
│
Rack Mount Kit for the NR1501 Slim Line AVR
RMK1501NR rack mount kit includes:
•
Left side rack bracket
•
Right side rack bracket
•
Lower front finishing panel
•
4 front panel fastening screws
1. On the unit, remove the left and right side screws
2. Position the right side bracket on the right side of the unit so the holes on the
bracket line up with the corresponding holes on the unit.
3. Attach the bracket to the unit using the same screws that were removed
4. Repeat step 2 and step 3 for the left side bracket
5. Mount the lower finishing panel between the left and right side brackets
6. Install fastening screws to secure lower finishing panel
7. The component is now ready to be secured to the frame rails of the equipment
rack in accordance to the manufactures instructions.

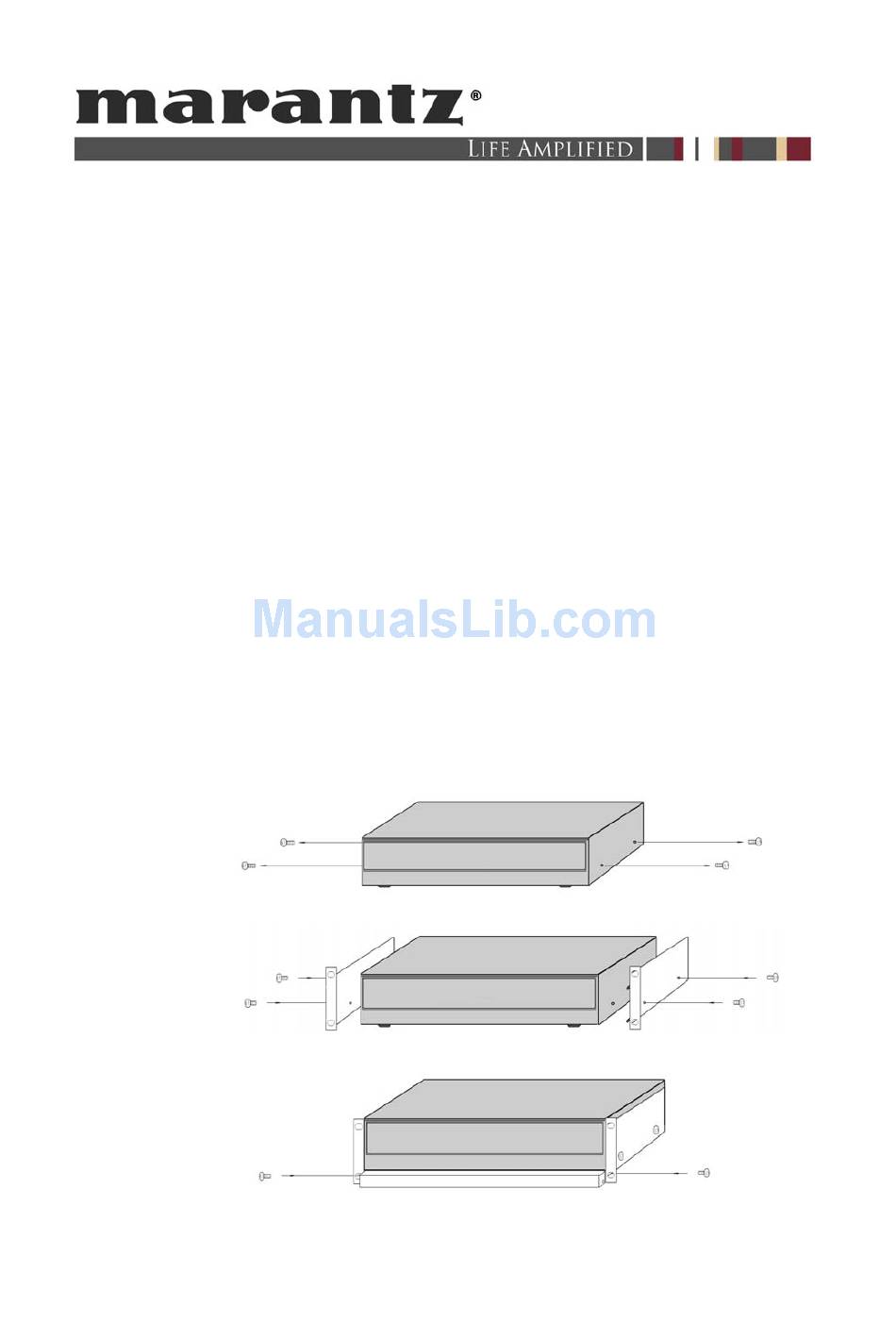

Figure A
Figure B
Figure C
