Plasma Display Stand
Handling Instructions
AS6150
Thank you for purchasing the AS6150 Plasma Display Stand.
Before using this product, please read this Handling Instructions thoroughly so that you can use this product at its full functionality.
After reading, retain this manual in an easily accessible location so that you can refer to this manual whenever you have a
problem or trouble during use.
* This plasma display stand is designed specifically for use with MARANTZ 61-inch plasma displays.
Special skills are required to install the Plasma Display.
Do not attempt to install the Plasma Display on your own.
Attention: Sales Agents and Technicians
To ensure the user's safety, be sure to select a place sufficiently strong to bear the weight of the Plasma Display
and the different units.
Installation should be performed by a minimum of three persons.
Be careful not to lose removed screws, etc.

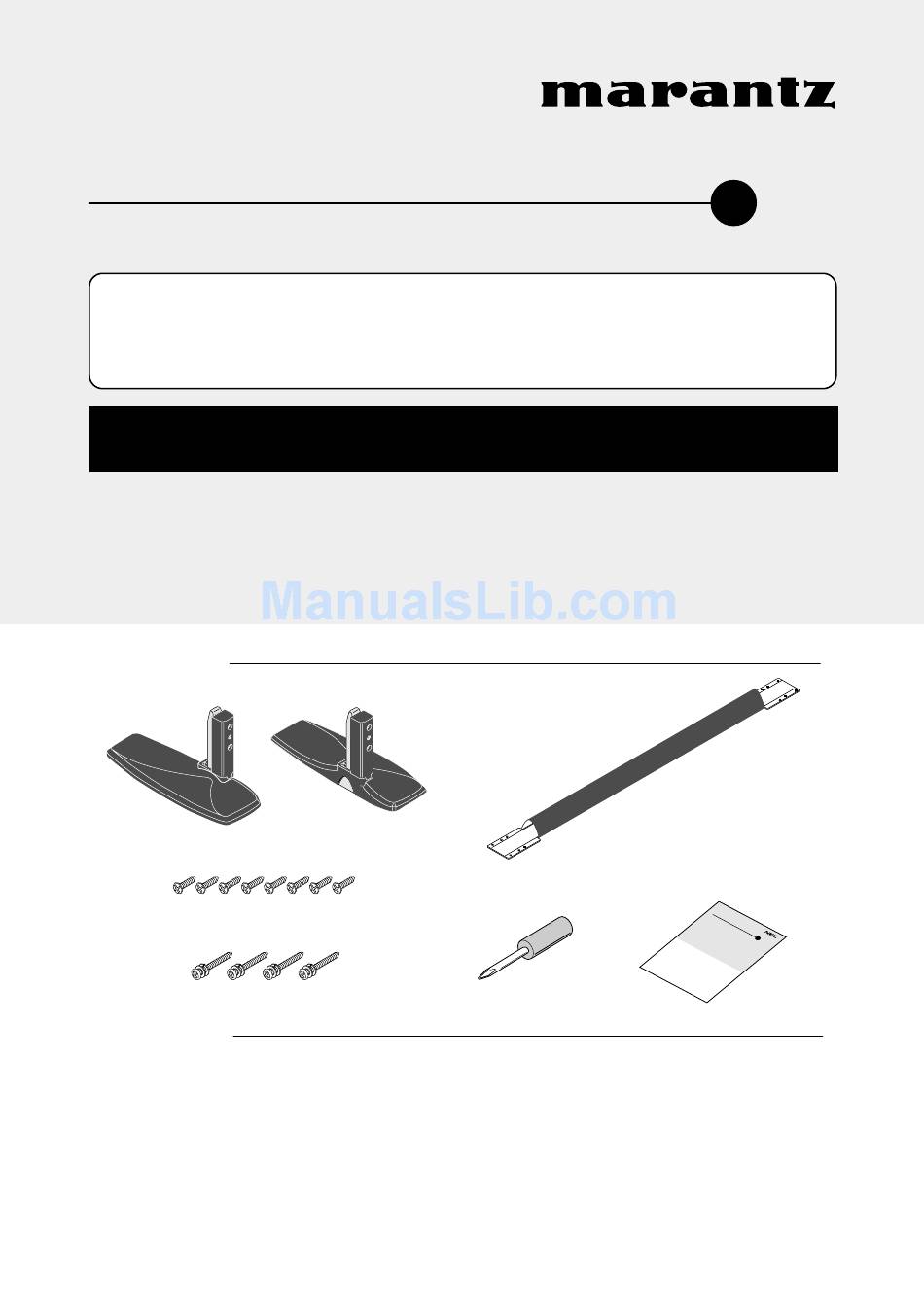

Parts Included
* Feet (2)
Stand assembly screws M4 x 10 (8)
Display mounting screws M6 x50 (4)
Specifications
Model: AS6150
External dimensions: (W) 1125 x (H) 205 x (D) 430 mm
Weight: 6.5 kg
14.3 lbs
Operating conditions: Temperature
Storage conditions: Temperature -10˚ to 50˚C / 14˚F to 122˚F
(W) 44.3 x (H) 8.1 x (D) 16.9 inchs
0˚ to 40˚C / 32˚F to 104˚F
* Bar (1)
* Handling instructions
(these instructions)
Screwdriver
Humidity 20%~80%
Humidity 10%~90%
41AW851010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Marantz AS6150
Summary of Contents for Marantz AS6150
-
Page 1: Specifications
After reading, retain this manual in an easily accessible location so that you can refer to this manual whenever you have a problem or trouble during use. * This plasma display stand is designed specifically for use with MARANTZ 61-inch plasma displays. Special skills are required to install the Plasma Display. -
Page 2: Before Use
If a part should be damaged, contact the store of purchase. - Each unit is designed specifically for use with MARANTZ 61-inch plasma displays. Please do not mount any other equipment with these items. Doing so may cause the item to fall over and result in injury. - Page 3 - Do not obstruct the Plasma Display’s ventilation holes. If the ventilation holes are covered, the heat will build up inside, and this could lead to fire. For example, do not install the Plasma Display in narrow spaces where ventilation is poor, do not place covers over it, etc. - Do not install the Plasma Display near air conditioner air outlets or in places where vibrations are strong.
- Page 4 Assembling the stand Preparations••••Unpack the plasma display. 1. Open the top of the cardboard in which the plasma display is packed and remove the three pieces of styrofoam. Styrofoam . Open the package and take out the cardboard and accessories (screws and handling instructions).
- Page 5 . Take out the bar and remove the shock ab- sorbing boxes from both sides. . Remove the two boxes containing the feet and set them upside-down. Assembling the stand...
- Page 6 Assembling the stand . Lift up the protective sheet covering the foot starting from the perforated line in the center to reveal the mount- ing surface. . Remove the cover of the bar removed in step 2, insert the bar on the guide pins, and tighten with the included stand assembly screws.
- Page 7 . Lift the section stuck into the slit upwards, pull it out, then fold it down. . On the bar side, after pulling out the slit section, bend as shown in the diagram then fold down. . Fold down the front and rear of the box and remove the stand.
- Page 8 Mounting the plasma display on the stand . Insert the plasma display into the stand. Check that the stand and plasma display are facing the proper direction, then insert the plasma display into the stand. This procedure should be done by at least three persons, since the plasma display is heavy and has a high center of gravity.
