Marantz RMK7132VST Installation Instructions

RMK7132VST
│
Rack Mount Kit for the ST7001 / VS3002
RMK7132VST Rack Mount Kit includes:
•
Left side rack bracket
•
Right side rack bracket
•
Front panel faceplate
•
4 front panel mounting acorn nuts
1. On the unit, remove the left and right side screws of the unit.
2. Position the right side bracket on the right side of the unit so the holes on the
bracket line up with the corresponding holes on the unit.
3. Attach the bracket to the unit using the same screws that were removed
4. Repeat step 2 and step 3 for the left side bracket
5. Mount the front panel faceplate onto the unit by matching the protruding bolts on
the side brackets to the small holes on the faceplate
6. Use the acorn nuts to secure the front faceplate to the side brackets
7. The component is now ready to be secured to the frame rails of the equipment
rack in accordance to the manufacturer's instructions.
8. Be sure to allow for plenty of ventilation (Bottom, Top and Sides)

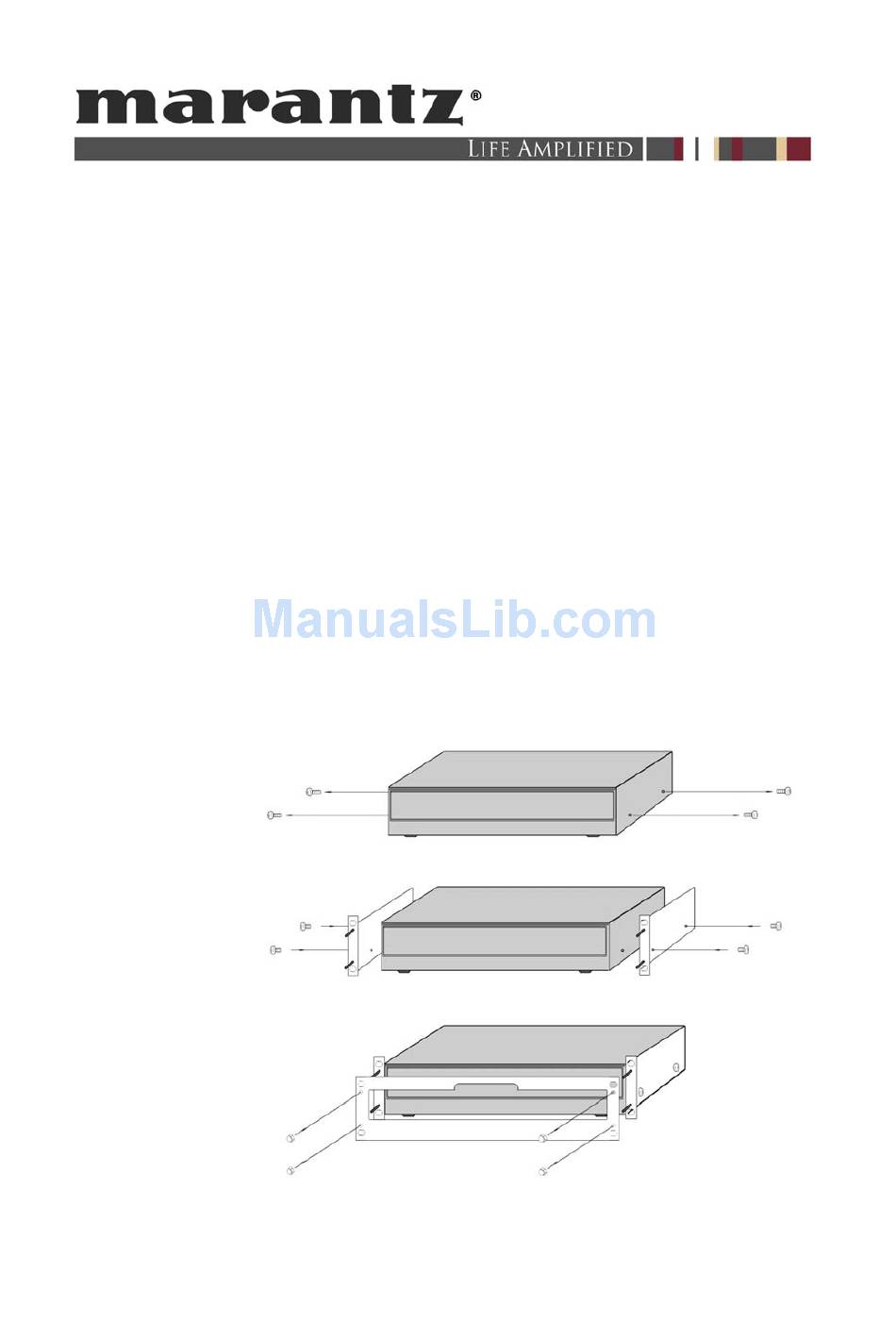

Figure A
Figure B
Figure C
Marantz America, Inc. • 100 Corporate Dr., Mahwah, NJ 07430 • (201) 762-6500
Installation Instructions
***Warning: Do not remove the cover of the unit***
