Marantz RMK6504SR Installation Instructions

RMK6504SR
Rack Mount Kit for the SR6003, SR5003, SR4003 & SR4023

RMK6504SR rack mount kit includes:

•
Left side rack bracket
•
Right side rack bracket
•
Lower front finishing panel
•
4 lower front panel fastening screws
1. On the unit, remove the 3 screws from Left & Right sides of the unit
2. Position the right side bracket on the right side of the unit so the holes on the
bracket line up with the corresponding holes on the unit.
3. Attach the bracket to the unit using the same screws that were removed
4. Repeat step 2 and step 3 for the left side bracket
5. Mount the lower finishing panel between the left and right side brackets
6. Install fastening screws to secure lower finishing panel
7. The component is now ready to be secured to the frame rails of the equipment
rack in accordance to the manufacturer's instructions.
8. Be sure to allow for plenty of ventilation (Bottom, Top and Sides)

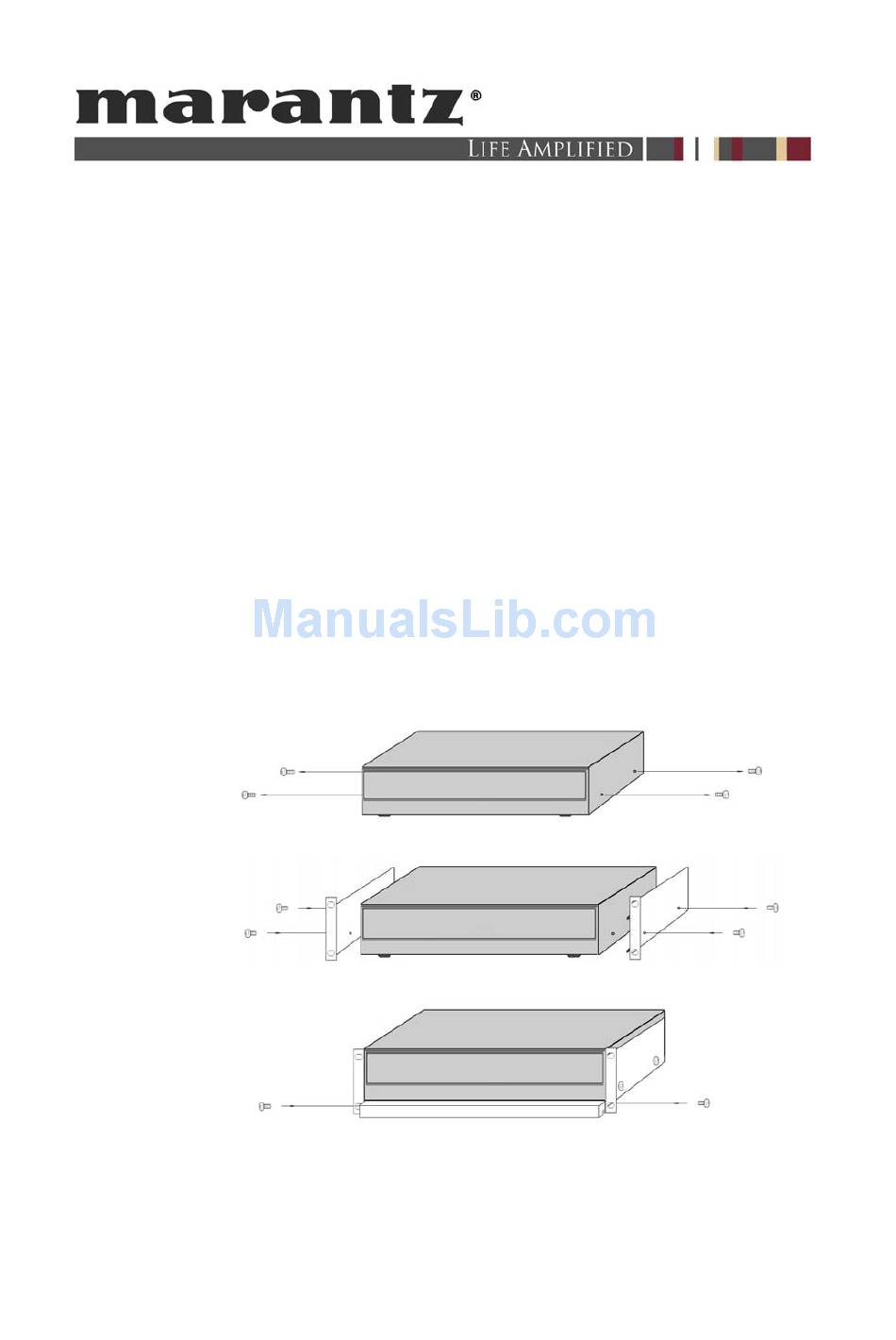

Figure A
Figure B
Figure C
Marantz America, Inc. • 100 Corporate Dr., Mahwah, NJ 07430 • (201) 762-6500
Installation Instructions
***Warning: Do not remove the cover of the unit***
(Figure B).
