Easy and Precise!
Announcing the new long sensing range coaxial retroreflective type with a 30 m
sensing range, and the spot reflective type with Class 1 level of safety
User-friendly, high precision laser sensing!

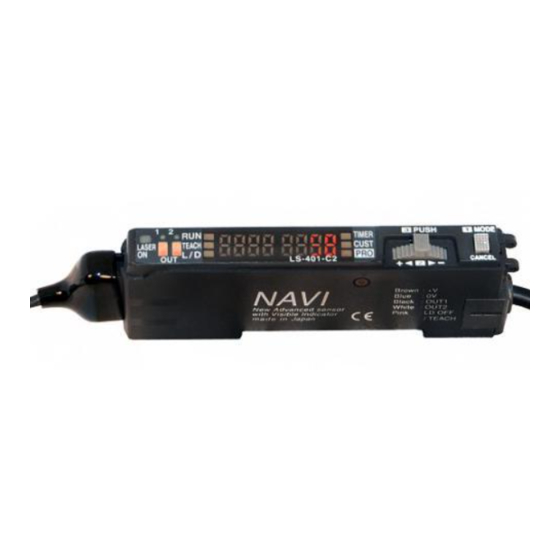

DIGITAL LASER SENSOR
LS
SERIES
Conforming to
EMC Directive
PHOTOELECTRIC SENSOR
FDA
(LS-H F only)
UL Recognition
98.425 ft

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunx LS Series

Summary of Contents for Sunx LS Series

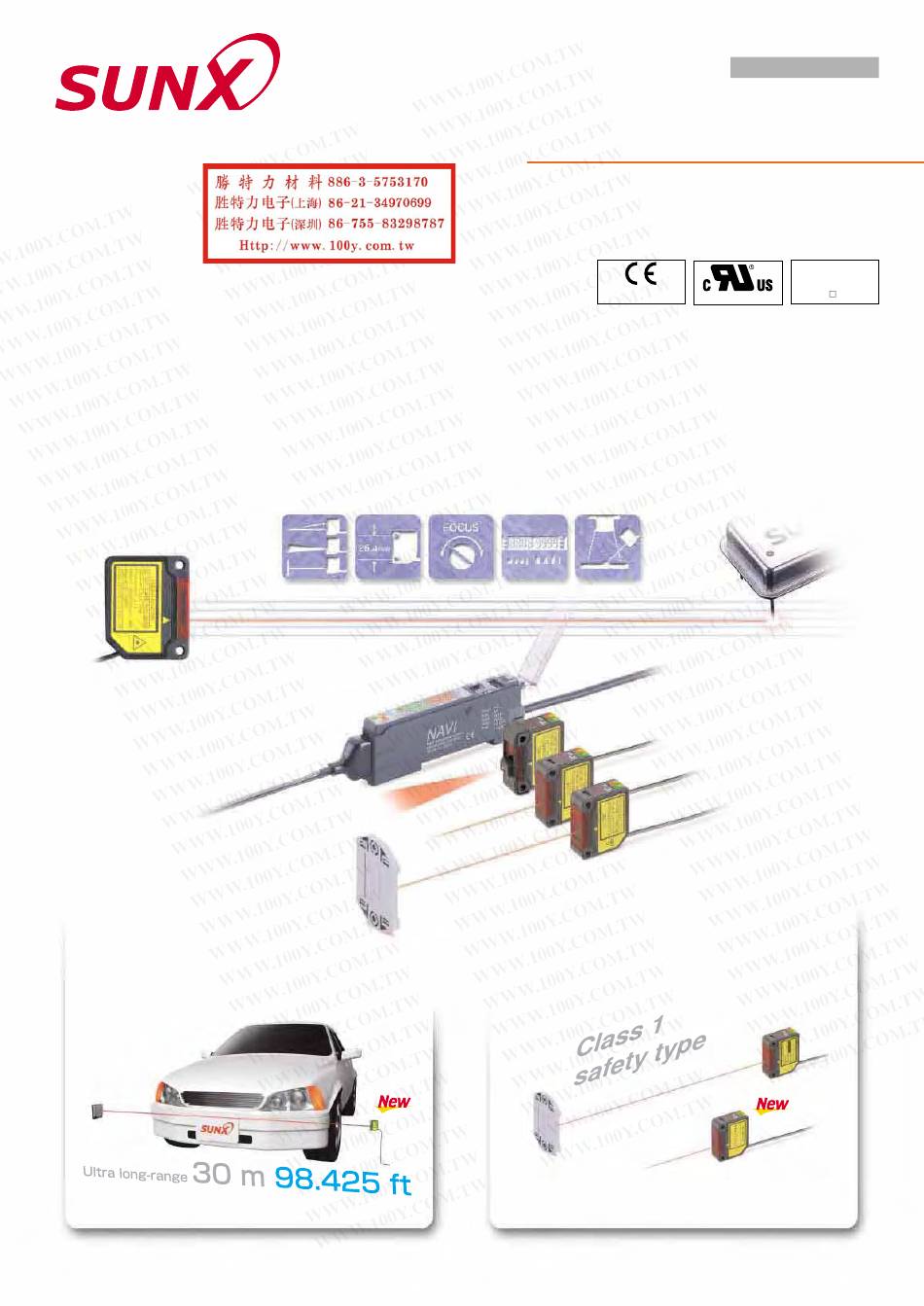

  • Page 1 PHOTOELECTRIC SENSOR DIGITAL LASER SENSOR SERIES Conforming to (LS-H F only) UL Recognition EMC Directive Easy and Precise! User-friendly, high precision laser sensing! Announcing the new long sensing range coaxial retroreflective type with a 30 m 98.425 ft sensing range, and the spot reflective type with Class 1 level of safety...
  • Page 2 Beam axis alignment is easy 3.281 ft sensing range), so it can measure amounts . This based on research conducted by SUNX) center light intensity using the bright spot light. remaining on sheet rolls with high precision.
  • Page 3 Easy 1 Installation Easy installation We designed 3 types of sensor heads about the same size as general purpose photoelectric sensors. 25.4 mm 1.000 in RF-230 Easy 2 Adjustment Easy adjustment Spot shape adjustment made simple. 30 m (98.425 ft) A spot diameter of approx.

  • Page 4: Easy Installation

    Easy Installation Sensor heads are designed approximately the same size as Easy installation general purpose photoelectric sensors and the mounting method is identical. (Long sensing range spot reflective / Long sensing range line reflective / Coaxial retroreflective types) Long sensing range line reflective type: LS-H22 Long sensing range spot reflective type: LS-H21(-A) Coaxial retroreflective type: LS-H91(-A), LS-H92 General purpose photoelectric sensor...

  • Page 5: Easy Adjustment

    Easy Adjustment Easy adjustment Spot shape adjustment made simple. The spot shape can be adjusted according to the object. Easy adjustment while viewing the spot. Laser emission indicator Operation indicator Spot-shape adjuster Highly reliable built-in multiple turn-type knob allows you to adjust the spot shape easily. Spot-shape adjuster (multiple turn) Spot shape adjustment possible...

  • Page 6: Easy Operation

    Easy Operation Uses MODE NAVI, highly praised in the FX-300 series digital Easy operation fiber sensors. Besides featuring a dual display screen that shows the incident light intensity and threshold value simultaneously, it also offers both multi-functionality and superior operability. 10 mm 0.394 in thickness...
  • Page 7 Also, LS series sensors can be connected side-by- emission halting is to be carried out, or when using side with FX-300 series fiber sensors.
  • Page 8 Easy High Performance Easy to use complex functions Handy functions made simple for easy, on-site use. Accurately sense the minutest variations (M.G.S. function) New proposal When sensing at close range or when the target objects are transparent or minute, adjust the sensor receiving sensitivity to one of 3 levels for the optimal setting.
  • Page 9 MODE NAVI customized function New proposal Because one of frequently used functions (response time, M.G.S. function, data bank load, emission halt function and Response time D-CODE values) can be stored in CUSTOM mode, the settngs are changed easily. CUSTOM mode M.G.S.

  • Page 10: Order Guide

    ORDER GUIDE Sensor heads : U-LG Conforming : STD Type Appearance Model No. Sensing range : FAST standards : H-SP JIS / IEC / GB 0.2 to 30 m 0.656 to 98.425 ft (Note 2) LS-H92 0.2 to 20 m 0.656 to 65.617 ft (Note 2) 0.2 to 10 m...

  • Page 11: End Plates

    ORDER GUIDE Amplifiers Type Appearance Model No. Output Connection method NPN open-collector LS-401 transistor two outputs Use quick-connection cable (4-core) Connector type (optional) PNP open-collector LS-401P transistor two outputs NPN open-collector LS-401-C2 transistor two outputs Cable type 6.562 ft cabtyre cable (5-core) included Cable outer diameter: "3.7 mm "0.146 in (With external input)
  • Page 12 OPTIONS Sensor head mounting bracket Designation Model No. Description • MS-CX-1 • MS-CX-2 Two M3 (length 12 mm 0.472 Two M3 (length 12 mm 0.472 screws with washers are attached. screws with washers are attached. Foot angled mounting bracket MS-CX-1 Foot biangled mounting bracket Flat mounting possible to avoid obstructions caused by the height of MS-CX-2...

  • Page 13: Specifications

    SPECIFICATIONS Sensor heads Coaxial retroreflective Diffuse reflective Type Long sensing range spot reflective Long sensing range Class 2 Class 1 line reflective Long sensing range Class 2 Class 1 IEC / JIS / GB standards conformi n g type LS-H22 (Note 3) LS-H92 LS-H91 LS-H91-A...
  • Page 14 SPECIFICATIONS Amplifiers Type Connector type Cable type NPN output LS-401 LS-401-C2 Item PNP output LS-401P LS-401P-C2 Supply voltage 12 to 24 V DC 10 % Ripple P-P 10 % or less Normal operation: 950 mW or less (Current consumption 40 mA or less at 24 V supply voltage) Power consumption ECO mode: 780 mW or less (Current consumption 33 mA or less at 24 V supply voltage) <...
  • Page 15 I/O CIRCUIT AND WIRING DIAGRAMS NPN output type Color code of cable type / I/O circuit diagram Wiring diagram quick-connection cable Terminal No. of connector type Color code of cable type / quick-connection cable Brown (Note 1) (Brown) V (Note 1) Load Load (Black) Output 1...

  • Page 16: Precautions For Proper Use

    PRECAUTIONS FOR PROPER USE Sensor head • This catalog is a guide to select a suitable product. Be sure to read the instruction manual attached to the product prior to its use. • The tightening torque should be 0.5 N m or less. Never use this product as a sensing device for personnel •...
  • Page 17 , or more, cable. However, in order to reduce noise, make the wiring as short as possible. MENSIONS (Unit: mm in) The CAD data in the dimensions can be downloaded from the SUNX website: hjp/ LS-H91(-A) LS-H92 Sensor head Sensor head...
  • Page 18 DIMENSIONS (Unit: mm in) LS-401 LS-401-C2 Amplifier Amplifier LS-401P LS-401P-C2 58.7 2.311 0.472 58.7 30.85 2.311 0.472 1.215 30.85 0.106 Select 2 indicator (Yellow) 1.215 0.331 5.15 0.203 0.106 Select 2 indicator (Yellow) 0.331 Select 1 indicator (Yellow) 5.15 0.203 MODE key Select 1 indicator (Yellow) Laser emission indicator (Green)
  • Page 19 MENSIONS (Unit: mm in) The CAD data in the dimensions can be downloaded from the SUNX website: hjp/ Reflector (Accessory for LS-H91 ) Reflector (Optional) RF-330 RF-310 2-"3.2 "0.126 1.181 0.217 mounting holes 0.472 0.945 0.165 2-"3.2 0.126 0.315 0.157 mounting holes 0.276...

  • Page 20: Assembly Dimensions

    DIMENSIONS (Unit: mm in) MS-RF23 Reflector mounting bracket for RF-230 (Optional) Assembly dimensions 1.575 0.177 1.575 0.118 0.394 0.177 0.433 28.3 19.3 1.114 1.969 0.760 0.394 1.575 0.197 50.3 0.327 1.980 0.630 0.591 2.402 1.378 49.3 0.709 1.941 61.3 t 0.079 2.413 0.472 0.276...
