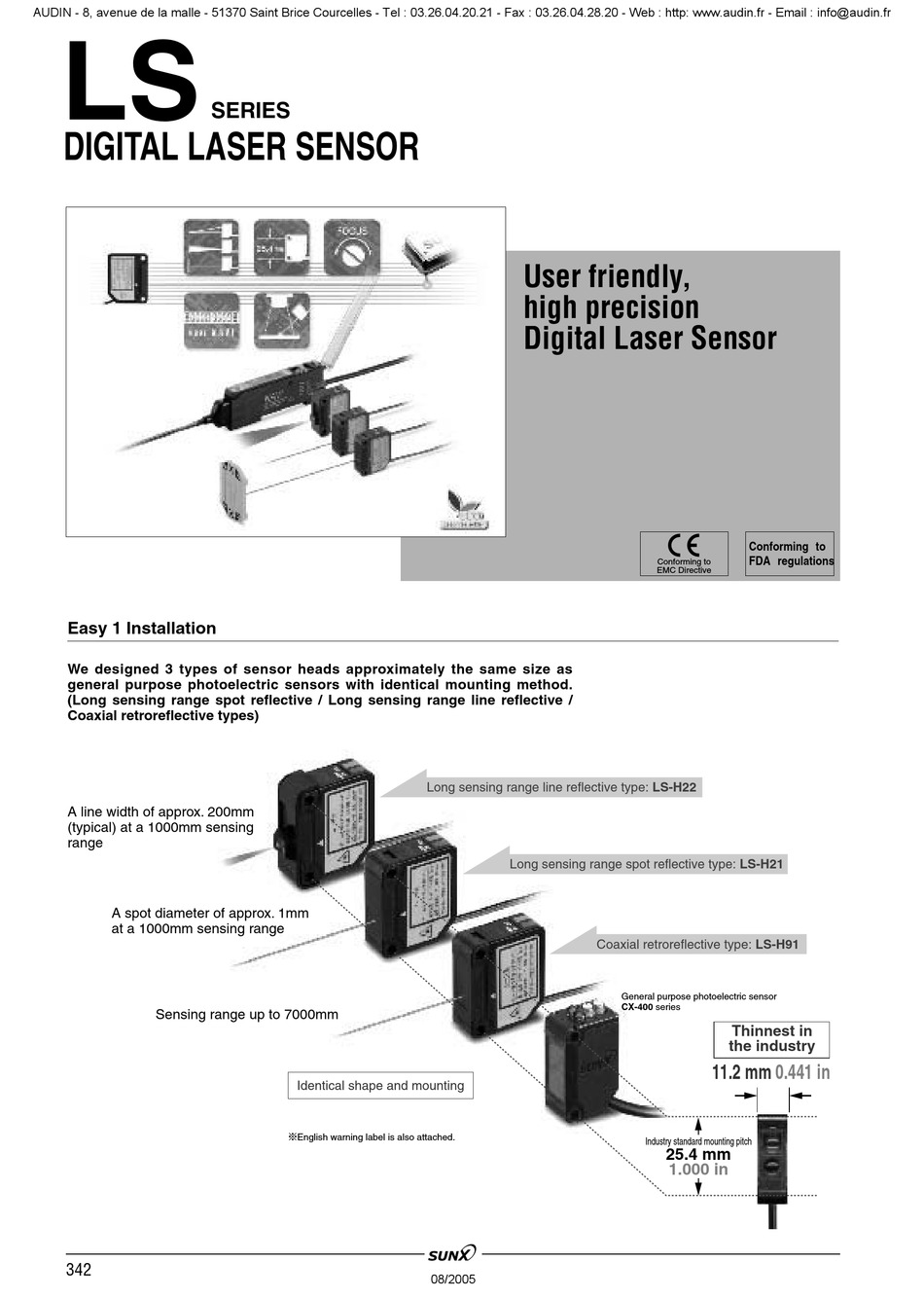

LS
DIGITAL LASER SENSOR
Easy 1 Installation
We designed 3 types of sensor heads approximately the same size as
general purpose photoelectric sensors with identical mounting method.
(Long sensing range spot reflective / Long sensing range line reflective /
Coaxial retroreflective types)
A line width of approx. 200mm
(typical) at a 1000mm sensing
range
A spot diameter of approx. 1mm
at a 1000mm sensing range
Sensing range up to 7000mm
342
SERIES
Identical shape and mounting
mEnglish warning label is also attached.
User friendly,
high precision
Digital Laser Sensor
Long sensing range line reflective type: LS-H22
Long sensing range spot reflective type: LS-H21
Coaxial retroreflective type: LS-H91
08/2005
Multi-voltage
C onforming to
FDA regulations
Conforming to
EMC Directive
General purpose photoelectric sensor
CX-400 series
Thinnest in
the industry
11.2 mm
Industry standard mounting pitch
25.4 mm
1.000 in
0.441 in
