Summary of Contents for V-ZUG V6000 A905

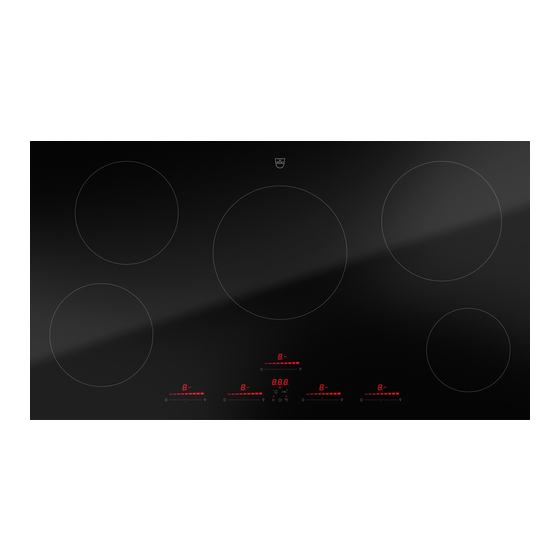

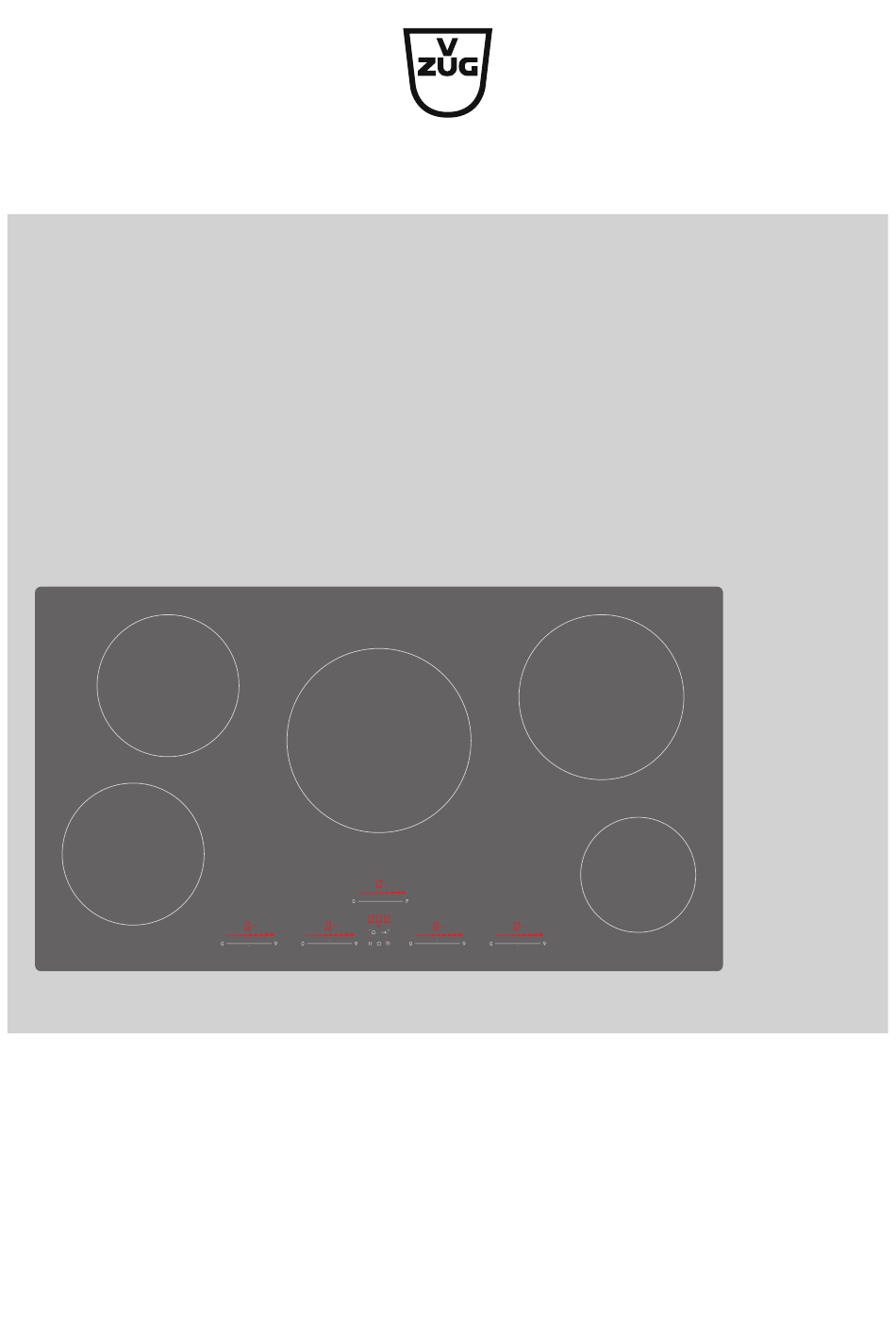

- Page 1 Operating instructions CookTop V6000 A905 Toptronic hob...
- Page 2 Validity These operating instructions apply to: Model designation Type CookTop V6000 A905 CT6T-31155 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2022...
-
Page 3: Table Of Contents
Contents 2 Disposal 19 Safety precautions 4 Index 20 Symbols used............ 4 Notes 21 General safety precautions........ 4 Service & Support 23 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Using for the first time 8 Your appliance 8 Appliance overview .......... -
Page 4: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions ▪ WARNING: The appliance Instructions for use and its accessible parts get Before using for the first time ▪ The appliance must be installed and hot during use. Be careful not connected to the electricity supply in to touch the heating ele- accordance with the separate installa- ments. - Page 6 1 Safety precautions ▪ The heated surface will remain hot for How to avoid damaging the appliance some time after it is switched off and ▪ In case of overheating, switch the hot- will cool down only slowly to room tem- plate off and allow it to cool down com- perature.
- Page 7 1 Safety precautions ▪ There is no such thing as completely scratch-proof glass; scratches can even develop on sapphire glass, which is used in watches. The glass ceramic used is of the best quality available on the market.
-
Page 8: Using For The First Time
Using for the first time The appliance must be installed and connected to the electricity supply in accord- ance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. -
Page 9: Cookware
4 Operating the appliance Display Cooking zone power level Pause activated / Restore available Operating time activated Timer activated Activated operating time for the Operating time / timer cooking zone Power level Wipe protection activated Corresponding cooking zone for slider Cookware Suitable cookware Cookware should have a stable bottom. -
Page 10: Overview Of Power Levels
4 Operating the appliance Overview of power levels Power level Cooking method Melting, gentle warming Butter, chocolate, gelatine, sauces Swelling Rice Continue cooking, reducing, Vegetables, potatoes, sauces, fruit, fish stewing, steaming Continue cooking, braising Pasta, soup, braised meat Gentle frying Rösti, omelettes, breaded fried foods, sausages Frying, deep frying... -
Page 11: Operating Time
4 Operating the appliance Switching the automatic boost on ▸ Hold the required power level on the slider depressed for 3 seconds. – and the power level illuminate alternately in the display when the automatic boost is activated. – After the automatic boost, the heat output is reduced back to the power level selec- ted. -
Page 12: Timer
4 Operating the appliance Several operating times If operating times are set for several cooking zones, – the shortest operating time illuminates in the display. – the corresponding cooking zone indicator light illuminates. – the symbol illuminates with the set operating time for each cooking zone. To display another operating time: ▸... -
Page 13: Restore Function
4 Operating the appliance Operating the appliance with the childproof lock activated ▸ Switch the appliance on. ▸ Touch the buttons at the same time. – An acoustic signal is emitted. – The childproof lock is overridden. The appliance can now be used as normal. The childproof lock is automatically reactivated 1 minute after switching off the hob. -
Page 14: User Settings
5 User settings Touch the button to switch the appliance off at any time. User settings The following user settings can be set and saved individually: User setting Setting value Factory setting Acoustic signal loudness Medium High Acoustic signal at No acoustic signal end of operating Automatically off after 10 secs. -
Page 15: Cancelling User Settings
6 Care and maintenance ▸ To save entries: Hold the button depressed for 2 seconds. – An acoustic signal is emitted. – The «User settings» mode is ended. Cancelling user settings ▸ Press the button. – Any changes made to the default values are not saved. –... -
Page 16: Cleaning Agent
7 Trouble-shooting ▸ Add a few drops of a suitable Cleaning agent (see page 16) to the cold hob surface and rub over the surface using kitchen towel or a clean cloth. ▸ Wipe off with a wet cloth and then polish with a dry cloth or the soft side of a suitable cleaning sponge. - Page 17 7 Trouble-shooting Display Possible cause Solution A continuous acoustic ▪ A button or a slider was ▸ Remove object or food signal is emitted, touched for longer than that has boiled over. flashes and the appli- 10 seconds. ▸ The appliance can be ance switches off ▪...
-
Page 18: Other Possible Problems
8 Technical data Power level Safety shut-off after hrs.:mins. 2:00 8:30 6:30 5:30 4:30 3:30 3:00 2:30 2:00 1:30 Other possible problems Problem Possible cause Solution The appliance is not ▪ The fuse or circuit breaker for ▸ Change the fuse. working and all the dis- electrical installations in the ▸... - Page 19 9 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
- Page 20 Index Switching on .......... 10 Problems ............16 Appliance Product fiche............. 18 Disposal............ 19 Switching off .......... 24 Switching on .......... 24 Queries .............. 23 Switching on and off ........ 9 Quick instructions ..........24 Appliance overview ..........8 Appliance-specific safety precautions ................
- Page 21 Notes...
- Page 23 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 24 ▸ Touch on the slider. To switch appliance off ▸ Touch the button. 1097875-02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
