- Page 1 Operating instructions CookTop V6000 A804B | A904B Toptronic hob...
- Page 2 Validity These operating instructions apply to: Model designation Type CookTop V6000 A804B CT6T-31153 CookTop V6000 A904B CT6T-31154 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2022...
-
Page 3: Table Of Contents
Contents Product fiche ............ 20 2 Disposal 20 Safety precautions 4 Index 22 Symbols used............ 4 General safety precautions........ 4 Service & Support 23 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Using for the first time 8 Your appliance 8 Appliance overview .......... -
Page 4: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions ▪ WARNING: The appliance Instructions for use and its accessible parts get Before using for the first time ▪ The appliance must be installed and hot during use. Be careful not connected to the electricity supply in to touch the heating ele- accordance with the separate installa- ments. - Page 6 1 Safety precautions ▪ The heated surface will remain hot for How to avoid damaging the appliance some time after it is switched off and ▪ In case of overheating, switch the hot- will cool down only slowly to room tem- plate off and allow it to cool down com- perature.
- Page 7 1 Safety precautions ▪ There is no such thing as completely scratch-proof glass; scratches can even develop on sapphire glass, which is used in watches. The glass ceramic used is of the best quality available on the market.
-
Page 8: Using For The First Time

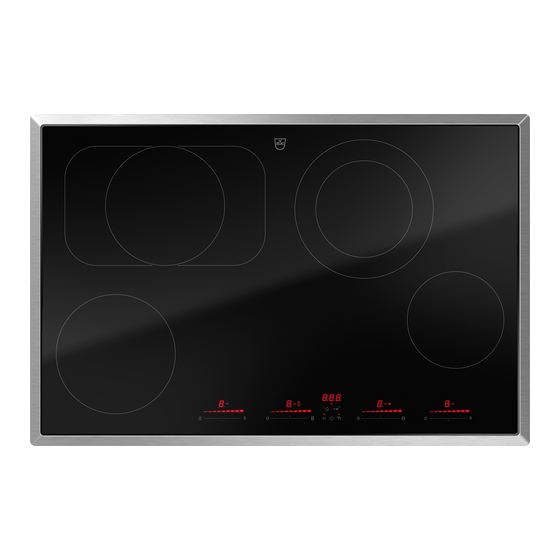

During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. Ensure that the room is well ventilated. Your appliance Appliance overview CookTop V6000 A804B ▪ 1 frying zone ø170×290 ▪ 1 dual ring cooking zone ø140/210 ▪ 1 cooking zone ø180 ▪... -
Page 9: Cookware
▪ Match the diameter of the cookware to the quantity of food to be cooked. OptiGlass Applies to CookTop V6000 A804B (CT6T84MSOD7) Hobs with OptiGlass have an additional coating on the glass surface. This coating makes the surface harder, tougher and more scratch resistant than non- coated glass surfaces. -
Page 10: Operating The Appliance
4 Operating the appliance Illumination ▸ Halogen or LED light bulbs are recommended for illuminating hobs with the OptiGlass coating. The use of fluorescent tube lighting to illuminate hobs with the OptiGlass coating causes the glass surface to shimmer. Operating the appliance Switching the appliance on and off ▸... -
Page 11: Switching The Dual Ring Cooking / Frying Zone On And Off
4 Operating the appliance Switching the dual ring cooking / frying zone on and off When the dual ring cooking / frying zone is switched on, only the inner cooking zone A or C comes on. The outer cooking rings B and D can also be switched on if required. -
Page 12: Operating Time
4 Operating the appliance Switching the automatic boost on ▸ Hold the required power level on the slider depressed for 3 seconds. – and the power level illuminate alternately in the display when the automatic boost is activated. – After the automatic boost, the heat output is reduced back to the power level selec- ted. -
Page 13: Timer
4 Operating the appliance Several operating times If operating times are set for several cooking zones, – the shortest operating time illuminates in the display. – the corresponding cooking zone indicator light illuminates. – the symbol illuminates with the set operating time for each cooking zone. To display another operating time: ▸... -
Page 14: Restore Function
4 Operating the appliance Operating the appliance with the childproof lock activated ▸ Switch the appliance on. ▸ Touch the buttons at the same time. – An acoustic signal is emitted. – The childproof lock is overridden. The appliance can now be used as normal. The childproof lock is automatically reactivated 1 minute after switching off the hob. -
Page 15: User Settings
5 User settings ▸ Wipe protection is switched off by touching the button again or automatically after 30 seconds. Touch the button to switch the appliance off at any time. User settings The following user settings can be set and saved individually: User setting Setting value Factory... -
Page 16: Cancelling User Settings
6 Care and maintenance ▸ Touch or swipe slider 1 to select a higher or lower setting value. ▸ To save entries: Hold the button depressed for 2 seconds. – An acoustic signal is emitted. – The «User settings» mode is ended. Cancelling user settings ▸... -
Page 17: Cleaning Agent
6 Care and maintenance ▸ Add a few drops of a suitable Cleaning agent (see page 17) to the cold hob surface and rub over the surface using kitchen towel or a clean cloth. ▸ Wipe off with a wet cloth and then polish with a dry cloth or the soft side of a suitable cleaning sponge. -
Page 18: Trouble-Shooting
7 Trouble-shooting Trouble-shooting You may be able to trouble-shoot the following errors yourself. If not, note down the error message in full (message and E numbers) and then call Customer Services or report it to us online. Error messages Display Possible cause Solution illuminates... -
Page 19: Other Possible Problems
7 Trouble-shooting Display Possible cause Solution illuminate ▪ An object (e.g. paper) under- ▸ Remove any objects in the neath the hob is obstructing drawer underneath the the air intake. hob. ▸ Touch any button to ac- knowledge the error. ▸... -
Page 20: Technical Data
8 Technical data Technical data Product fiche In accordance with EU Regulation No. 66/2014 Model number GK 31153 Type designation GK CT6T-31153 Number of cooking zones Heating technology Radiant cooking zone Dimensions of cooking zone ø18 17×29 ø14/21 ø14 Energy consumption per cooking Wh/kg 195.1 202.5... - Page 21 9 Disposal Disposal The «crossed‐out wheeled bin» symbol requires the separate collection of waste ▪ electrical and electronic equipment (WEEE). Such equipment can contain hazardous, environmentally harmful materials. ▪ These appliances are to be handed over to a designated collection point for the recyc- ling of electrical and electronic equipment and must not be disposed of with unsorted household waste.
- Page 22 Index Queries .............. 23 Appliance Quick instructions ..........24 Disposal............ 21 Switching off .......... 24 Switching on .......... 24 Switching on and off ........ 10 Residual heat indicator ........10 Appliance overview ..........8 Restore function ..........14 Appliance-specific safety precautions ................
- Page 23 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 24 ▸ Touch on the slider. To switch appliance off ▸ Touch the button. 1097871-02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
