- Page 1 Light GT Modell SXT LIGHT GT Manual - Version Download SXT_MALGHTGT_V1.2 Current manual...
-
Page 2: Table Of Contents
CONTENT Seite Scope of delivery Technical specifications Important information Before starting the journey Vehicle parts Controls on the handlebar Unfold Fold Identifiation number Before using the battery Charge battery Maintenance and care Troubleshooting Recycling batterie Warranty Customer Service/Repair | 2 | MANUAL... -
Page 3: Scope Of Delivery
SCOPE OF DELIVERY Scooter Tires with mudguards Refl ectors Charger Display Manual | 3 | MANUAL... - Page 4 | 4 | MANUAL...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Street-legal: no Max. range (in km - at 22°C / load capacity 70 kg): 50 Max. Speed (in km/h): 40 Rated motor power (in watts): 700 Speed levels km/h: 6 | 20 | 25 | 35-40 Drive type: Brushless hub motor Max. -
Page 6: Important Information
This manual has been written to help you, the buyer, quickly and easily understand how to use and maintain the SXT LIGHT GT accurately & safely. It is important that you understand all the points and features of your new SXT LIGHT GT so that you can enjoy riding your new electric scooter from the very first minute. - Page 7 IMPORTANT INFORMATION 1. The SXT LIGHT GT may only be driven from 14 years and is not approved for road traffic. Never use the vehicle with 2 people at the same time. 2. Always check the vehicle before driving it. Regular maintenance and care minimize the risk of damage, accidents and possible injuries.
-
Page 8: Before Starting The Journey
Formula 1 car. 2. The SXT LIGHT GT also has a conventional mechanical foot brake at the rear. Through the mechanical brake, the scooter is braked at the rear axle. No matter what situation you are in - if the first system fails, you still have the mechanical foot brake on the rear axle available in any case. - Page 9 Battery and charge The SXT LIGHT GT is equipped with a special lithium polymer battery and a special smart charger. These accessories, supplied with each scooter, have their own number. Please do not use other brands of chargers.
-
Page 10: Vehicle Parts

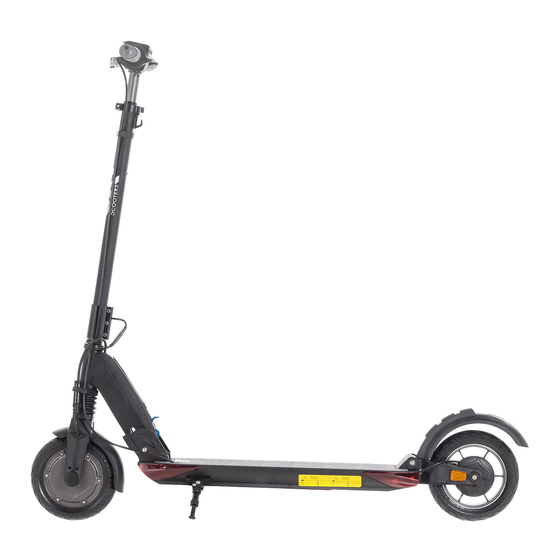

VEHICLE PARTS UBHI (Display) LED Headlight Lock lever Folding hook Battery charging socket Rear brake Folding lever Side stand | 10 | MANUAL... -
Page 11: Controls On The Handlebar
CONTROLS ON THE HANDLEBAR Battery charge level Speed Temperature display Shows the total and daily trip distance (From left to right: total, trip) Horn On/Off Memory Thumb- On/Off thumb- Light button brake lever Switch throttle lever [LIGHT] [SET] | 11 | MANUAL... - Page 12 CONTROLS ON THE HANDLEBAR ON/OFF Press the switch for 1 second, the display lights up to indicate that the vehicle is activated. Press for 3 seconds to turn off the vehicle. If the scooter is not used for 3 minutes, it will automatically turn OFF. Speed control Press the right thumb throttle to accelerate the scooter.
- Page 13 CONTROLS ON THE HANDLEBAR SET SPEED LIMIT • Switch off the scooter (on/off switch) • Press and hold thumb brake • Switch on the scooter (on/off switch) • L1” appears in the display • Use the [LIGHT] button L1-L2-L3-L4 to switch to the menu L1 = Limitation of the speed to 6 km/h L2 = Limitation of the speed to 20 km/h L3 = Limitation of speed to 25 km/h...
-
Page 14: Unfold
UNFOLD Folded handles Fully Unfolded Completely folded | 14 | MANUAL... - Page 15 UNFOLD Push down the rear mudguard in the direction of the arrow, (fig. A), until the safety hook is released from the lock. Then fully straighten the handlebar until it reaches the normal riding position and the locking bolt engages - (fig. B). - Fig.
-
Page 16: Fold
FOLD FOLDING Push the quick release in the direction of the arrow as shown in (fig. A). 2. Unlock the handlebars (fig. B) and push them all the way down (fig. C). - Fig. A - - Fig. B - - Fig. - Page 17 FOLD - Fig. E - - Fig. F - 4. Then fold the two handles down (fig. E and F). 5. Now push the handlebar all the way down until the safety hook rakes into the mudguard, (fig. G). - Fig. G - | 17 | MANUAL...
-
Page 18: Identifiation Number
Make a note of the vehicle identification number of your e-scooter. Keep it in a safe place. Each SXT LIGHT GT has an individual number. This can be used to clearly identify your vehicle, e.g. in the event of theft. -
Page 19: Before Using The Battery
BEFORE USING THE BATTERY Before you use the scooter, please make sure that it is the original battery of the vehicle. Please do not use a battery of other brands or other models. Check that the battery is in good condition externally, and make sure there is no damage, leakage, heat generation, water ingress, smoke and other obvious phenomena. -
Page 20: Charge Battery
CHARGE BATTERY 1. Connect the charger to a standard power unit, then connect the charger cable to your SXT scooter. When everything is connected, the indicator light on the charger will to green. At this turn on. The battery is full when the indicator light changes from time, you can remove the charger and place the protective cover on charging socket. - Page 21 CHARGE BATTERY Charging information for lithium batteries: Lithium batteries should never be deep discharged, this will irreparably damage the lithium cells. All lithium batteries should (if possible) always be stored at medium charge. If a battery is not needed for a long time, please do not fully charge it before- hand - this puts the lithium cells in unnecessary „stress“...
- Page 22 CHARGE BATTERY Please keep the battery Please keep the battery from getting wet with from heat sources, open water, drinks and corrosive fire, flammable and liquids. and explosive gases (liquids). Please use the original Do not charge for longer charger matching the than 12 hours so as not to battery for charging and affect the battery life.
- Page 23 CHARGE BATTERY In the initial stage of charging, the amount of current increases rapidly, but in the next stage, it increases slowly; this is the procedure set for charging safety and is a normal phenomenon. During charging in winter, when the outdoor temperature is low and the ambient tem- perature is below 0°...
- Page 24 CHARGE BATTERY Precautions for the battery Make sure that the battery was exhausted the first time you use it, then charge it and repeat this process two or three times to make sure that the actual capacity of the battery matches the capacity shown on the display. Make sure that the battery power is not less than 20% and recharge it in time to pro- long the battery life.
- Page 25 CHARGE BATTERY 1. The safety guard/splash guard for the charging port should be replaced after the scooter has been charged. 2. The scooter should be kept out of the reach of children during charging. children during the charging process. 3. Under no circumstances should a charger other than the one supplied be used to charge the scooter.
-
Page 26: Maintenance And Care
The water on the braking surfaces will reduce the braking performance for a short time. Please keep your SXT LIGHT GT away from sun and rain. Regularly check the screws and small parts on your scooter. Do not use alcohol, gaso- line, acetone or other chemical solvents to clean the scooter, as it may corrode. - Page 27 MAINTENANCE AND CARE Lubrication Apply a little grease to the joints of the folding mechanism of the handlebar grips every 6 months. Check the vehicle regularly for loose screw connections. Battery The lithium polymer battery included in the package can be recharged at least 500 times. With normal use, maintenance and care, approximately 1,000 full charge cycles may be possible.
-
Page 28: Troubleshooting
TROUBLESHOOTING Checklist If there is any problem with our product, please pay attention to the following things: LCD display shows only black Reason: too long storage in intense sunlight. Solution: Put the vehicle out of sun - after some time the LCD display will work completely normal again. -
Page 29: Recycling Batterie
RECYCLING BATTERIE When properly maintained and used (in accordance with the guidelines for loading and storage), the battery will have a normal life of two to three years. If the battery can not be recharged or charged properly, it should be removed from the Scooter and disposed of a recycling facility. -
Page 30: Warranty
WARRANTY Thank you for choosing one of our SXT LIGHT GT. You have a warranty of 24 months on your scooter from the date of purchase. Please note that there is no warranty if: The warranty period has expired. If you do not have an invoice and your order has not been recorded in the system. -
Page 31: Customer Service/Repair
To avoid serious injury, repairs to the battery must only be carried out by trained personnel. If necessary, please contact your dealer or our technical support. WARNING You can find all spare parts and accessories on www.sxt-scooters.de CONTACT TECHNICAL SUPPORT POL-Planet GmbH & Co. KG. Marie-Curie Straße 2 • 79618 Rheinfelden Tel: +49(0)7623–460 460 •... - Page 32 POL-Planet GmbH & Co. KG. Marie-Curie Straße 2 79618 Rheinfelden • Tel: +49(0)7623 460 460 info@sxt-scooters.de www.sxt-scooters.de •...
