FrSky FAS7 ADV Lite Instruction Manual

Introduction

FrSky ADVANCE (ADV) series has comprehensive sensor types and enhanced the performance and capability
of the original sensor line, all ADV sensors fully support FBUS protocol and they are also S.Port compatible. With
the FBUS protocol, the ADV sensors can be seamlessly paired with the FBUS-capable receiver and further
simplifying the builds setup.

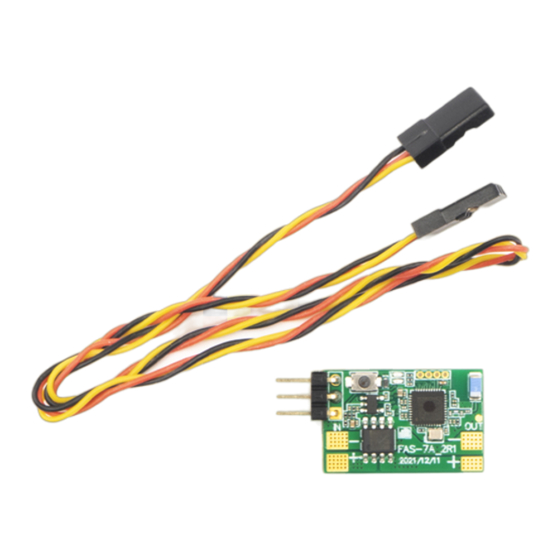

The FAS7 ADV Lite current sensor comes with a small dimension that can measure current up to 7 Amps with an
accuracy tolerance of +/- 0.1 Amp. This is a really useful sensor, an obvious choice for accurate measurement of
low current loads on Glider servos.

Overview

Specifications

● Dimension: 20*13*6.1mm (L*W*H)
● Weight: 1.9g
● Measurement range: 0-7A (1%)
● Current consumption: 11mA@5V
● Maximum safe current: 7A
● Measuring voltage: ≤32V
● Supplying voltage (S.Port): 3.5-10V
● Compatible with FBUS/S.Port protocol

Protocol Smart Matching

Connect the output Port of the sensor to the receiver, select FBUS/S.Port on the receiver setup tool, the ADV
sensors in either mode can be automatically matched.

Set Up

FrSky Current Sensor – FAS7 ADV Lite is compatible with FrSky FBUS or S.Port capable receivers. For more
details, please refer to corresponding receiver instruction manual.
To the FrSky receivers
RECEIVER
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky
Current Sensor — FAS7 ADV Lite
20 mm
GREEN
RED
To other FrSky FBUS/S.Port
capable Sensor
www.frsky-rc.com Contact us: frsky@frsky-rc.com
Button
Version
1.0
