Introduction
Thank you for purchasing FrSkyCurrent Sensor – FAS7 ADV. It is designed for FrSky Smart Port (compatible with
SPORT/FBUS protocol) enabled system, and can measure Current (A) and Battery Voltage (V) when connected
between a Battery. In order to fully enjoy the benefit of it, please read the instruction manual carefully and set up the
device as described below.
Note: All instructions, warranties and other collateral documents are subject to change at the sole
discretion of FrSky Electronic Co., Ltd. For further information, please visit www.frsky-rc.com
and click the support tab for this product.

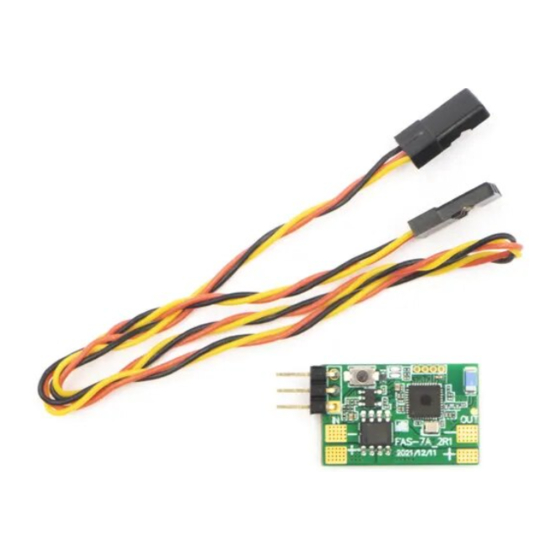

Overview
Specifications
• Dimension: 32.6×16×6.1mm (L×W×H)
• Weight: 2.1g
• Measurement range: 0-7A (±0.1A）
• Current consumption: 11mA@5V
• Maximum safe current: 7A
• Maximum battery voltage: 16V
• Compatible: FrSky Smart Port enabled receivers (compatible with SPORT/FBUS protocol)
Protocol switching
Connect the output Port of the sensor to the receiver, select SPORT/FBUS on the receiver setup screen, the sensor
will automatically recognize.
Set Up
FrSky Current Sensor – FAS7 ADV is compatible with FrSky Smart Port enabled receivers. For more details, please
refer to corresponding receiver instruction manual.
To the S.Port of
FrSky receivers
RECEIVER
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com

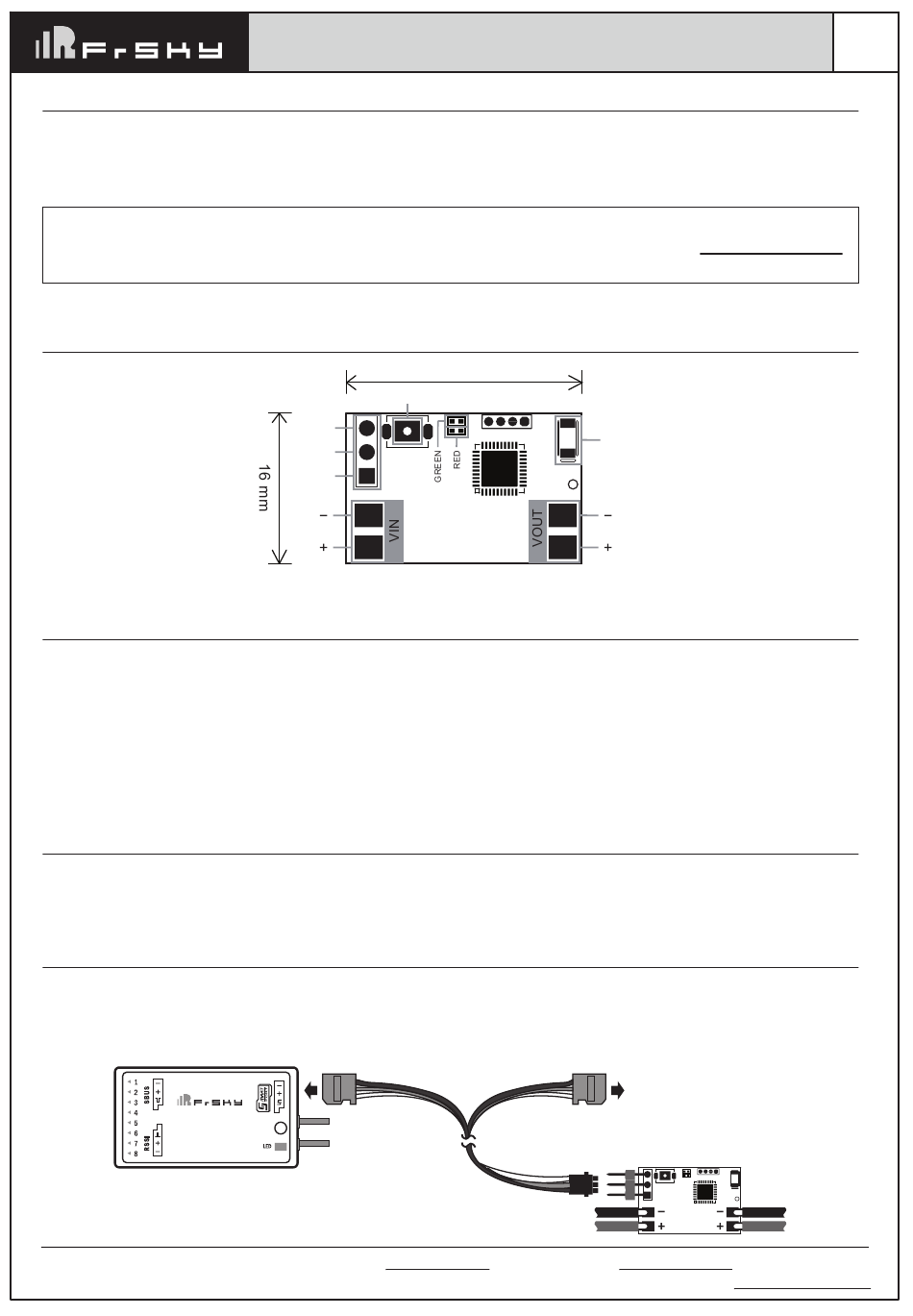

Instruction Manual for FrSky
Current Sensor — FAS7 ADV
25 mm
Button
S.Port
VIN
GND
www.frsky-rc.com
V D C G
Antenna
To other FrSky
S.Port Enabled Sensor
Contact us: frsky@frsky-rc.com
Version
1.0
V D C G
