FrSky X8R Instruction Manual

1.

Introduction

NOTICE: All instructions, warranties and other collateral documents are subject to change at the sole
discretion of FrSky Electronic Co., Ltd. For further information please visit https://www.frsky-rc
.com and click on the support tab for this product.
Thanks for purchase FrSky's GPS sensor. To maximize your enjoyment, and to ensure proper sensing, please
read through this manual thoroughly.
2.

Specifications:

● Mode: GPS Sensor (V2)
● Operational Voltage: DC 4 -10 V
● Current Draw: 80mA @5V
● Operating Temperature Range: -40 ℃ ~85 ℃
● Data Rate: 10Hz
● Time to fix: 30s cold
● Speed Accuracy: Approx 0.1m/s
● Dimensions: 40mm*20mm*9mm (L x W x H)
● Operation Limits: Dynamics 4g /Altitude 50,000m /Velocity 500m/s
● Compatibility: FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc.
3.

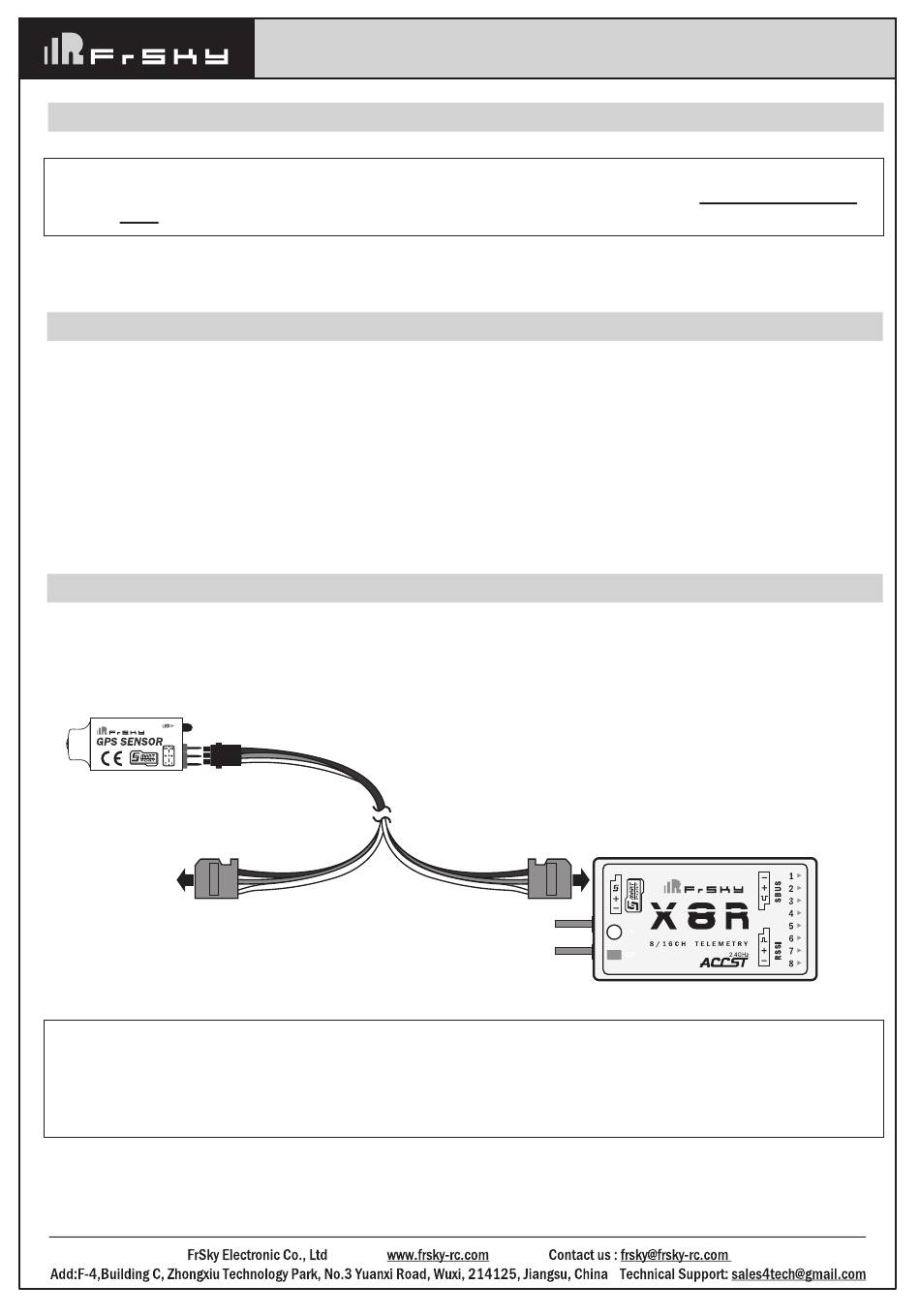

Set Up:

FrSky Smart Port GPS is only compatible with FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc..

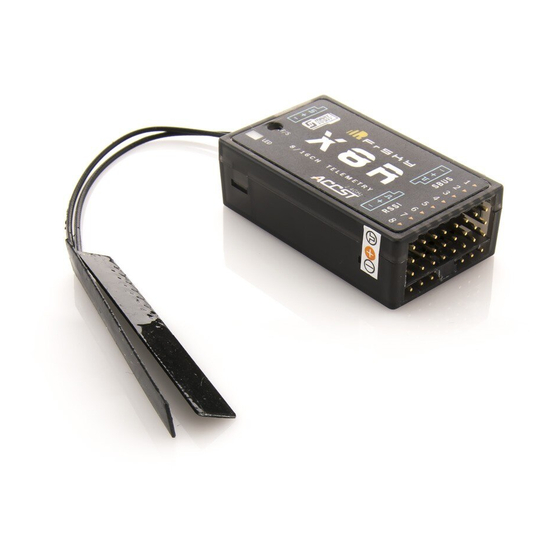

Here we take the setup together with X8R receiver for example. For more details, please refer to corresponding
receiver instruction manual.
S.Port 1/2
To other FrSky
S.Port Enabled Sensors
Warning: The GPS should be mounted with Velcro in your model so that the "UP" side is facing toward
the sky.
FrSky GPS Sensor (V2) - feeds variable directional information such as:
Altitude, position, speed, and UTC time etc., which is displayed in real time on FrSky
Transmitter or telemetry dashboard (DHT-U/FLD-02/FSD etc.).
Other FrSky S.Port enabled sensors including new Smart Port enabled Variometer Sensor, Lipo Voltage Sensor,
GPS Sensor, RPM Sensor, Airspeed Sensor, and so on.
Instruction Manual for FrSky GPS Sensor (V2)
01140015
● Interface: S.PORT
● Weight: 11.3g
● Sensitivity: -160dBm
● Antenna: Built-in patch
● Position Accuracy: Approx 2.5m CEP
To the S.Port of
FrSky X-Series Receivers
