FrSky FAS40 ADV Instruction Manual

FrSky FAS40 ADV Instruction Manual

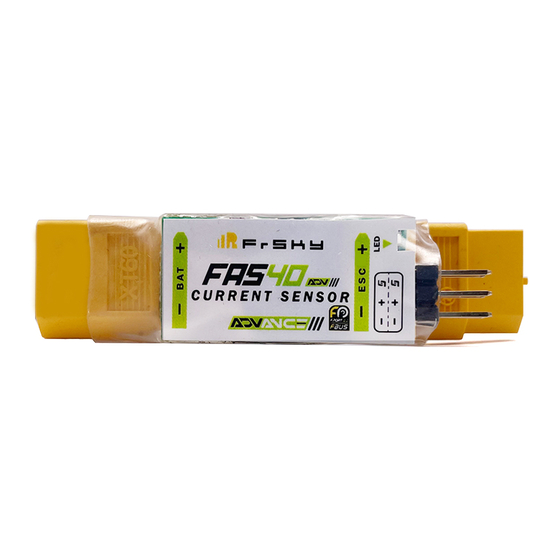

Current sensor

Advertisement

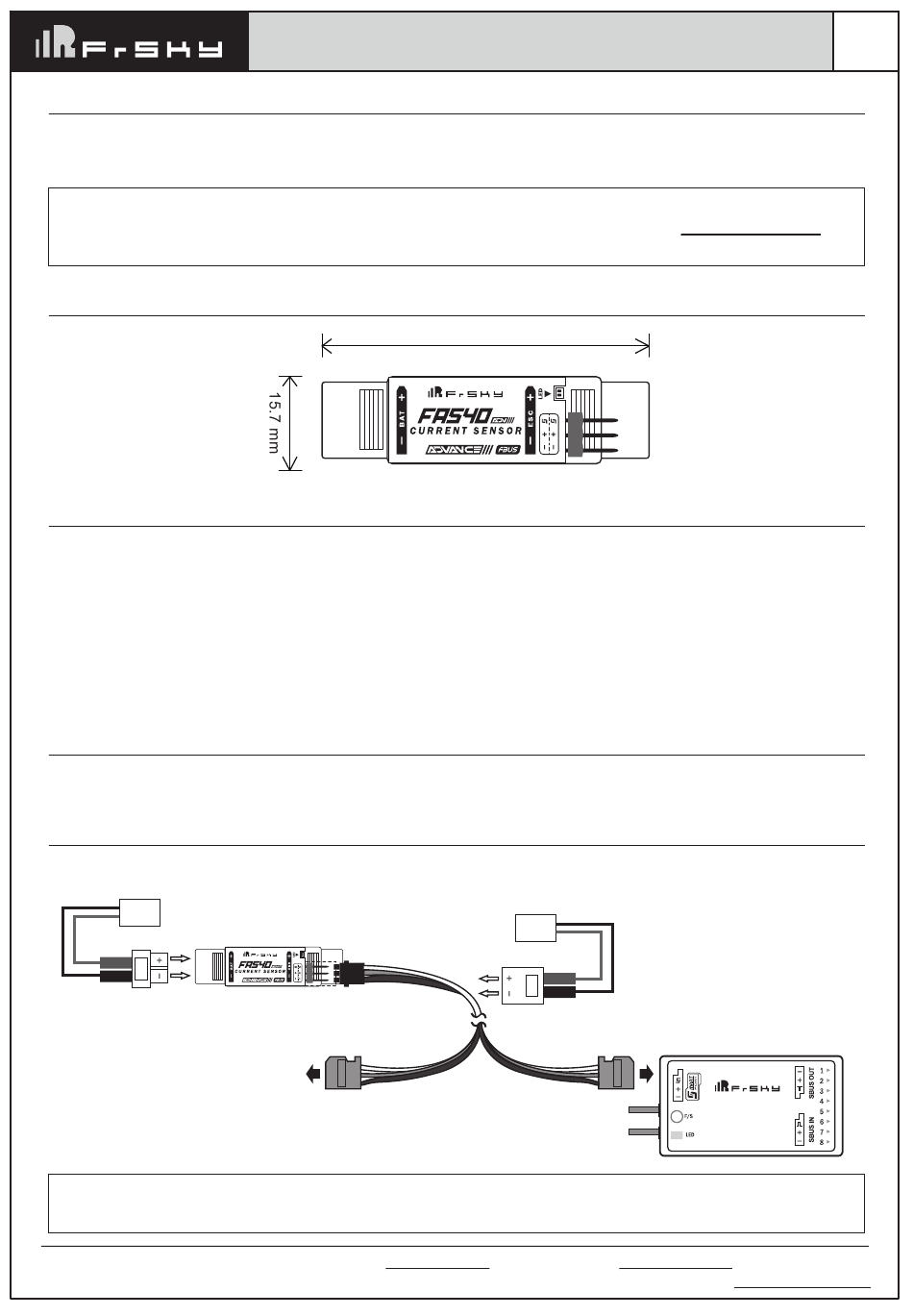

Introduction

Thank you for purchasing FrSky Current Sensor – FAS40 ADV. It is designed for FrSky Smart Port enabled system,
and can measure Current (A) and Battery Voltage (V) when connected between a Battery and ESC. In order to fully
enjoy the benefit of it, please read the instruction manual carefully and set up the device as described below.
Note: All instructions, warranties and other collateral documents are subject to change at the sole
discretion of FrSky Electronic Co., Ltd. For further information, please visit www.frsky-rc.com and
click the support tab for this product.

Overview

Specifications

• Dimension: 65.24*15.7*16.6mm (L*W*H)
• Weight: 16g
• Measurement range: 0~40A
• Current consumption:16mA@5V
• Maximum safe current: 40A
• Peak current: 60A
• Maximum battery voltage: 6S
• Compatible with FBUS/S.Port protocol
• Connector: XT60 Anti spark

Protocol switching

Connect the output Port of the sensor to the receiver, select Smart Port on the receiver setup screen, the sensor will
automatically recognize.

Set Up

FrSky Current Sensor – FAS40 ADV is compatible with FrSky Smart Port enabled receivers. For more details,
please refer to corresponding receiver instruction manual.
Bat
Warning: Install FrSky Current Sensor – FAS40 ADV on any appropriate surface of the airframe that
stays away from water, vibration, or fuel.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky
Current Sensor — FAS40 ADV
