Introduction
Thanks for purchase FrSky's GPS ADV sensor. To maximize your enjoyment, and to ensure proper sensing, please
read this manual thoroughly.
Note: All instructions, warranties and other collateral documents are subject to change at the sole
discretion of FrSky Electronic Co., Ltd. For further information, please visit www.frsky-rc.com and
click the support tab for this product.

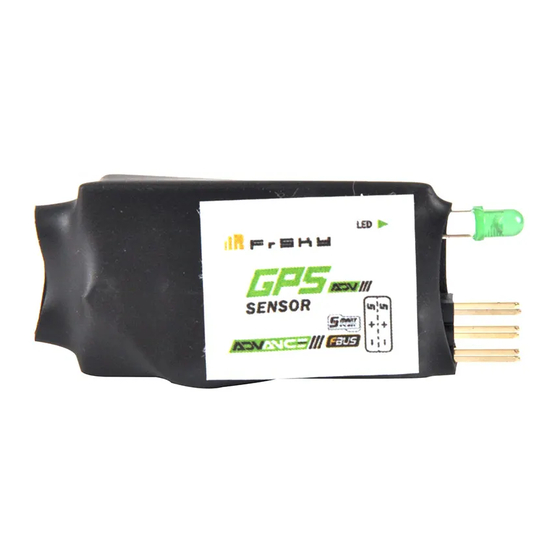

Overview
Specifications
• Dimension: 45*20*10.4mm (L*W*H)
• Weight: 11g
• Operational Voltage: DC 4 -10V
• Current Draw: 40mA @5V
• Operating Temperature: -40 ℃ ~85 ℃
• Data Rate: 10Hz
• Time to fix: 30s cold start
Set Up
FrSky Smart Port GPS is only compatible with FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc..
Here we take the setup together with X8R receiver for example. For more details, please refer to corresponding
receiver instruction manual.
GPS
SENSOR
To other FrSky
S.Port Enabled Sensors
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com

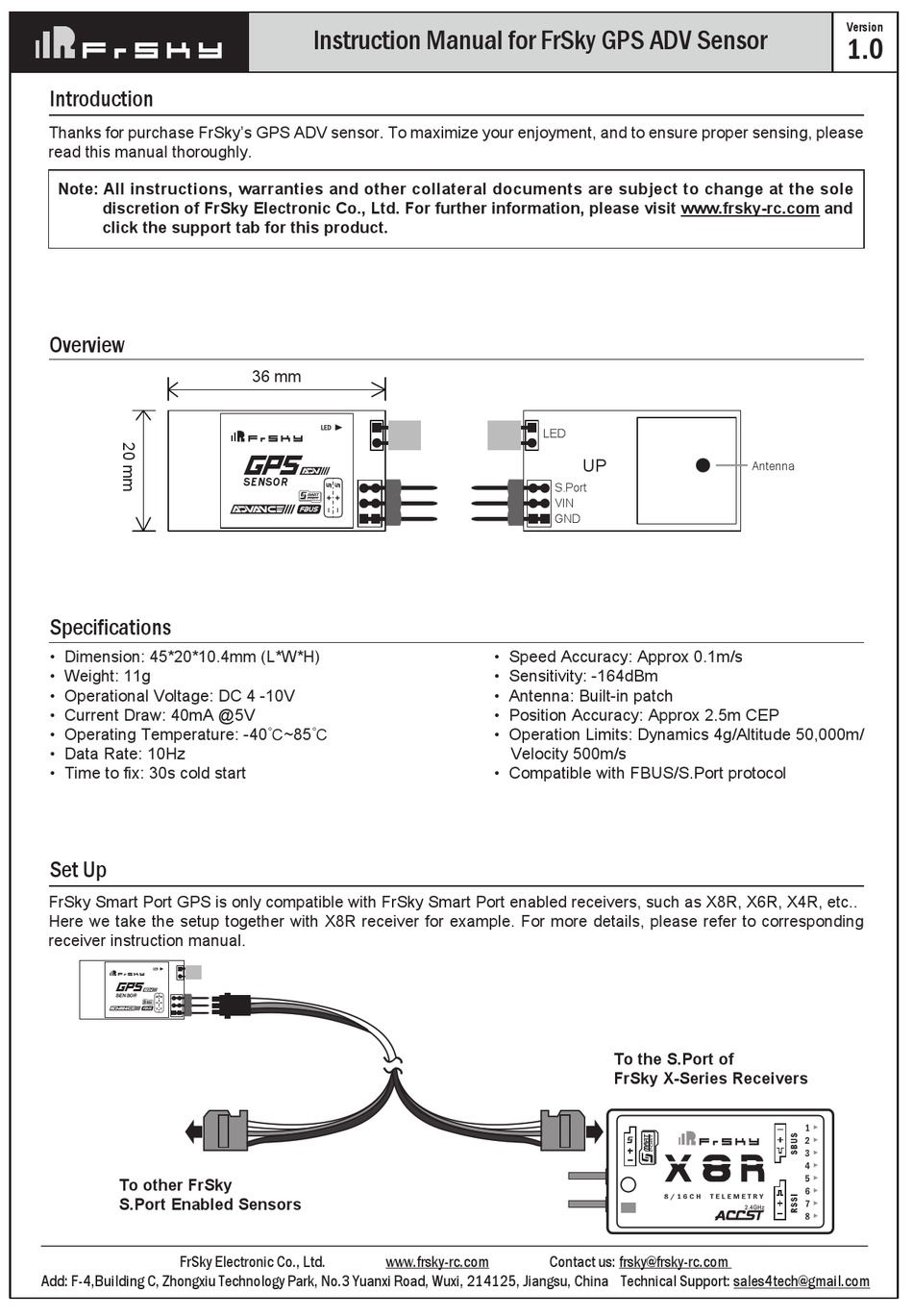

Instruction Manual for FrSky GPS ADV Sensor
36 mm
GPS
SENSOR
www.frsky-rc.com
LED
UP
S.Port
VIN
GND
• Speed Accuracy: Approx 0.1m/s
• Sensitivity: -164dBm
• Antenna: Built-in patch
• Position Accuracy: Approx 2.5m CEP
• Operation Limits: Dynamics 4g/Altitude 50,000m/
Velocity 500m/s
• Compatible with FBUS/S.Port protocol
To the S.Port of
FrSky X-Series Receivers
Contact us: frsky@frsky-rc.com
Version
1.0
Antenna
