FrSky FAS100 ADV Instruction Manual

Introduction

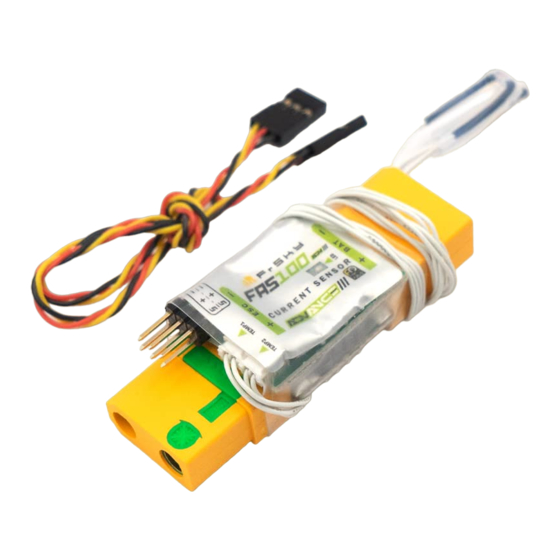

Thank you for purchasing FrSkyCurrent Sensor – FAS100 ADV. It is designed for FrSky Smart Port enabled system,
and can measure Current (A) and Battery Voltage (V) when connected between a Battery and ESC and it has two
temperature sensors. In order to fully enjoy the benefit of it, please read the instruction manual carefully and set up
the device as described below.
Note: All instructions, warranties and other collateral documents are subject to change at the sole
discretion of FrSky Electronic Co., Ltd. For further information, please visit www.frsky-rc.com
and click the support tab for this product.

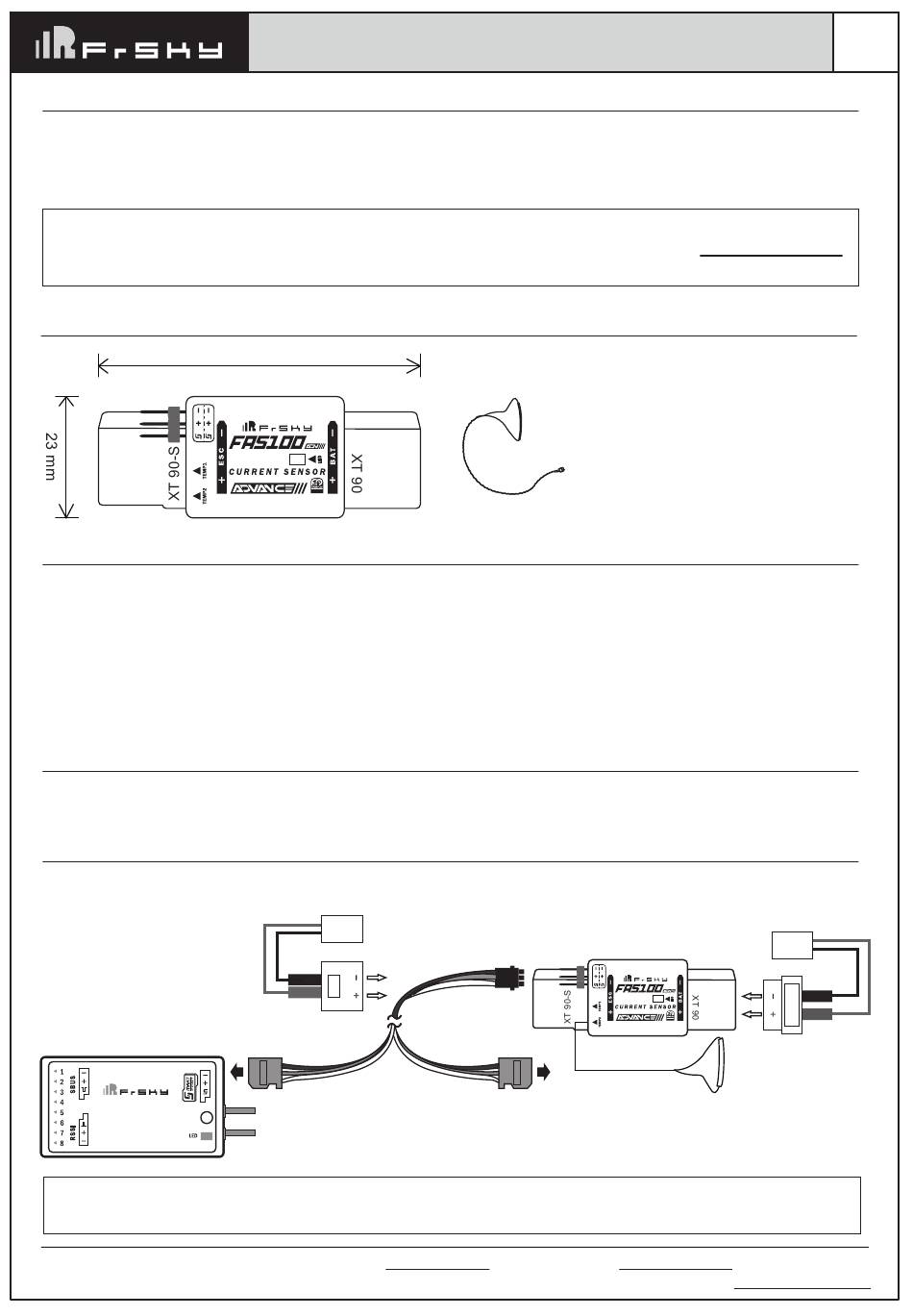

Overview

Specifications

• Dimension: 65×23×18mm (L×W×H)
• Weight: 30g
• Measurement range: 0~100A
• Current consumption: 16mA@5V
• Maximum safe current: 100A
• Maximum battery voltage: 14S
• Compatible: FrSky Smart Port enabled receivers
• Connector: XT90 Anti spark

Protocol switching

Connect the output Port of the sensor to the receiver, select Smart Port on the receiver setup screen, the sensor will
automatically recognize.

Set Up

FrSky Current Sensor – FAS100 ADV is compatible with FrSky Smart Port enabled receivers. For more details,
please refer to corresponding receiver instruction manual.
To the S.Port of
FrSky receivers
RECEIVER
Warning: Install FrSky Current Sensor – FAS100 ADV on any appropriate surface of the airframe that
stays away from water, vibration, or fuel.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky
Current Sensor — FAS100 ADV
65 mm
FBUS
ESC
www.frsky-rc.com
Measured Range:
TEMS : -55℃~250℃ / -67℉~482℉
Deviation: ±5%
TEMS
To other FrSky
S.Port Enabled Sensor
Contact us: frsky@frsky-rc.com
Bat
FBUS
TEMS
Version
1.0
