Summary of Contents for Crem ONE 1B VP

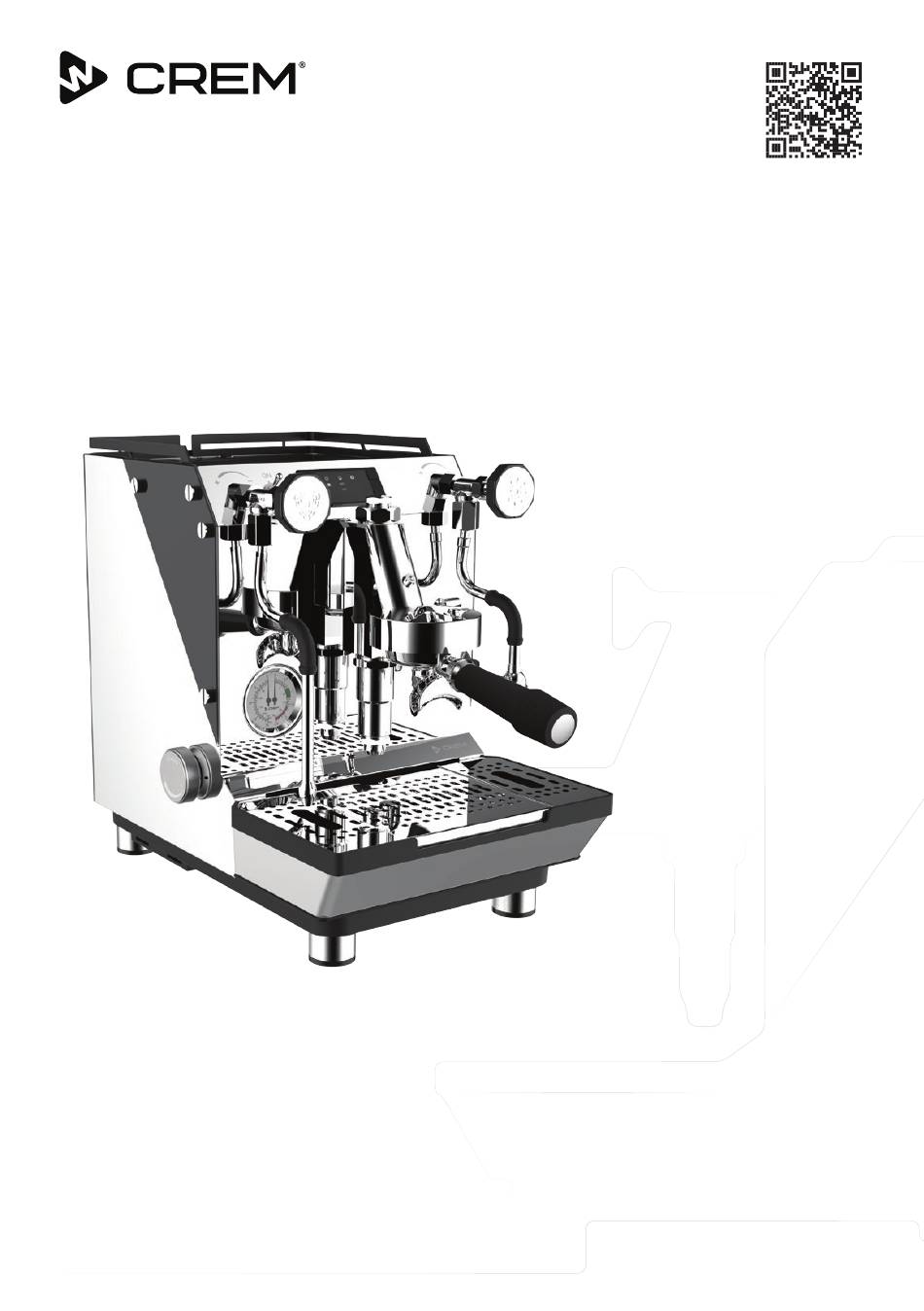

- Page 1 User Manual UM_EN Part No.: 1964195 Rev.:...
-
Page 2: Table Of Contents
CONTENTS MANUAL REVISIONS NOTIFICATIONS · Explanation of descriptions GENERAL INFORMATION · Introduction · General instructions · Intended use · Warning and Precautions TRANSPORT · Packaging · Delivery inspection STORAGE AND DISPOSAL · Long-term storage requirements · Machine disposal requirements TECHNICAL SPECIFICATIONS ·... -
Page 3: Manual Revisions
CONTENTS USER PROGRAMMING 2B · Adjusting boiler temperature · User Interface 2B · Summary chart · Barista menu - Access & browsing · Gradual soft preinfusion (GSP) menu (Rotary pump versions only) · Temperature adjustment · ECO mode · Heating element On/Off ·... -
Page 4: Notifications
NOTIFICATIONS · Explanation of descriptions There are five different levels of notification intensity within this manual, as identified by the signal terms: DANGER, WARNING, IMPORTANT, NOTE and PRO TIP. The level of risk and importance of the notification is determined by the following definitions. -
Page 5: General Information

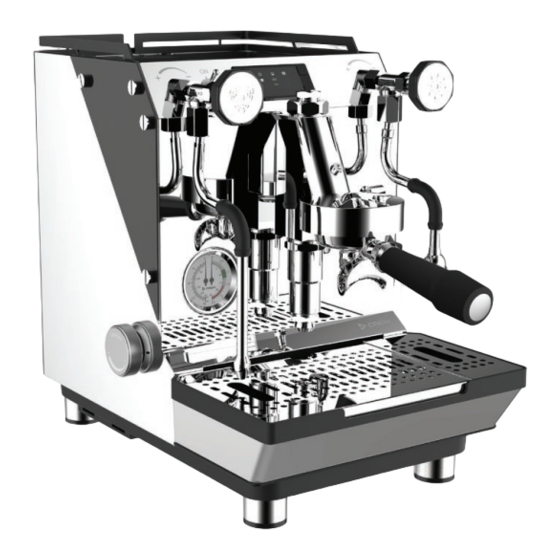

GENERAL INFORMATION · Introduction Thank you for choosing the ONE espresso machine. We hope you enjoy it ! This manual contains important instructions regarding safe intended use of the machine. Do not discard this manual, it will be useful for future reference. If damaged or lost, request a new copy from the manufacturer/ distributor or download a free PDF copy via: www.creminternational.com/downloads... -
Page 6: Intended Use
GENERAL INFORMATION · Intended use The coffee machine has been designed and manufactured to make espresso coffee and other hot drinks (e.g., steaming and frothing milk). Do not use it for any other purpose. The machine is intended to be used by trained personnel for preparing foodstuffs. - Page 7 GENERAL INFORMATION · Warning and Precautions The appliance is not suitable for installation in an area where a water jet could be used. This appliance must not be cleaned with a water jet or a pressure washer. The appliance is not suitable for outdoor use, where it would be exposed to severe weather or extreme temperatures.
- Page 8 GENERAL INFORMATION · Warning and Precautions To ensure fault-free machine operation, only use manufacturer- approved replacement parts and accessories. When packed for storage, store the machine in a dry place with an ambient temperature above 5ºC (41ºF). Boxes may be stacked up to three units high of the same model.
-
Page 9: Transport
TRANSPORT · Packaging The machine is shipped in a custom-designed carton which utilizes model-specific polystyrene cushions to protect it from damage. The machine’s carton features standardized handling symbols to explain proper shipping and storage methods. The machine must remain in a horizontal position during the transport. Do not store or handle the machine except on its feet. During transport protect the carton and machine from impact drops, crushing, shocks, moisture and exposure to extreme temperature. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS · Machine data Dispensing Group Boiler Machine Machine ID Control Boiler Power Rating Compliance codes System Weight System Volume ONE 1B CREM8091 30 kg EAEB-I91F-13AP 1 steam boiler (AUS/UK/IL/CH) 66 lb Manual Group lever ONE 2B CREM8092 EEEB-I91F-13AP (AUS/UK/IL/CH) 220-240V~ 50-60Hz 1950W... -
Page 11: Machine Description
TECHNICAL SPECIFICATIONS · Machine description D1 / D2 Description Description Length Water tank lid Brewing lever Steam knob Hot water tap inch Power switch Hot water knob Steam wand Digital display (1B version) Brewing group 12.1 OLED display (2B versions) Water connection selector Double pressure gauge (US versions only) -
Page 12: Buttons And Controls
BUTTONS AND CONTROLS · 1B Version ONE 1B Dual is controlled by a combination of manual control knobs, buttons and a brewing lever for dispensing. Digital display 2 buttons This machine features a group display for monitoring off: Shot timer Temperature 1. -
Page 13: Installation And Start Up
INSTALLATION AND START UP · Machine positioning 1. Installing the machine in the service area must be performed by a qualified person. As the machine may be quite heavy, at least two strong, capable individuals are recommend to work together to lift and position the machine. Consult the Technical MIN. -
Page 14: Mains Water Connection
INSTALLATION AND START UP · Mains water connection Connecting the machine to the domestic water supply must be performed by a qualified person. Contact a service technician to do this task you are not confident about performing the steps below. Attach the included water inlet hose to the back of the machine and torque both fittings with a wrench (3/4"... -
Page 15: Water Filter Requirements
INSTALLATION AND START UP · Water filter requirements Only use safe drinking water with a hardness rating between the parameters on the following table. If the hardness value is below this limit, corrosion of hydraulic components is likely. If the value is higher, lime-scaling inside the boiler will occur. In both cases, the proper function of the machine and quality and taste of the coffee will be negatively affected. -
Page 16: Electrical Connection Checklist
INSTALLATION AND START UP · Electrical connection checklist DANGER Important !: If supply cord is damaged, it must be replaced : The manufacturer will not be held by the manufacturer, its service agent or similarly qualified liable for damage to persons, animals or property persons in order to avoid a hazard and SERIOUS INJURY OR resulting from incorrect installation of the coffee DEATH! -
Page 17: Operation
OPERATION Inserting the portafilter in the group Installed correctly. Group gasket is Align portafilter's Insert the portafilter and rotate it counterclockwise worn out and flanges with the two slots in the until the handle is approximately perpendicular to needs to be group housing. -
Page 18: Cleaning And Care
CLEANING AND CARE WARNING!: Do not open the group or Pro Tip: To adjust the service alarms ( remove the portafilter until the cleaning has please go to the Service Manual. finished! This will release steam and hot water (QR Cove page) which could result in burns. -
Page 19: User Programming 1B
USER PROGRAMMING 1B · User interface 1B The machine is equipped a programmable interface that allows users to set or adjust the following features and parameters with guidance from the digital display. Selection buttons K2 - K3 · Adjusting boiler temperature Use the following steps to adjust the boiler temperature: Press the K3 for 5 seconds untill ’t1’... - Page 20 USER PROGRAMMING 2B · Summary chart Figure Description Figure Icon Description Icon Barista Menu Time scheduling Arrow (left) Turn off Arrow (right) Disable Home screen Enable Preinfusion Shot screen timer ▲ Arrow (up) Counter menu ▼ Arrow (down) Total Counters Enter / Confirm button Cleaning/Service counters Temperature settings...
- Page 21 USER PROGRAMMING 2B · ECO mode Figure Icon The machine has a standby (energy saver) function which can be activated/deactivated as follows: Manually: On main screen, activate and deactivate ECO mode manually with K3. ▲ Automatically: On Barista menu, access to ECO (figure 12) settings: ▼...
- Page 22 USER PROGRAMMING 2B · Auto On/Off menu Figure Icon On Barista menu, access to Auto On/Off (figure 17) settings. Use the following steps to activate or deactivate this function and adjust the daily time the machine turns Off and the time the machine turns on: Activate and deactivate Auto On/Off function by choosing between Disable (figure 19) and Enable (figure 20) When activated, daily On and Off times can be programmed individually for each weekday.
- Page 23 USER PROGRAMMING 2B · Temperature units Figure Icon On Barista menu, access to Temperature units (figure 26) settings. Use the arrows (figure 6 & 7) to select between ºC or ºF for temperature units. Then use the icon (figure 8) to confirm. ▲...
- Page 24 PRESSURE PROFILING MENU · Manual mode: Access From idle user display, Press the pressure profiling knob inward. Manual mode icon will be shown on display. · Manual mode: Initial PP pressure Settings explanation Choices / limits for adjustment Default initial setting Choose the initial pressure by rotating the PP knob 2-12 Bar 2 Bar...
- Page 25 PRESSURE PROFILING MENU · Recipe mode: Choose recipe From idle user display, rotate the PP knob to browse through the recipes. Select the recipe by pressing the PP knob. · Recipe mode: Recipe graph information RECIPE 1: 43s 5 cl RECIPE 1: 43s RECIPE 1: 43s 11 cl...
- Page 26 MACHINE ALERTS · Alarms & Warnings To alert users that routine service of the machine is due or against a situation that could possibly cause damage to the machine, ONE has the following alerts programmed into its software: 1B versions Error Warning / Alarm Name...
- Page 27 TROUBLESHOOTING · Machine faults Problem Possible cause Solution The plug is not correctly inserted into Check that the plug is correctly inserted the power socket and that the power socket is operational. The machine does not start up when turned on The circuit breaker and/or differential Check that they are connected.
- Page 28 For service Please contact your dealer Your Dealer Crem International (Shanghai) Co., Ltd Building 5, No.521-551, Kangyi Road, Pudong New Area, Shanghai 201315, China. Crem International Spain S.L.U. C/ Comerç nº 4 - Pol. Ind. Alcodar, 46701 - Gandía (Valencia – Spain)
