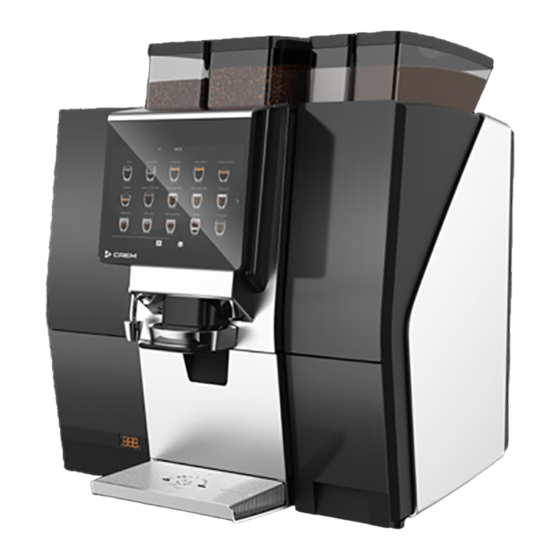

UNITY & UNITY +
CLEANING & CARE MANUAL
UNITY_C&CM_EN
Part No.: 1964160_05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNITY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crem UNITY

Summary of Contents for Crem UNITY

  • Page 1 UNITY & UNITY + CLEANING & CARE MANUAL UNITY_C&CM_EN Part No.: 1964160_05...

  • Page 3: Table Of Contents

    UNITY & UNITY+ CONTENTS MANUAL REVISIONS 4 INTRODUCTION 5 Cleaning and care overview 5 DAILY CLEANING 6 Step 1: Run rinsing cycle 6 Step 2: Cleaning FMU with tablet 7 Step 3: Empty waste bin and drip tray 11 WEEKLY CLEANING 12...

  • Page 4: Manual Revisions

    UNITY & UNITY+ MANUAL REVISIONS Revision #: Date: Serial #: Description: Feb. 2019 None Release for technical review. April 12, 2019 None Updated based on feedback from technical review. May 30, 2019 None Updated to optimise cleaning workflow efficiency. July 16, 2019 None Updated based on feedback from field testing.

  • Page 5: Introduction

    Note: This manual is designed for cleaning and care of the entire range of Unity dispensers. As such some modules, parts, components and systems may vary slightly in appearance or description from what is shown.

  • Page 6: Daily Cleaning

    UNITY & UNITY+ DAILY CLEANING Step 1: Run rinsing cycle Press the top right corner to access Service Menu. Input the Service Menu password. (Password is available from Press the Cleaning icon to access cleaning options. the distributor.) CAUTION: Cleaning water is very hot! Press the Rinsing icon.

  • Page 7: Step 2: Cleaning Fmu With Tablet

    UNITY & UNITY+ DAILY CLEANING Step 2: Cleaning FMU with tablet Unlock the door. Open the door. Remove the milk container. Dispose of any remaining milk. Wash the milk container either by hand (A), or in a dishwasher (B) that does not exceed 69ºC.
  • Page 8 UNITY & UNITY+ DAILY CLEANING Step 2: Cleaning FMU with tablet - if equipped Rinza M61 cleaning tablets Place the milk container on the door (A) and insert the dip tube into the cleaning vessel (B). Add one cleaning tablet to the (Art.
  • Page 9 UNITY & UNITY+ DAILY CLEANING Step 2: Cleaning FMU with tablet - if equipped CAUTION: Cleaning water is very hot! Press Start, follow on screen instructions. To save time during FMU cleaning, wipe Place an empty 1L container under exterior surfaces and interior of FMU.
  • Page 10 UNITY & UNITY+ DAILY CLEANING Step 2: Cleaning FMU with tablet - if equipped Close the door. Lock the door. -10-...

  • Page 11: Step 3: Empty Waste Bin And Drip Tray

    UNITY & UNITY+ DAILY CLEANING Step 3: Empty waste bin and drip tray Raise the adjustable spout up. Ensure the bottom of the adjustable Remove the waste bin. Empty and clean the waste bin.. spout is fully above the top of the waste bin.

  • Page 12: Weekly Cleaning

    UNITY & UNITY+ WEEKLY CLEANING Step 1: Run purification cycle Press top right corner to access Service Menu. Input Service Menu password. (Password is available from the Press Program to access the short-cut cleaning menu. distributor.) Cafiza E-22 cleaning tablets (Art.
  • Page 13 UNITY & UNITY+ WEEKLY CLEANING Step 1: Run purification cycle (continued) * Rinza M61 cleaning tablets Place an empty 1L container under the Add one cleaning tablet to the Replace the milk container fully into the (Art. #: 2060024) cleaning vessel.

  • Page 14: Step 2: Clean Steam Traps

    UNITY & UNITY+ WEEKLY CLEANING Step 2: Clean steam traps Open door. Close canister outlets. Rotate steam traps up approx. 20° to Remove the steam traps. release them from the mixers. Wash with a brush by hand. Dry then Clean interior of instant module.

  • Page 15: Step 3: Clean Outlet Spout

    UNITY & UNITY+ WEEKLY CLEANING Step 3: Clean outlet spout Grip spout assembly in the locations Pull down on the spout assembly to Pull out the instant tube (if equipped). Wash with a brush by hand. Dry then shown. remove it (medium force is required).

  • Page 16: Step 4: Clean Water Tank - If Equipped

    UNITY & UNITY+ WEEKLY CLEANING Step 4: Clean water tank - if equipped Remove the water tank. Open the water tank. Remove the water filter, if installed. Wash the water tank and lids by hand. Dry then reassemble. -16-...

  • Page 17: Step 5: Clean Drip Tray And Waste Bin, Clean Interior

    UNITY & UNITY+ WEEKLY CLEANING Step 5: Clean drip tray and waste bin, clean interior Raise the adjustable spout up. Ensure the bottom of the adjustable Remove the waste bin. Empty and clean the waste bin. Wash by spout is fully above the top of the waste hand.

  • Page 18: Step 6: Run Test Drinks

    UNITY & UNITY+ WEEKLY CLEANING WEEKLY CLEANING Step 6: Run test drinks Press the Return icon to return to user menu. Make a several test drinks to test functionality and ensure all parts are reinstalled and working correctly. -18-...

  • Page 19: Monthly Cleaning

    UNITY & UNITY+ MONTHLY CLEANING Step 1: Remove and clean mixers Note: Before starting the Monthly Cleaning, always ensure the full Weekly Cleaning program has been completed first. Press the Program icon (A), then set the machine to Service Input the Service Menu password. (Password is available from the distributor.)

  • Page 20: Step 2: Remove And Clean Mixers

    UNITY & UNITY+ MONTHLY CLEANING Step 2: Remove and clean mixers Open the door. Close the canister outlets. Pull off the instant tubes. Unlock the mixers. Remove the mixers. Clean interior of instant module. Remove the whipper discs. Wash by hand. Dry then reassemble.

  • Page 21: Step 3: Remove And Clean Espresso Brewer - If Equipped

    UNITY & UNITY+ MONTHLY CLEANING Step 3: Remove and clean espresso brewer - if equipped Open the door. Unlock the brewer. Locate the brewer’s water inlet tube and Disconnect the inlet tube. follow it around to where it is connected at the BACK of the three-way valve (as circled).

  • Page 22: Step 4: Remove And Clean Monobrewer - If Equipped

    UNITY & UNITY+ MONTHLY CLEANING Step 4: Remove and clean monobrewer - if equipped Remove the table funnels (if included). Disconnect the outlet connector. Rotate the brewer up to release it, then Wash brewer by hand. Dry then reassemble. remove it.

  • Page 23: Step 5: Clean Grinder Outlets

    UNITY & UNITY+ MONTHLY CLEANING Step 5: Clean grinder outlets Remove the grinder outlets. Wash then dry the grinder outlets. Rotate the grinder outlets up to unlock them. -23-...

  • Page 24: Step 6: Clean Bean Hoppers

    UNITY & UNITY+ MONTHLY CLEANING Step 6: Clean bean hoppers Remove the bean hoppers. Clean the bean hoppers with a dry cloth. -24-...

  • Page 25: Step 7: Remove Canisters, Clean Interior

    UNITY & UNITY+ MONTHLY CLEANING Step 7: Remove canisters, clean interior Remove the instant canisters. Clean all interior areas. Reassemble all parts. -25-...

  • Page 26: Step 8: Exit Service Mode, Make Test Drinks

    UNITY & UNITY+ MONTHLY CLEANING Step 8: Exit Service Mode, make test drinks Press the Program icon (A), then set the machine to Service Press the Return icon to return to user menu. Mode Off (B). Make a several test drinks to test functionality and ensure all parts are reinstalled and working correctly.
