Hettich Quadro V6 Quick Start Manual

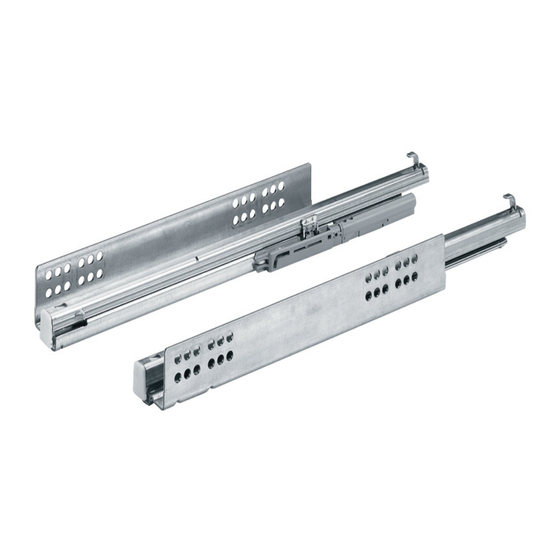

Drawer slides for wooden drawers
Quadro
Technical information

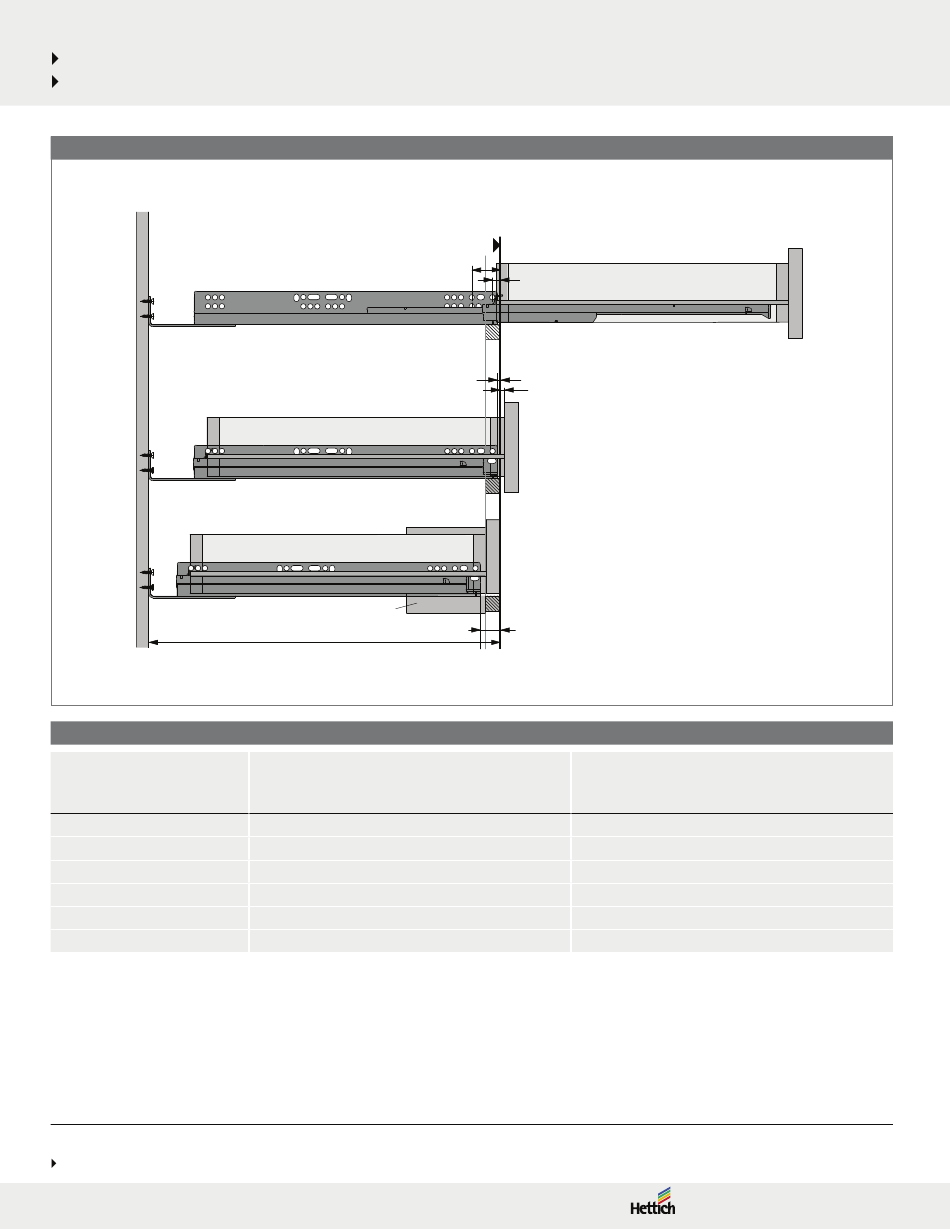

Mounting specifications – (Quadro V6 / Quadro 4D V6, face frame application)
(Rear attachment options see page 12)
Minimum/maximum cabinet depth (see below)
Inset application increases minimum cabinet depth!
Minimum / maximum cabinet depth (Quadro V6 / Quadro 4D V6, face frame application)
Drawer box length
mm (inch)
229 mm (9") Quadro V6
305 mm (12")
381 mm (15")
457 mm (18")
533 mm (21")
610 mm (24")
Advice
Dimensions in millimeters (inch approximations as noted). Subject to technical modifications without notice.
Technik für Möbel
Cabinet front edge
37 mm (1 7/16")
Setback 2 mm (3/32")
Blocking behind frame
Min-Max cabinet depth with
metal rear attachment
mm (inch)
250 - 300 mm (9 7/8" - 11 3/4")
326 - 376 mm (12 7/8" - 14 3/4")
402 - 452 mm (15 7/8" - 17 3/4")
479 - 529 mm (18 7/8" - 20 3/4")
555 - 605 mm (21 7/8" - 23 3/4")
631 mm (24 7/8") no rear attachment, must be blocked out
10 mm (3/8")
Front gap 1.5 mm (1/16")
Face frame application with
overlay decorative front
Face frame application with
inset decorative front
Min. setback for inset or roll out tray =
Decorative drawer front thickness + 3.5 mm (1/8").
Trial recommended! See details below for adjustment possiblities.
Min-Max cabinet depth with
plastic rear attachment (TennTex C-307)
mm (inch)
270 - 297 mm (10 5/8" - 11 11/16")
346 - 373 mm (13 5/8" - 14 11/16")
422 - 449 mm (16 5/8" - 17 11/16")
498 - 525 mm (19 5/8" - 20 11/16")
574 - 601 mm (22 5/8" - 23 11/16")
13
