Wooden drawer perfection
Quadro provides many ways to differentiate
The Quadro bottom mounted drawer runner brings a look of
elegance and perfect performance to any wooden drawer.
Complementing the line up with optional synchronisation for
the Push to open function as well as a 4D front panel adjust-
ment capability, Hettich notches up the Quadro range.

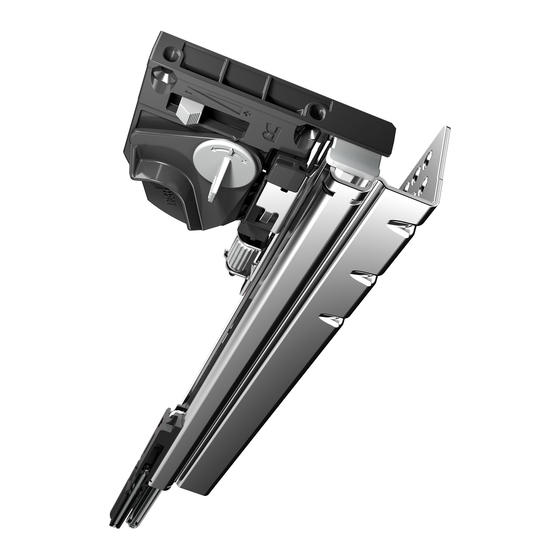

The Quadro 4D adjustment capability lets you adjust drawer fronts
vertically, laterally and in depth and tilt all as standard. This also
provides the perfect solution to realising large size drawer fronts
with narrow gaps. The adjusting mechanisms are easily accessi-
ble and, with a different surface feel, easy to tell apart. This makes
adjustment fast, straightforward and intuitive.
The Push to open function underpins purist, handleless furniture
design with the tried and proven qualities of Quadro drawer run-
ners. A light press on the front panel activates the opening mech-
anism, leaving the drawer to open all by itself. The optional syn-
chronisation function significantly increases the activation area on
the front panel and makes drawers even easier to open.
Suiting any application, Quadro drawer runners give furniture and
kitchen manufacturers the perfect answer to meeting any demand
in furniture design without having to make any change to wooden
drawer or carcase. From plug on partial extension runner to full
extension runner with 4D front panel adjustment. The same ap-
plies to the full scope of functions from StopControl self closing to
Silent System. As such, Quadro gives furniture and kitchen manu-
