Sena 30K Quick Start Manual

Motorcycle bluetooth communication system with mesh intercom
Hide thumbs Also See for 30K:
Table of Contents

Advertisement

Quick Links

See also: User Manual
30K
MOTORCYCLE BLUETOOTH
®
COMMUNICATION SYSTEM
WITH MESH INTERCOM™
1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sena 30K

Summary of Contents for Sena 30K

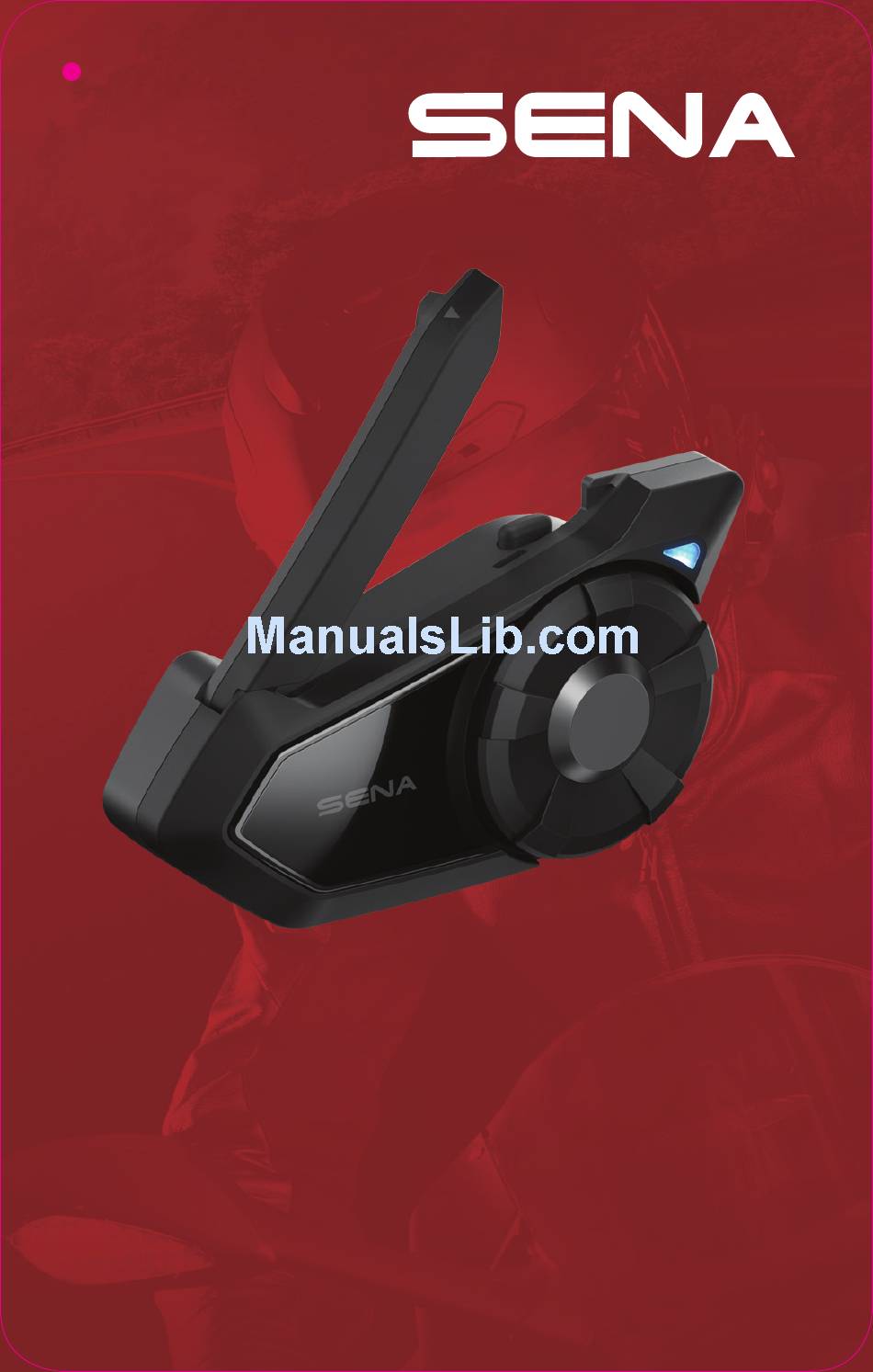

  • Page 1 MOTORCYCLE BLUETOOTH ® COMMUNICATION SYSTEM WITH MESH INTERCOM™ 1.0.0...
  • Page 2 The 30K features Sena’s Mesh Intercom technology allowing your group to seamlessly communicate, even if a rider falls out of range. With more connections and Mesh Intercom™ technology, the 30K is the next generation of communication. Bluetooth Mesh Intercom™ ®...

  • Page 3: Getting Started

    Visit Sena. com/device-manager-download/ to see how to update your product. 3. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up to date information on products, helpful tips and all other announcements regarding Sena products.

  • Page 4: How To Use This Guide

    GETTING STARTED How to Use This Guide The legend and callouts are here to help you read the illustrations. New technology can be confusing, but we’ve created a simple way to perform actions using illustrations. HOLD Function Button(s) to Tap or Hold Buttons Mesh Intercom Button Phone Button...

  • Page 5: Icon Legend

    GETTING STARTED Icon Legend button/Jog Dial Press and Hold button/ HOLD the specifi ed number Jog Dial for the specifi ed of times amount of time Rotate Jog Dial clockwise (right) or ROTATE ROTATE ROTATE counterclockwise (left). Rotate while Pressing Jog Dial ROTATE ROTATE...

  • Page 6: Product Details

    QUICK START GUIDE Product Details Mesh Intercom Antenna Mesh Intercom Button Status LED Bluetooth Antenna Phone Button Jog Dial Ambient Mode Button DC Power Charging & Firmware Upgrade Port QUICK START GUIDE...

  • Page 7: Installation

    QUICK START GUIDE Installation Mesh Intercom Antenna Pull the Mesh Intercom Antenna outwards slightly to unfold it. Basic Operations Powering On Powering Off HOLD POWER POWER Volume Up Volume Down ROTATE ROTATE VOLUME VOLUME DOWN...

  • Page 8: Checking The Battery Level

    Quick start guide Checking the Battery Level There are two ways to check the battery levels, visually using the LED lights, and audibly. Instructions are for when powering the Bluetooth Module on. Visual Method Audible Method HOLD HOLD VISUAL AUDIBLE METHOD METHOD “Battery level...

  • Page 9: Mobile Phone

    QUICK START GUIDE Mobile Phone Answer a Call Reject a call HOLD REJECT ANSWER End a Call Make Call with Voice Dialer VOICE HOLD DIAL Music Controls Play/Pause Track forward HOLD ROTATE Track backward “[Beep, Beep]” ROTATE...

  • Page 10: Mesh Intercom

    Mesh Intercom is Sena’s unique group intercom technology which features self-organizing, self-healing, self-optimizing, and multi-hopping communication. Mesh Intercom allows riders to connect and communicate with nearby 30K users instantly without the need to pair each headset together. Mesh Intercom On/Off “Mesh intercom on”...

  • Page 11: Creating The Mesh

    QUICK START GUIDE Creating the Mesh A user can create a Mesh and invite up to 15 other riders to communicate over the intercom in a closed group. The Mesh can automatically adapt to riders leaving and joining the Mesh for seamless Mesh Intercom communication. Create Mesh Accept Invitation During Mesh Creation...

  • Page 12: Bluetooth Intercom

    Quick start guide Bluetooth Intercom Up to three people can communicate via intercom with you (A) simply by pairing their headsets. Pairing Headset A Start/End Intercom with Headset B with Headset B HOLD “Intercom pairing” Flashing blue LED confi rms intercoms are paired.

  • Page 13: Ambient Mode

    QUICK START GUIDE Ambient Mode START AMBIENT MODE Configuration Menu Accessing the Navigating Between Confi guration Menu Menu Options HOLD ROTATE CONFIG. NAVIGATE MENU FORWARD “Confi guration menu” “[Menu prompt]” Enable or Execute Menu ROTATE Options NAVIGATE BACKWARD “[Menu prompt]” ENABLE EXECUTE...

  • Page 14: Sena Device Manager

    Quick start guide Sena Device Manager The Sena Device Manager allows you to upgrade the firmware and configure its settings directly from your PC or Apple computer. Using this software, you can assign speed dial presets, FM radio station presets and more.

  • Page 15: Troubleshooting

    QUICK START GUIDE Troubleshooting Factory Reset Fault Reset HOLD “Factory reset” Note: Fault Reset will not restore the Bluetooth Solid red module to factory default settings. STATUS within EXECUTE...

  • Page 16: Quick Reference

    QUICK REFERENCE TYPE OPERATION BUTTON COMMANDS HOLD Power on / Power off Volume up / ROTATE ROTATE Basic Volume down Operations Ambient Mode Answer phone call End phone call HOLD Reject phone call Call transfer while HOLD Mobile on the phone Phone Voice dial Speed dial...
  • Page 17 QUICK REFERENCE TYPE OPERATION BUTTON COMMANDS HOLD Play/Pause music ROTATE Track forward Music ROTATE Track backward Mesh Intercom On/Off HOLD Create Mesh Accept invitation during Mesh creation Mesh Intercom™ HOLD Quit Mesh permanently Join an existing Mesh HOLD Intercom pairing Start/End intercom HOLD End all intercoms...
