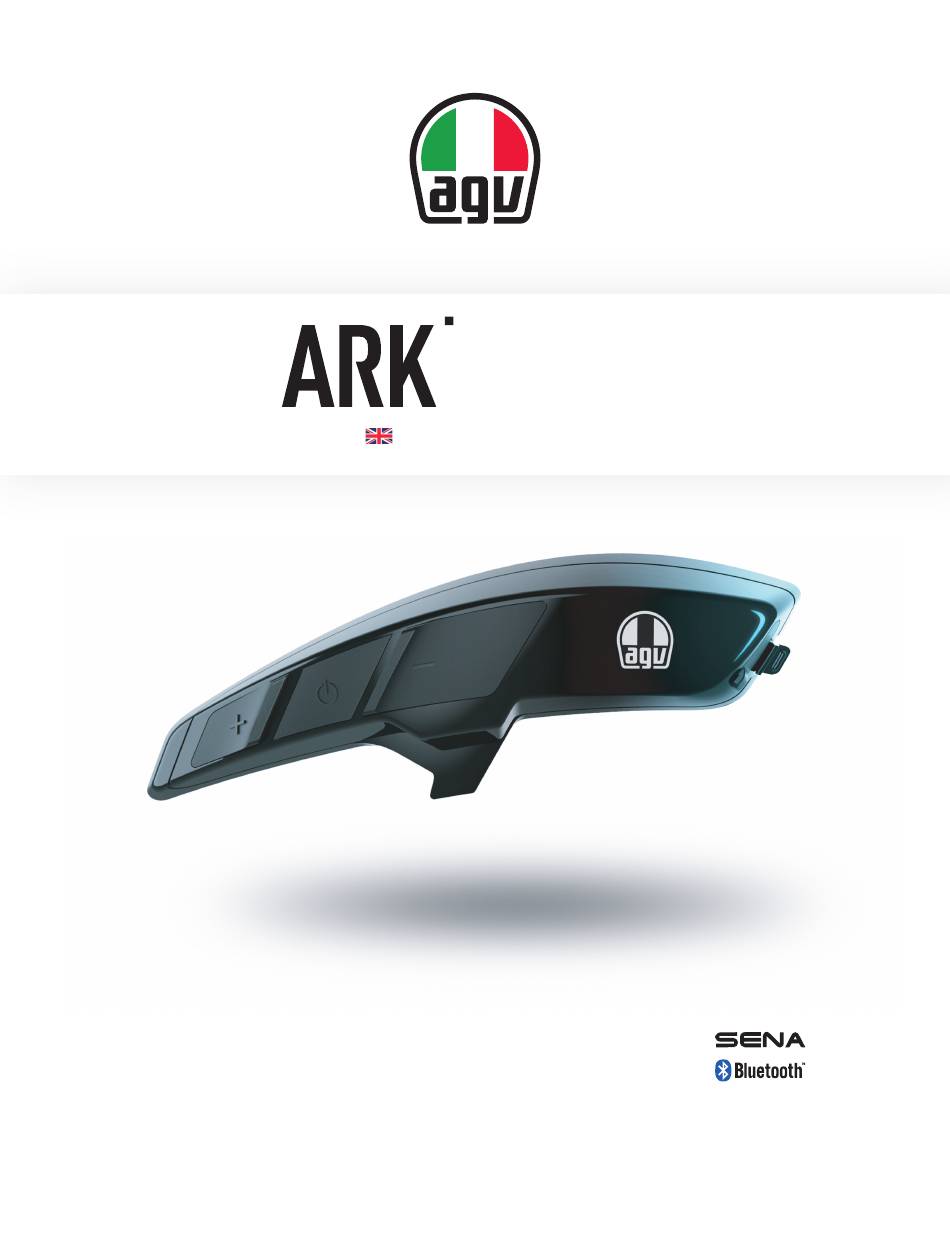

- Page 1 AERODYNAMIC COMMUNICATION SYSTEM FOR AGV HELMETS Quick start guide Dainese S.p.A. Via Louvigny, 35 36064 Colceresa (VI) - Italy ph.: +39 0424 410711 fax: +39 0424 410700 www.agv.com ARK_QSG_ENG_20210415...
- Page 2 OVERVIEW ( ) ( ) Charging cable Micro-USB charging port Support unit (accessory) Connection unit Microphone with adhesive velcro and cover for modular and jet helmets Microphone with adhesive velcro Earphones and cover for full-face helmet with covers and adhesive velcro...
- Page 3 ASSEMBLY Support unit A. Steer the connection unit wiring (1) through the passage made on the support unit (2). B. Place the connection unit (3) in its own place on the support unit, making sure that the metal contacts (4) are placed to the outside. C.
-
Page 6: Getting Started
GETTING STARTED Interactions Audio feedback: voice message from the earphones Double tap Visual feedback: LED flashes An audio feedback "Beep" Push for n" follows each impulse 1" Power On/Off While switching on, the LED reports the battery status: 70% › 100% 30% ›... -
Page 7: Phone Pairing
"Intercom pairing" is heard. Ignore the signal and continue pushing until the vocal message "Configuration" is heard. "Phone pairing" Bluetooth "Your headset is paired." Bluetooth AGV ARK v1.0 If the smartphone requires a pin code, enter four times the zero:... - Page 8 CONNECTIVITY Pairing two or more ARKs ARK 1 ARK 2 "Intercom pairing" 5" 5" To complete the connection press the central button of one of the The two ARKs two ARKs. are connected Multiple pairing: replicate the procedure to match your ARK to other ARKs. Warning: connect with a single ARK at a time.
-
Page 9: Phone Call
PHONE CALL Answer End / Reject 2" Voice dial Speed dial 3" 3" MUSIC Play Pause 1" 1" Previous track Next track 1" 1"... - Page 10 RADIO On / Off Stations seek 1" "FM On" station frequency number station frequency number Scroll the preset stations |1| ▶ |2| ▶ |3| ▶ |...| ▶ |10| Scroll the ten presets 1" Scan FM band Start and stop scanning station frequency number after 8"...
- Page 11 Save or delete a preset station position Enter the mode "Preset 1 / 2 / 3 / ... / 10" 3" Select the desired position "1 / 2 / 3 / ... / 10" Delete the position Save the position 1"...
- Page 12 Then, start AGV Device Manager and click on Device Settings to configure ARK. Sena SF Utility Download the Sena SF Utility app (available for Android and iOS). Pair the smartphone with ARK and start the application. Then, use the Configuration menu within the app to configure ARK. ARK User manual...
