General Information

About This Manual

The step-by-step instructions outlined in this manual
describe the procedures required to successfully upgrade
®
an older Tracer CH530 DynaView™ equipped RTAC
®
Series R air-cooled chiller to a Tracer AdaptiView™
display system.

Other Required Manuals

This manual must be used with the following publications:
• RTAC-SVX01*-EN (Installation Operation and
Maintenance: Series R
Liquid Chillers)
• RTAC-SVE01*-EN (Wiring Manual: Series R
Cooled Helical Rotary Liquid Chillers)
• SRV-SVU004*-EN (Operations Guide: Tracer
AdaptiView™ Controls Upgrade for Series R Air-
Cooled Chillers).
• BAS-SVP031*-EN (Programming Guide: Tracer
AdaptiView™ Panel Upgrade for RTAC Chillers)
• RTAC-SVP001*-EN (Integration Guide: BACnet
Modbus™ RTU Communication Interfaces)
• PART-SVB16*-EN (General Service Bulletin: Tracer
CH530/CH531 Pluggable Connector System)
• ACC-SVN100*-EN (Hardware and Software
Installation Guide: LonTalk
Interface)

Required Tools

Normal service tools are required to perform the majority
of the work. A service technician with a well-stocked tool
chest should have the right tools to perform the job. In
addition to the normal service tools and hardware, the
following is a partial list of specific field supplied
hardware/software components and special tools that are
also required to perform the display retrofit:
• An RS-232 Male DB9 to female DB9 pin to pin serial
cable to connect the Dynaview to a PC or laptop
computer.
– Notes:
• The cable must not be a "null-modem" cable.
• The cable must be less than 50 feet in length.
• Type A to Type B USB cable to connect the Tracer
UC800 controller to a PC or laptop computer.
• A PC or laptop computer equipped with the following:
• KestrelView™ service software, version 14.0
Service Pack 9 or newer.
• Tracer™ TU service software, version 9.4.94 or
newer.
• South pole magnet screwdriver (TOL01343).
6
®
Air-Cooled Helical Rotary
®
Air-
®
®
®
®
Communication
• Drill
• 7/8" hole saw or knockout punch
• 1-1/8" hole saw or knockout punch
• 1-3/8" knockout punch (needed for enclosure option
only)
• 1-1/4" hole saw or knockout punch (needed for Arm
mount option only)
• #2 (.221) drill bit (needed for enclosure option only)
• Q drill bit - 0.332 (needed for Arm mount option only)
• 17/64" drill bit
• 7/16" wrenches/sockets
• 5/16" wrenches/sockets
• Standard wire crimpers
• 1/2" wrenches/sockets

Field-Provided Material

Some field provided material will be required to perform
the display retrofit. A list of material is provided here to
and
help the technician to plan ahead and to avoid material
shortages at the job site.
®

Nameplates

®
A Tracer AdaptiView™ nameplate is included in the kit to
be installed near the original nameplate on the control
panel. Always provide the model number and serial
number information from the nameplate when making
inquiries, ordering parts, or literature for the Tracer
AdaptiView display system.

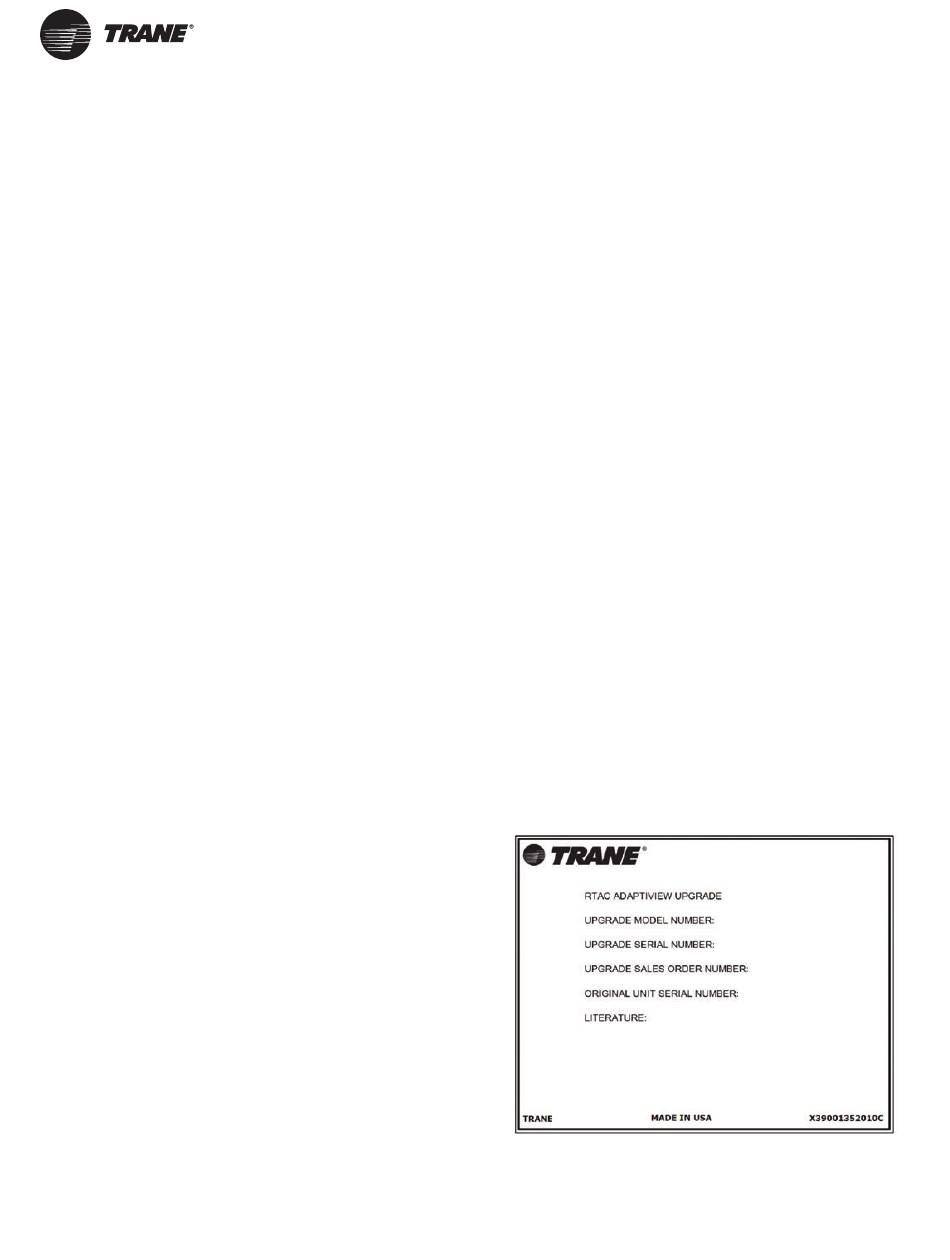

Figure 1. Nameplate example
RCDA-SVN002*-EN
RTAC-SVX01*-EN
UC800 AdaptiView RTAC Programming Guide
RCDA C100 0AA7 00A1 55H4
L22A22222
A1A111A
U22A222222
