4. On either the side or front control panel, drill one 7/8"
hole for the USB Service Port.
Note: Length from the USB port location to the back
plate should be 18 inches or less.

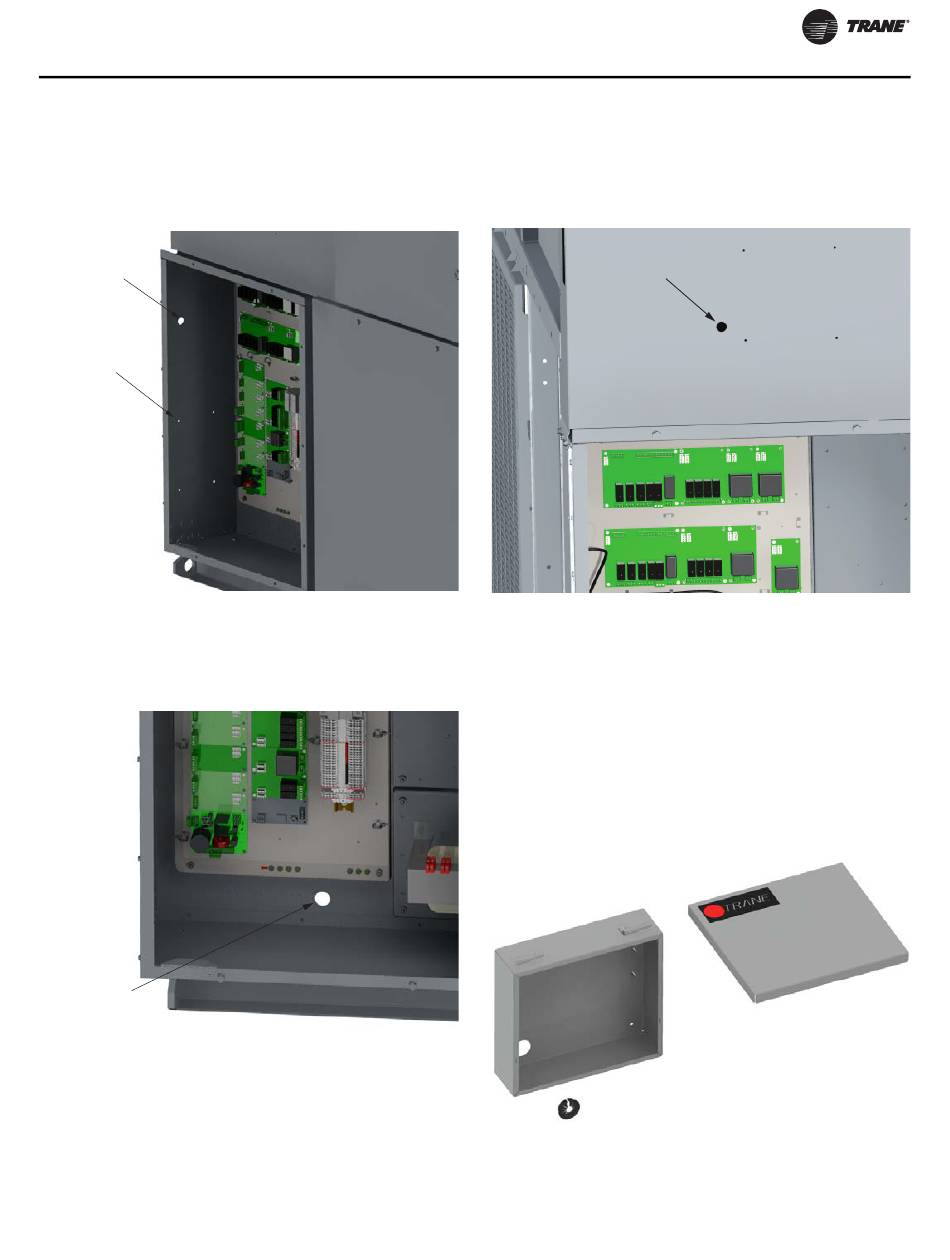

Figure 5. Back plate assembly mount hole locations
USB Port
Back Plate
Mounting
Holes
5. Drill a 1-1/8" hole in the back of the control panel, just
below the control back plate. The ¾" cord grip will be
installed at this location. See
Figure 6. Hole for 3/4" cord grip
1-1/8" Hole
for 3/4" Cord Grip
6. After all holes are drilled, use a vacuum to remove any
dirt, debris, or metal filings that may have accumulated
inside of the control enclosure.
RCDA-SVN002C-EN
Figure 6, p. 13.

TD7 Enclosure Option

1. Use a 1-3/8" knockout punch to enlarge the 11/16"
diameter hole used to route the Dynaview™ cable.
Figure 7. Panel hole enlargement
Enlarge 11/16" Hole
to 1-3/8"
2. Remove the lid from the TD7 enclosure, and
temporarily install the 1-1/4" split grommet. Aligning
the split grommet with the 1-3/8" hole created in the
previous step, place the enclosure on the panel. Level
and mark the 4 holes used to mount the enclosure.
Note: If the TD7 enclosure will not be mounted in the
same location as the DynaView, it must be
within 1 foot of the DynaView's original
location. Plugs are provided in the kit to cover
the original DynaView mounting holes.
Figure 8. Enclosure
Installation
