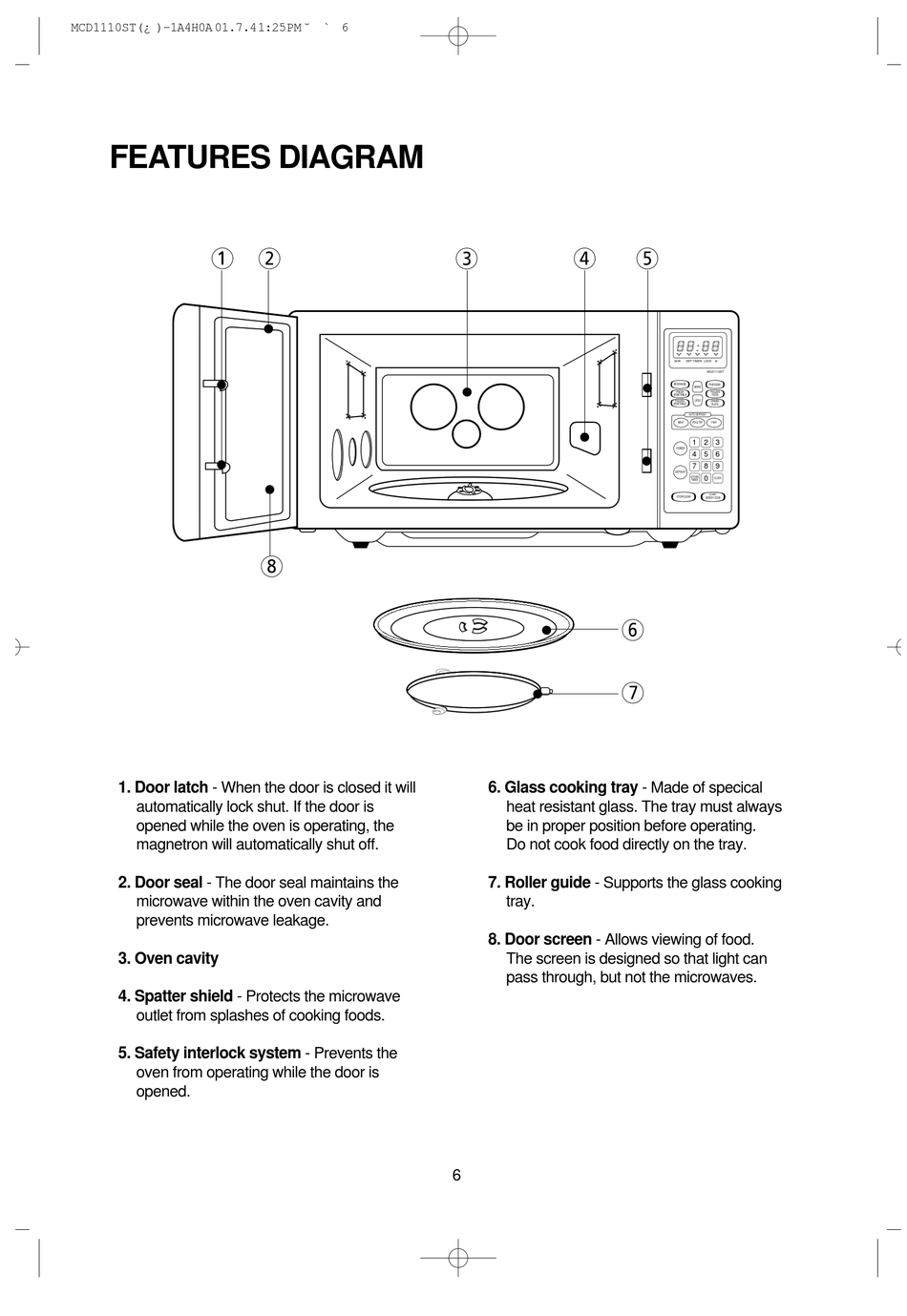

FEATURES DIAGRAM

1
1. Door latch - When the door is closed it will
automatically lock shut. If the door is
opened while the oven is operating, the
magnetron will automatically shut off.
2. Door seal - The door seal maintains the
microwave within the oven cavity and
prevents microwave leakage.
3. Oven cavity
4. Spatter shield - Protects the microwave
outlet from splashes of cooking foods.
5. Safety interlock system - Prevents the
oven from operating while the door is
opened.
2
8
3 4
6
7
6. Glass cooking tray - Made of specical
heat resistant glass. The tray must always
be in proper position before operating.
Do not cook food directly on the tray.
7. Roller guide - Supports the glass cooking
tray.
8. Door screen - Allows viewing of food.
The screen is designed so that light can
pass through, but not the microwaves.
6
5
M/W DEF TIMER LOCK lb
MCD1110ST
BEVERAGE POPCORN
MORE
FRESH FROZEN
VEGETABLE PIZZA
LESS
FROZEN DINNER
VEGETABLE PLATE
AUTO DEFROST
MEAT POULTRY FISH
1 2 3
POWER
4 5 6
7 8 9
DEFROST
KITCHEN 0
CLOCK
TIMER
START/
STOP/CLEAR
SPEEDY COOK
