Summary of Contents for Clearaudio Statement V2

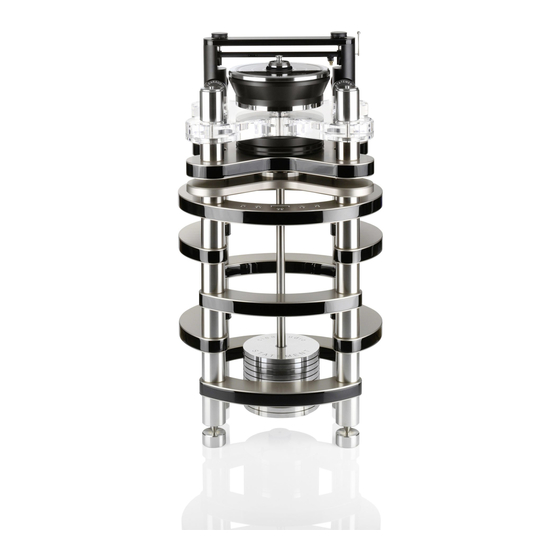

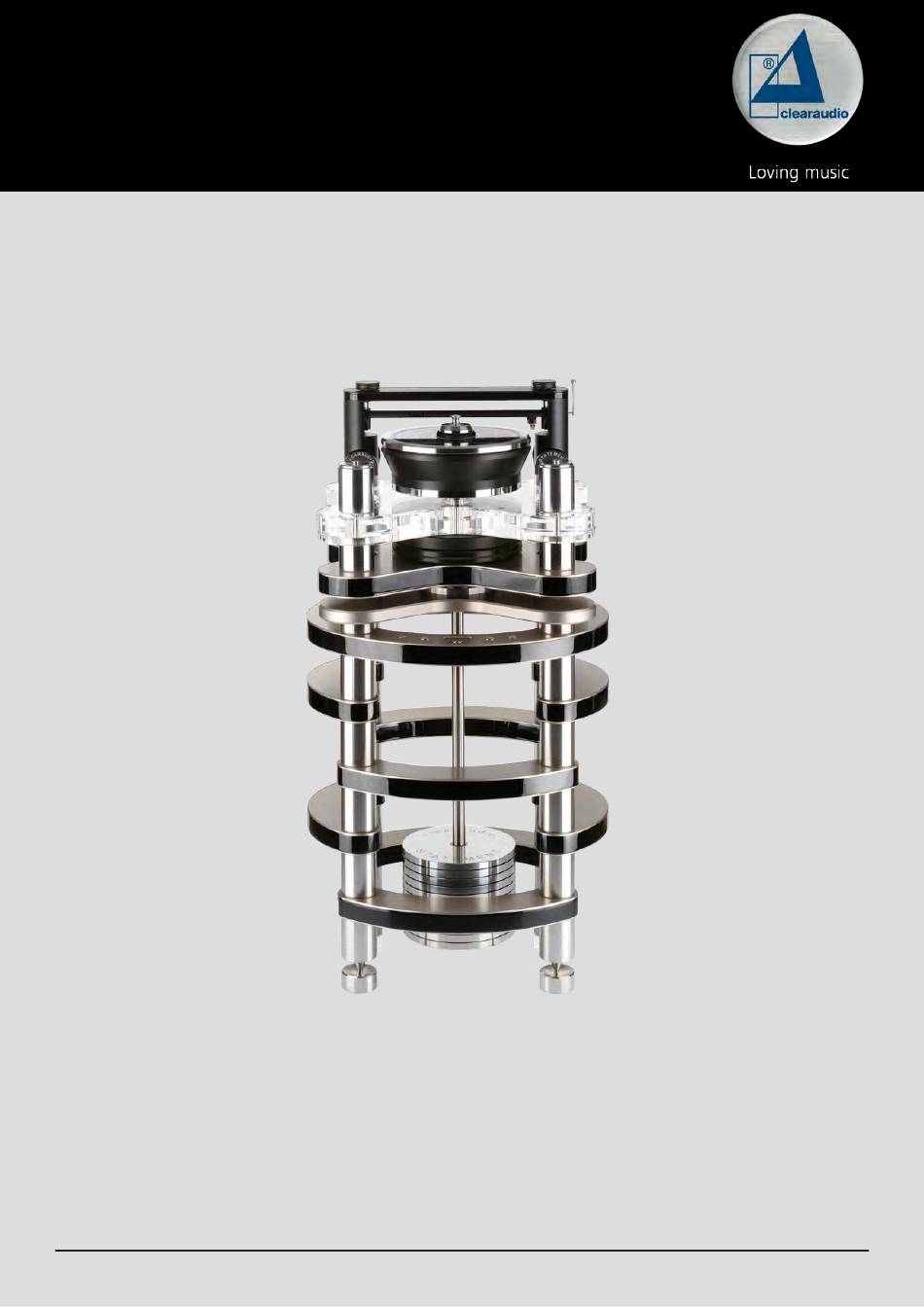

- Page 1 Statement V2 User manual Pic. similar © clearaudio electronic GmbH, 2022-11 Made in Germany...
- Page 2 You have purchased a state-of-the-art turntable, the , a world class product from Clearaudio electronic GmbH. The special resonance-optimised construction, the external motor-unit and the patented Clearaudio -bearing-technology guarantees absolute speed stability, pure pleasure in listening and reproduction absolutely faithful to the original.
- Page 3 5. Maintenance Never use agressive cleaning detergent. Do not use dry cloths for cleaning as this generates static electricity. Suitable cleaning and care products from Clearaudio are available from www.analogshop.de or from specialist retailers. The bearing of the turntable platter can be lubricated every 2 years with the oil provided.
- Page 4 Permanently high volume can lead to various types of hearing damage. Use high volume responsibly! IMPORTANT! Before it is fully assembled there are strong magnetic fields around the main bearing, these could interfere with heart pacemakers and so the Statement V2 should not be Statement V2 setup by anyone with a pacemaker.The turntable is extremely heavy and should not be assembled by anyone with back problems.
-
Page 5: Table Of Contents
User manual Contents 1. Packaging overview .......... 4 - 5 2. Construction overview ........6 3. Setup and operation ......... 7 - 15 4. Motor adjustment ..........16 5. Troubleshooting ..........17 6. Technical data ..........18 Warranty information ........... 19 - 20 Made in Germany Page 5... -
Page 6: Packaging Overview
Attention / Warning: IMPORTANT! Before it is fully assembled there are strong magnetic fields around the main bearing, these could interfere with heart pacemakers and so the Statement V2 should not be Statement V2 setup by anyone with a pacemaker.The turntable is extremely heavy and should not be assembled by anyone with back problems. - Page 7 User manual Bearing oil Bubble level gauges Acrylic cleaner Not shown: Two wooden blocks Screwdriver Not shown: User manual Not shown: Warranty card, Clearaudio Statement clamp certificate card (QCQ) Made in Germany Page 7...
-
Page 8: Construction Overview
User manual 2. Construction overview Pic. 1: Construction overview © clearaudio electronic GmbH, 2022-11 Page 8... -
Page 9: Setup And Operation
User manual 3. Set up and operation Statement V2 Select the position in which you will use the Statement V2 turntable. Place the turntable base in this position on the four supplied feet. Statement Pic. 2: Placing the Statement V2 Place the two wooden blocks beneath the base as shown. - Page 10 Be sure to place a felt mat between each metal disc, building the pendulum with three solid discs at the bottom, then six half-cut-away discs, then two more solid discs, finally adding Statement V2. the solid disc engraved with the words Clearaudio Disc engraved with Statement „Clearaudio...
- Page 11 User manual Set the cross shaped massive metal part through the spindle onto the four cork. Pic. 6.1: Placing the metal part Pic. 6: Placing the metal part Tighten the bearing to the shaft by tightening the screws in the bearing collar (8x). Pic.
- Page 12 Pic. 8: Lifting the upper part Remove the wooden blocks from beneath the turntable and carefully lower the upper section back onto the four cork damping plates. Pic. 9: Removing the wood spacers © clearaudio electronic GmbH, 2022-11 Page 12...
- Page 13 Pic. 10 : Removing the wood spacers Synthetic Bearing Oil Apply 3 to 4 drops of the Clearaudio (also available at www.analogshop.de Art. No. AC068) to the bearing spindle. Please apply 3 to 4 drps...
- Page 14 For the next step, please apply 3 to 4 drops of Synthetic Bearing Oil the Clearaudio also onto the main bearing spindle. Acrylic chassis Pic. 14: Oiling the main bearing spindle © clearaudio electronic GmbH, 2022-11 Page 14...
- Page 15 User manual Making sure that the circular cut-outs in the corners of the acrylic chassis are on the underside. Carefully (!) insert the bearing spindle into the bearing sleeve in the acrylic chassis. IMPORTANT! Be careful not to allow the magnets to snatch the bearing as you insert it.
- Page 16 Pic. 17: To lower the acrylic chassis Firmly screw the four stainless steel arm bases through the acrylic chassis into the four pillars of the floating chassis. Pic. 18: Setting the arm bases © clearaudio electronic GmbH, 2022-11 Page 16...
- Page 17 User manual Lower first the metal flywheel over the main bearing. In the next step lower the main platter on top of the metal flywheel, making sure that the dot on the top of the bearing and the platter are aligned. Pic.
-
Page 18: Motor Adjustment
To assembly the tonearm please refer to the instruction manual of the manufacturer. Statement V2 The setup of your turntable is now complete! Statement V2. Clearaudio wish you al lot of pleasure and musical enjoyment with your © clearaudio electronic GmbH, 2022-11 Page 18... -
Page 19: Troubleshooting
Check the stylus and have the cartridge checked by a specialist if necessary. Is the record or the stylus dirty or Clean the record / or the cartridge. Clearaudio damaged? offers many helpful accessories for care and cleaning. In the event of damage, we recommend an assessment by a specialist and, if necessary, an exchange. - Page 20 User manual Clean the record / or the cartridge. Clearaudio Is the record or the stylus dirty or damaged? offers many helpful accessories for care and cleaning. In the event of damage, we recommend an assessment by a specialist and, if necessary, Needle bounces an exchange.
-
Page 21: Technical Data
Approx. 690 x 620 x 1325mm (with TT1 tonearm) Manufacturer’s warranty: 10 years* * Provided that the warranty card is correctly completed and returned to Clearaudio, or your product is registered online at https://clearaudio.de/en/service/registration.php, within 14 days of purchase. Made in Germany Page 21... - Page 22 Le reçu ou la facture constituent des preuves suffisantes. DEUTSCH GARANTIE Bei Garantiefragen wenden Sie sich bitte zunächst an Ihren Clearaudio Händler. Heben Sie Ihren Kaufbeleg gut auf. WICHTIG! Die Angaben auf Ihrer Quittung erlauben uns die Identifizierung Ihres Gerätes und belegen mit dem Kaufdatum die Dauer Ihrer Garantie-Ansprüche.
- Page 23 ESPAÑOL GARANTIA Para obtener información acerca de la garantia póngase en contacto con su distribuidor Clearaudio. GUARDE SU RECIBO DE COMPRA Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá guardarlo en un lugar seguro y utilizarlo como referencia cuando tenga que hacer uso del seguro o se ponga en contacto con Clearaudio.
- Page 24 Handmade in Germany Clearaudio Electronic accepts no liability for any misprints. Technical specifications are subject to change or improvement without prior notice. Product availability is as long as astock lasts. Copies and reprints of this document, including extracts, require written consent from Clearaudio Electronic GmbH, Germany.
