Clearaudio Signature Instruction Manual

Hide thumbs

Advertisement

Table of Contents

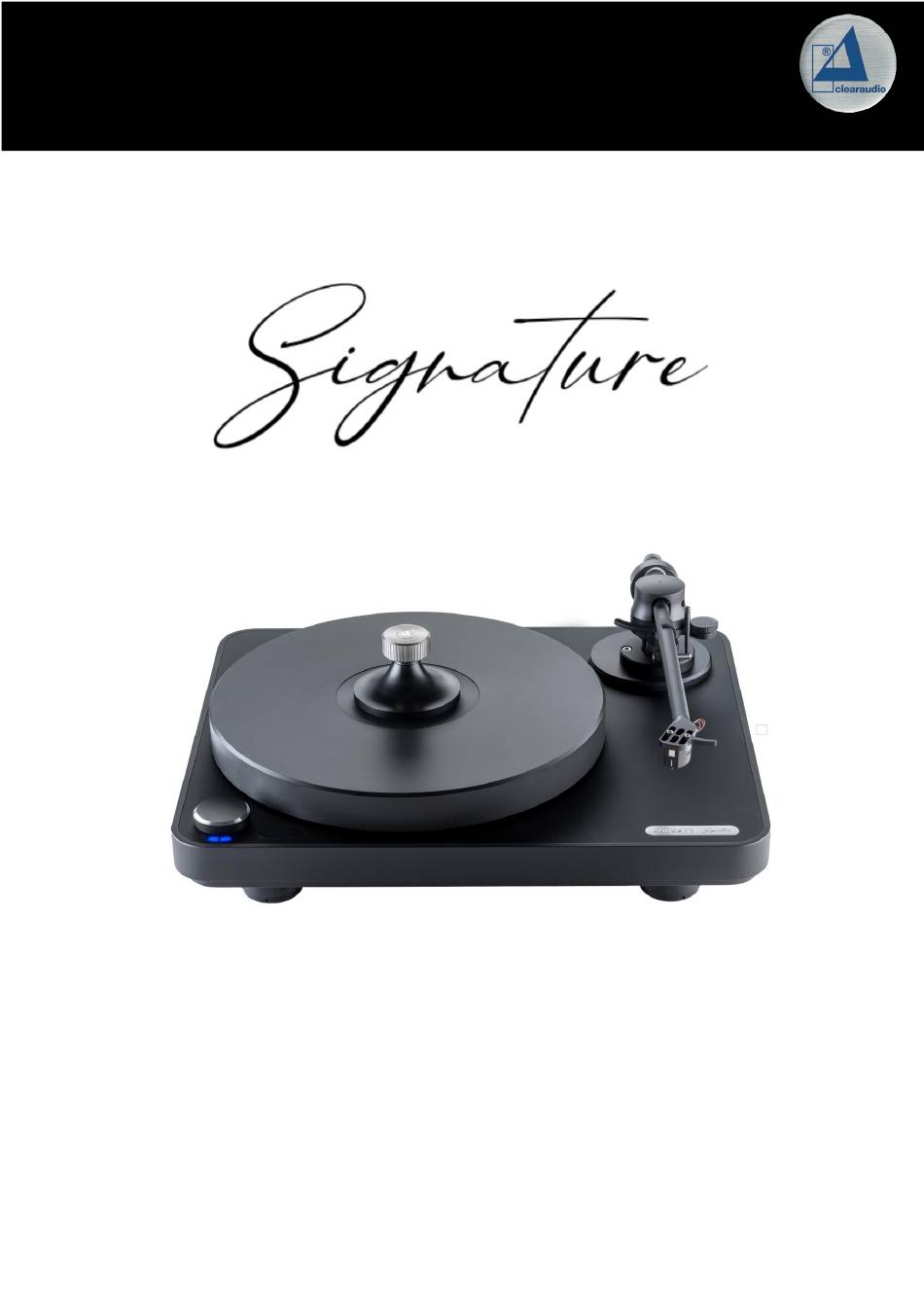

Clearaudio Signature Turntable
Instruction Manual
© clearaudio electronic GmbH
Made in Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Signature and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clearaudio Signature

Summary of Contents for Clearaudio Signature

  • Page 1 Clearaudio Signature Turntable Instruction Manual © clearaudio electronic GmbH Made in Germany...
  • Page 2 Clearaudio | Signature Turntable User Manual Dear Clearaudio Customer, The Clearaudio Signature is a special edition of the new Concept Signature, exclusively for the US market. It represents advancements in high-end performance with exceptional value. The Signature turntable celebrates Clearaudio’s 46 years as the leader in vinyl playback and Musical Surroundings 33 1/3 years in analog distribution.
  • Page 3 Not suitable for children! Scope of delivery may contain small parts that can be swallowed. 2. Intended use The Signature is a turntable for playing records. The intended use of the Signature in accordance with the information provided in the user manual only.
  • Page 4 Otherwise, serious damage can occur. Please also ensure that you fully retract the turntable feet. For any transportation of the Signature turntable, please ensure that the platter is packed with the upper surface facing downwards into the packaging.

  • Page 5: Table Of Contents

    Clearaudio | Signature Turntable User Manual CONTENTS 1. Packaging overview............... 7 2. List of components..............7 3. Set-up ................... 8 - 10 4. Initial operation and calibration of speed ......11 5. Important notes ..............12 - 13 6. Troubleshooting..............14 - 15 7.

  • Page 6: Packaging Overview

    Clearaudio | Signature Turntable User Manual 1. Packaging overview The Clearaudio Signature turntable is delivered in a customized packing to ensure its safe transport. Please retain the original packaging for any future transportation and shipping. Please see the list below to check the contents of your Clearaudio Signature turntable.

  • Page 7: Set-Up

    Clearaudio | Signature Turntable User Manual 3 Set-up. Setting up the Signature turntable is easy. The Signature turntable needs a set-up space of at least 17 x 14 inches. First take the Signature turntable chassis out of the package and place it on a suitable surface.
  • Page 8 Placing platter Please check with the bubble level gauge if your Signature turntable is in a level position. You can adjust each of the turntable’s feet to get the turntable level. Only if the turntable is in a level position you will get the best results with your turntable.
  • Page 9 3.5 Professional Power 12v Connect one end of the Professional Power 12v power supply provided to the power input terminal on the rear of the Signature turntable. Connect the Professional Power 12v with supplied IEC power cable to a live AC outlet.
  • Page 10 Clearaudio | Signature Turntable User Manual 3.6 Initial start Clearaudio has developed a special packaging for your Professional Power 12V to ensures a safe transportation. Please keep this original packing if you need to ship the unit. Take the device out of the box and set it up at the desired location.

  • Page 11: Initial Operation And Calibration Of Speed

    Control unit of the Signature 5.2 Calibration of speeds Thanks to the newly developed motor control, the Signature calibrates itself to always maintain the perfect speed. However, manual calibration is possible. This is particularly recommended if the turntable has not been in use for a long time, wearing parts (e.g.
  • Page 12 NOTES Page 12 © clearaudio electronic GmbH Made in Germany...
  • Page 13 NOTES Page 13 © clearaudio electronic GmbH Made in Germany...

  • Page 14: Troubleshooting

    6. Troubleshooting – Signature turntable If you have a problem with your Signature turntable, first check the possible causes to rule out incorrect operation. If the error persists, please contact your dealer! Never try to open the device and/or repair it yourself, this will void the warranty!
  • Page 15 Loving music Clean the record / or the cartridge. Clearaudio Is the record or the stylus dirty or damaged? offers many helpful accessories for care and cleaning. In the event of damage, we recommend an assessment by a specialist and, if necessary, an exchange.

  • Page 16: Technical Data

    7. Technical data – Signature turntable Construction details: • Resonance-optimised turntable. • Upper layer incorporates high-tech satined plastic compound. • Chassis comprises medium-density wood fiber with a satin black finish. • Bottom plate medium-density wood fiber • Height-adjustable turntable feet.
  • Page 17 Loving music 7. Technical data – Professional Power 12 Power supply: 110V AC 60Hz, max. 200mA (time delay fuse) Output: 12V, max. 500mA; fused (time delay fuse) Power consumption: In operation (LED on): 0 rpm > 1,1 watts 33,3 rpm > 1,4 watts 45 rpm >...
  • Page 18 RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase.
