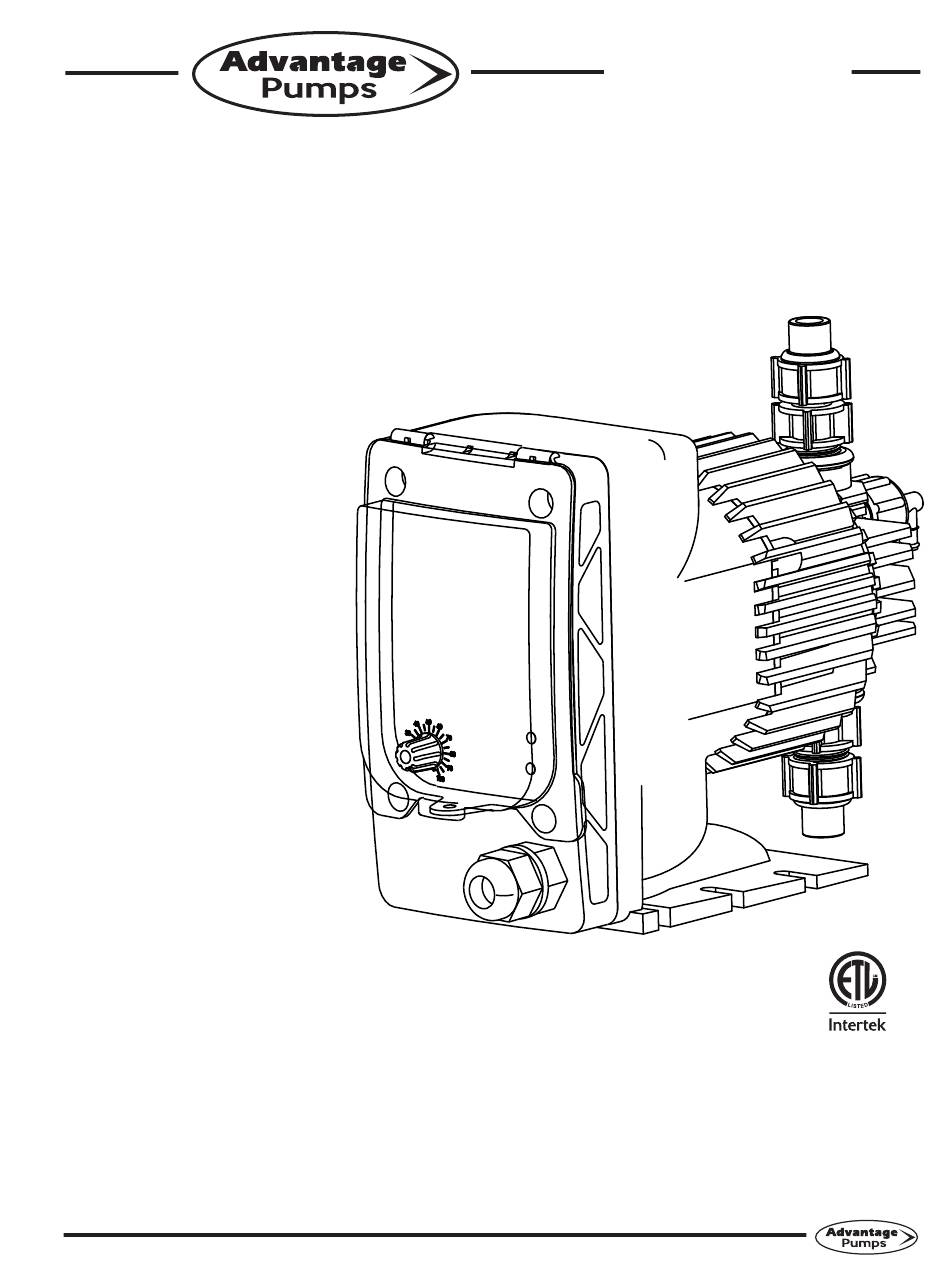

- Page 1 Manual MicroTron Series G Chemical Metering Pump Installation Maintenance Repair Manual Advantage Controls 4700 Harold-Abitz Dr. Muskogee, OK 74403 Phone: 800-743-7431 Fax: 888-686-6212 www.advantagecontrols.com 11/2022 email: support@advantagecontrols.com...
-
Page 2: Table Of Contents
Trouble Shooting Guide ................11 Manufacturer’s Product Warranty Advantage Controls warrants units of its manufacture to be free of defects in material or workmanship. Liability under this policy extends for 24 months from date of installation. Liability is limited to repair or replacement of any failed equipment or part proven defective in material or workmanship upon manufacturer’s... -
Page 3: Introduction
Introduction This instruction manual covers all facets of operation of the Advantage Controls MicroTron electronic solenoid metering pump, including unpacking, mounting, electrical plumbing connection, start-up. Safety, maintenance and repair, warranty, and factory information are also provided. Please read this manual completely before proceeding. Observe safety protocols and heed all warnings and precautions. -
Page 4: Unpacking
The Advantage MicroTron pump has been shipped to you as a complete metering package, ready for installation. If shipping carton shows any signs of damage, notify the shipping company immediately upon receipt. Advantage Controls cannot be held responsible for damage from shipping. Unpack the carton and insure the following items are present:... -
Page 5: Plumbing
Plumbing 1. Connections The MicroTron™ pump uses carefully matched components to achieve a predictable metering output. This predictability can only be maintained if all fitting sizes remain unaltered. Do not attempt to reduce tubing size. All tubing connection should be double checked to insure against leakage. - Page 6 Suction lift Flooded Suction Not recommended Foot valve installation A weight is provided to hold the tubing and foot valve in a vertical position at the bottom of the tank. Do not allow the foot valve to lay horizontally in the chemical container.
-
Page 7: Start-Up
Back pressure function permits metering into atmospheric discharge (open container) without overpumping. Line check to permit the removal of discharge tubing without release of system fluid from the pipe that the injection valve is threaded into. Priming/Degassing Valve Connection Connect the clear vinyl tubing to the outlet of the bleed or priming valve. Position the free end of this tube in the chemical container, above the fluid level. -
Page 8: Maintenance
Maintenance The Advantage MicroTron™ pump is designed for long service life with minimum maintenance. If for any reason, maintenance is necessary or desirable, the MicroTron™ pump is easily maintained. Before any maintenance or service is performed, observe the following precautions: 1. -
Page 9: Liquid End Diagram
C. Liquid End Diagram C. Liquid End Diagram Item Description Item Description Complete Head Kit Complete Head Kit Injection Valve Injection Valve Foot Valve Foot Valve Suction Valve Suction Valve Discharge Valve Discharge Valve Bleed Valve Assembly Bleed Valve Assembly Pump Head Pump Head Pump Diaphragm... -
Page 10: Replacement Parts
D. Replacement Parts Getting the right materials of construction for your spare parts is easy. Using positions 7-10 of the pump model number, example: G130X1-KFCV. Find the assembly needed and add the codes of your pump’s liquid end after the standard prefix part number for the assembly. Part Assemblies Item Description... -
Page 11: Trouble Shooting Guide
VII. Trouble Shooting PROBLEM CAUSE REMEDY Pump does not achieve Air trapped in suction line Straighten suction line so as to eliminate or maintain prime high spots. Foot valve contaminated or improperly Inspect foot valve screen and assure that installed foot valve is in a vertical position below fluid level. - Page 12 Get the Advantage in Water Treatment Equipment Advantage Controls can give you the Advantage in products, knowledge and support on all of your water treatment equipment needs. Cooling Tower Controllers Boiler Blow Down Controllers Blow Down Valve Packages Solenoid Valves...
